Description

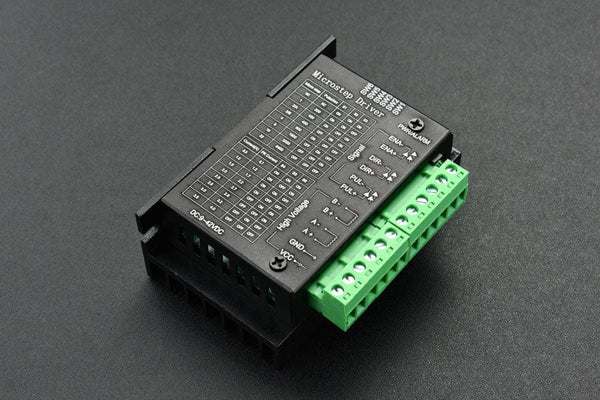

The TB6600 Stepper Motor Driver is a professional-grade two-phase hybrid stepper motor driver designed for CNC machines, automation systems, robotics, and precision motion control applications. It offers stable performance, high torque output, and smooth motor operation, making it suitable for a wide range of industrial and DIY applications.
Compatible with Arduino and other microcontrollers capable of generating 5V digital pulse signals, the TB6600 driver supports precise speed and direction control for stepper motors. It operates with a wide input voltage range of 12V to 48V DC and can deliver up to 5A peak output current, making it suitable for driving various two-phase hybrid stepper motors.
The driver features configurable current and microstepping settings through onboard DIP switches, allowing users to optimize motor performance based on application requirements. High-speed optocoupler isolation on all signal inputs improves noise immunity and enhances operational reliability in electrically noisy environments.
The semi-enclosed industrial-grade housing provides better environmental protection and heat dissipation, while the automatic idle-current reduction feature helps reduce motor heating and power consumption during standby operation.
Note: Product casing may contain model markings such as YS-DIV268N-5A or HY-DIV268N-5A. Functional performance remains the same.
Features
- Professional two-phase hybrid stepper motor driver
- Compatible with Arduino and other 5V pulse controllers
- Wide operating voltage range: 12V to 48V DC
- Peak output current up to 5A

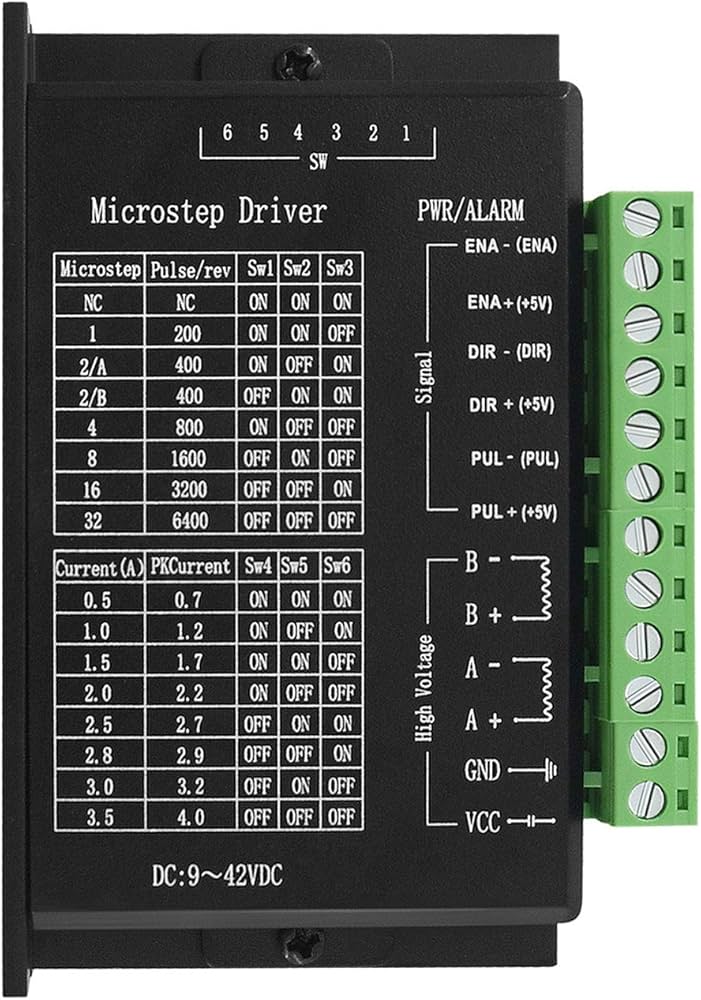

- Configurable output current settings via DIP switches
- Supports multiple microstepping subdivision modes
- High-speed optocoupler isolated signal inputs
- Supports speed and direction control
- Automatic idle-current reduction function
- Industrial semi-enclosed housing design
- Improved anti-interference performance
- Suitable for 42 and 57 series two-phase stepper motors
Applications
- CNC machines
- Laser engraving systems
- 3D printers
- Industrial automation systems
- Robotics projects
- Motion control applications
- DIY CNC projects
- Precision positioning systems
Package Includes
- 1 × TB6600 CNC Stepper Motor Driver
Technical Specifications
| Parameter | Value |
|---|---|
| Model Series | CNC Oriented, TB Series |
| Motor Type Supported | Two-Phase Hybrid Stepper Motor |
| Operating Voltage | 12V to 48V DC |
| Input Voltage | 12V to 48V DC |
| Supply Current | 1A to 5A |
| Output Current | 0.2A to 5A |
| Maximum Output Power | 160W |
| Microstepping Modes | Up to 32 Subdivision Modes |
| Control Interface | Pulse and Direction Signal |
| Signal Isolation | High-Speed Optocoupler Isolation |
| Operating Temperature | -10°C to 45°C |
| Length | 105 mm |
| Width | 75 mm |
| Height | 35 mm |
| Weight | 220 g |
