Description
The TL Smoother Addon Module is designed to improve stepper motor performance in 3D printers and motion control systems by reducing vibration, motor noise, and uneven movement. It is commonly used with stepper motor drivers such as DRV8825 and A4988 to minimize ripple effects and improve print quality.
The module works by smoothing the current signal delivered to the stepper motor through onboard flyback diodes, helping reduce mechanical chatter and eliminating irregular wave patterns during low-speed operation. This results in smoother motor movement, quieter operation, and improved surface finish in 3D printed models.
The TL Smoother is especially effective in Delta-style 3D printers and other high-speed motion systems where stepper motor vibration can affect printing accuracy. It also provides protection against inductive voltage spikes generated by motors when the driver is unpowered.
Compatible with DRV8825 and A4988 stepper motor drivers, this module can be easily installed between the controller board and the stepper motor driver using the included cable connections.
Note: TL Smoother modules may provide limited improvement when used with advanced Trinamic drivers featuring technologies such as SpreadCycle and StealthChop, as these drivers already include built-in motor smoothing features.
Features
- Reduces stepper motor vibration and mechanical chatter
- Improves smoothness of motor movement
- Helps reduce motor noise during operation
- Enhances print quality in 3D printers
- Effective for Delta-style 3D printers
- Compatible with DRV8825 and A4988 drivers
- Integrated flyback diode protection
- Protects against inductive voltage spikes
- Simple plug-and-play installation
- Compact and lightweight design
- Suitable for 3D printers and CNC systems
Applications
- 3D printers
- Delta-style 3D printers
- Cartesian 3D printers
- CNC machines
- Stepper motor vibration reduction
- Motion control systems
- DIY automation projects
- Embedded electronics projects
Package Includes

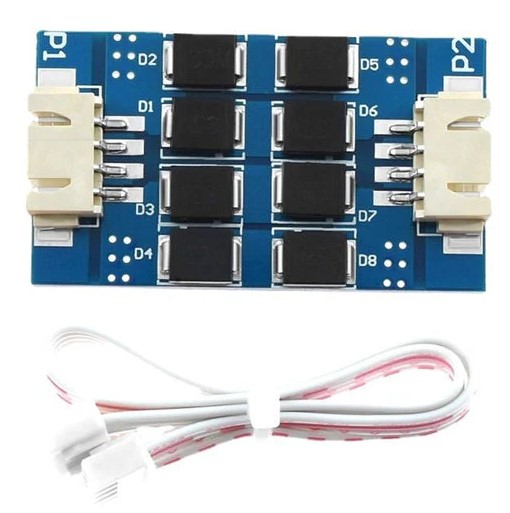

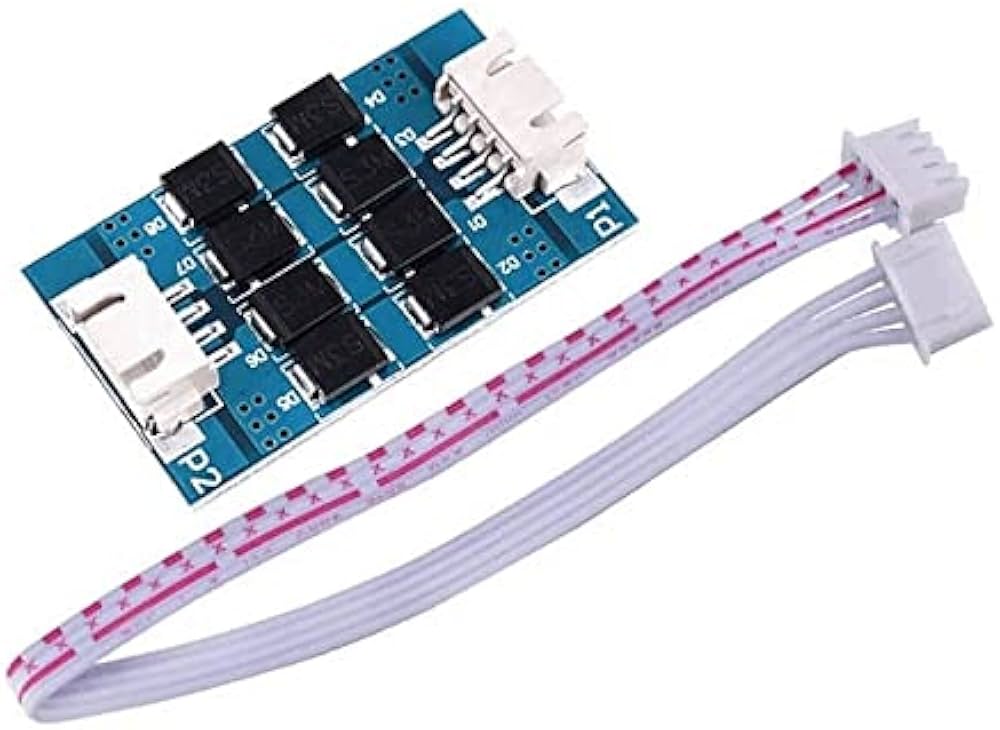

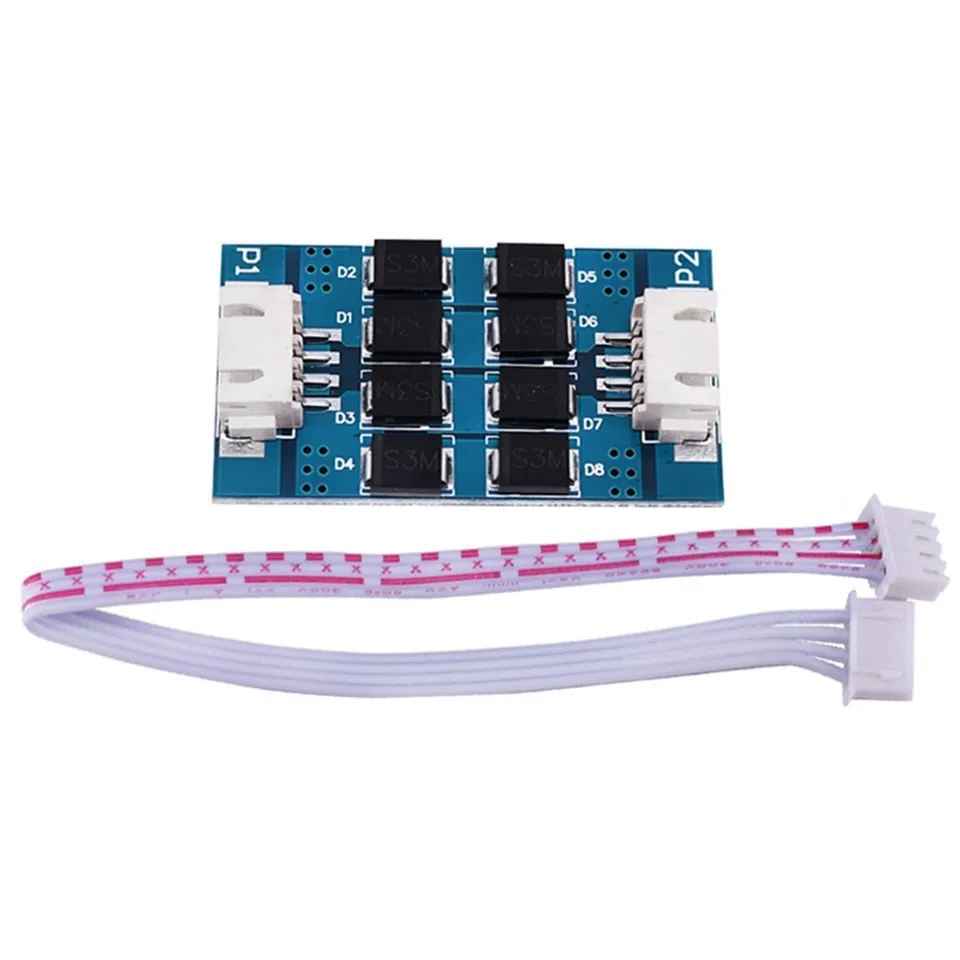

- 1 × TL Smoother Module
- 1 × Connection Cable
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Flyback Diodes | 8 |
| Compatible Drivers | A4988, DRV8825 |
| Cable Type | 4-Pin Female to 4-Pin Female |
| Mounting Type | Ø2.3mm Mounting Hole on Each Corner |
| DC Blocking Voltage (VR) | 1000V |
| Reverse Voltage (VRMS) | 700V |
| Rectified Output Current | 3A @ TT = +75°C |
| Dimensions | Approx. 50 × 25 mm |
| Weight | 10 g |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 10 × 7 × 1 cm |
