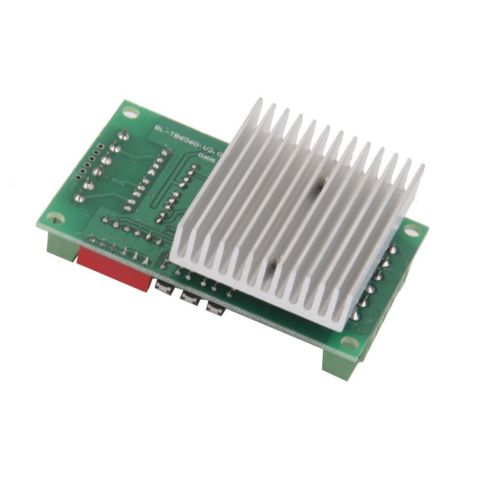

TB6560 3A CNC Router Single Axis Stepper Motor Driver Board
Description
The TB6560 3A CNC Router Single Axis Stepper Motor Driver Board is a reliable and high-performance motor control solution designed for CNC machines, automation systems, robotics, and precision motion control applications. Based on the original TB6560AHQ driver chip, the module provides stable and efficient control of two-phase stepper motors with output current up to 3A.
The driver board supports multiple microstepping modes including full-step, half-step, 1/8-step, and 1/16-step operation, enabling smoother motor movement and improved positioning accuracy. The integrated high-speed optocoupler isolation enhances signal integrity and reduces electrical interference during operation.
The module features adjustable current settings and configurable semi-flow modes, allowing optimized motor performance based on application requirements. A large aluminum heatsink ensures effective heat dissipation for stable operation during continuous use.
Built-in protection circuits including undervoltage shutdown, thermal shutdown, and overcurrent protection improve operational safety and help protect the driver and connected motor systems from electrical damage.
The TB6560 driver is suitable for controlling 2-phase stepper motors including 4-wire and 6-wire motors commonly used in CNC routers, engraving machines, and automated positioning systems.
Features
- Based on original TB6560AHQ stepper motor driver IC
- Single-axis CNC stepper motor controller
- Supports full-step, half-step, 1/8-step, and 1/16-step modes
- Adjustable motor current settings
- Automatic semi-flow current adjustment
- High-speed optocoupler signal isolation
- Large heatsink for effective thermal management
- Built-in undervoltage, overcurrent, and thermal protection
- Suitable for 2-phase, 4-wire, and 6-wire stepper motors
- Stable and reliable motor control performance
- Easy setup with onboard printed configuration instructions
Applications
- CNC router machines
- Laser engraving systems
- Stepper motor control applications
- Automation systems
- Precision positioning equipment
- DIY CNC projects
- Industrial motion control systems
Tutorial
Tutorial available for interfacing and operating the TB6560 Driver Board with Arduino and compatible controller systems.
Package Includes
- 1 × TB6560 3A CNC Router Single Axis Stepper Motor Driver Board
Specifications
| Parameter | Value |
|---|---|
| Model Series | CNC Oriented, TB Series |
| Operating Voltage | 10V – 35V DC |
| Current Rating | 3A |
| Supported Motor Type | 2-Phase Stepper Motor |
| Supported Wiring | 4-Wire / 6-Wire Stepper Motors |
| Microstepping Modes | Full, Half, 1/8, 1/16 Step |
| Excitation Modes | Synchronizing, Half Step, 1/8 Step, 1/16 Step |
| Signal Isolation | 6N137 High-Speed Optocoupler |
| Protection Features | Undervoltage, Overcurrent, Thermal Shutdown |
| Dimensions (L × W × H) | 50 × 75 × 35 mm |
| Weight | 72 g |
| Shipping Weight | 0.078 kg |
| Shipping Dimensions | 6 × 8.5 × 4.5 cm |
