Description

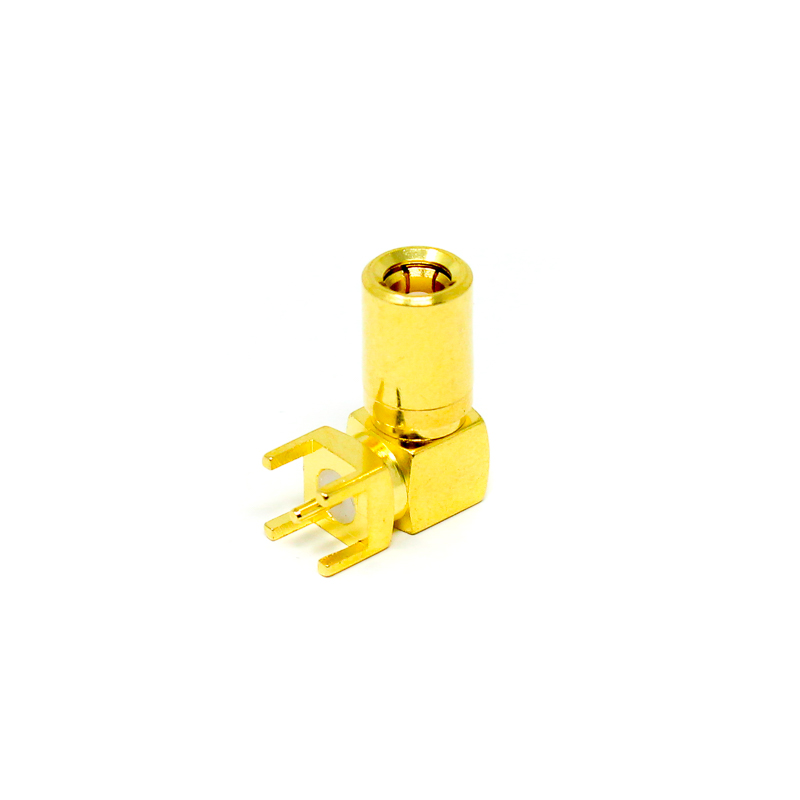

The SMB RF Coax Angled Male Connector is a high-performance, compact RF interface designed for professional PCB integration. Featuring a 90° right-angle orientation, this connector is specifically engineered for high-density electronic assemblies where vertical clearance is limited. The SMB (SubMiniature version B) interface utilizes a convenient snap-on coupling mechanism, allowing for quick and tool-free installation while maintaining a secure and stable connection.
Designed for reliability and signal integrity, this connector supports broadband performance with low signal reflection up to 4 GHz. The construction features a high-quality gold-plated copper body, providing excellent conductivity and long-term protection against corrosion. Built to comply with rigorous military-grade standards (MIL-STD-202) for vibration and corrosion, this connector is an ideal choice for demanding applications in aerospace test stands, medical telemetry, industrial M2M communications, and wireless networking hardware.

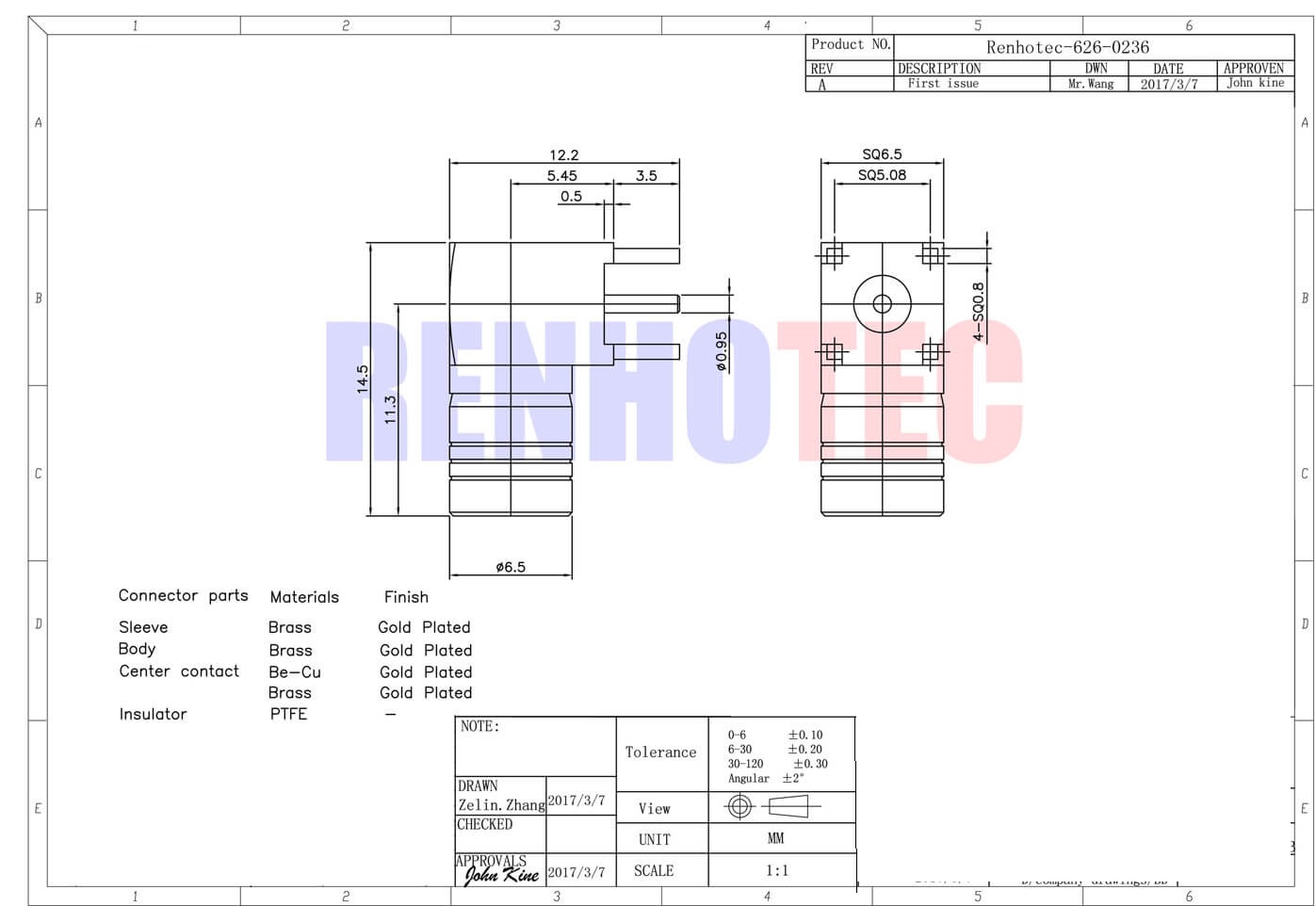

Note: Refer to the schematic image for detailed PCB footprint and through-hole mounting dimensions to ensure proper alignment during installation.
Features
- Design: SMB Male Plug, Right-Angled (90°)
- Mounting: Through-hole PCB mount with solder termination
- Coupling: Snap-on design for rapid, secure connection/disconnection
- Performance: Broadband RF performance with low signal reflection
- Construction: Gold-plated copper body for superior conductivity
- Reliability: Meets MIL-STD-202 standards for vibration and corrosion resistance
Benefits
- Right-angle profile optimizes space in compact electronic enclosures
- Gold plating ensures reliable electrical contact and prevents oxidation
- Snap-on coupling eliminates the need for threaded assembly tools
- Durable build supports over 500 mating cycles
- High dielectric strength ensures safety and signal stability
Applications
- Wireless Base Stations and Cellular Systems
- GPS Tracking and Commercial Vehicle Telemetry
- Aerospace and Defense Test Equipment
- Medical Telemetry and Monitoring Systems
- WIFI Routers and Radio Communication Boards
- Industrial Process Control and Instrumentation
- M2M (Machine-to-Machine) Communication Modules
Package Includes
- 1 x SMB RF Coax Angled Through Hole Male for PCB Mount
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Right Angle (90°) |
| Gender | Male (Plug) |
| Mounting Type | PCB Mount (Through-Hole) |
| Termination Style | Solder Type |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance | 50 Ω |
| Frequency Range | 0 to 4 GHz |
| Operating Temperature | -65°C to +155°C |
