Description

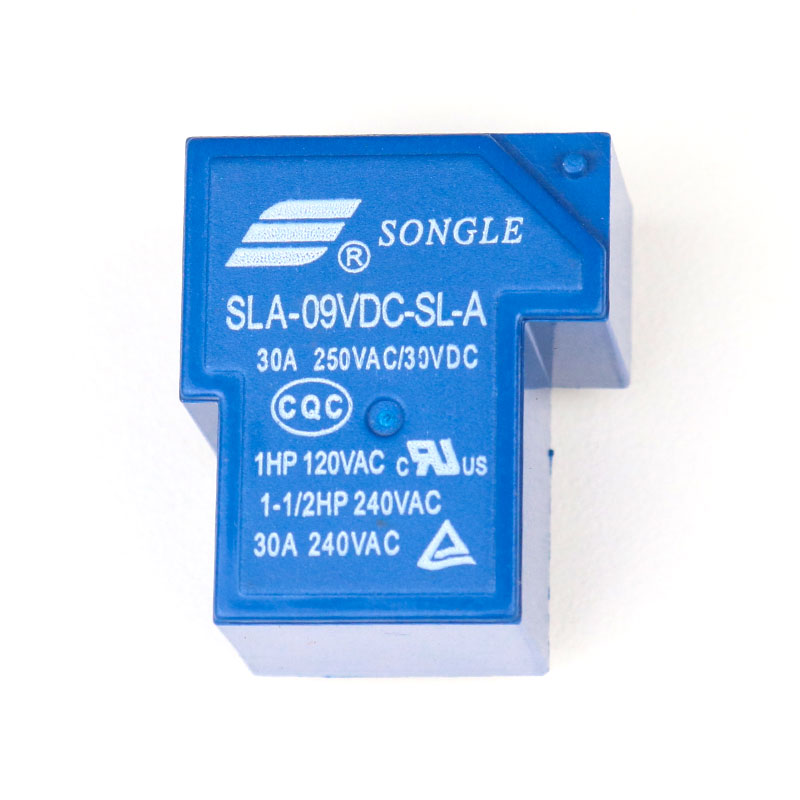

The SLA-09VDC-SL-A Power Relay is a robust 4-pin electromechanical switch designed to handle high-power loads. This relay allows you to control high-current devices—up to 30A—using a low-power control signal from a microcontroller such as an Arduino, ESP32, or Raspberry Pi.
Whether you are automating household appliances, managing high-power motor loads, or building industrial control systems, this relay provides the reliability and isolation needed to keep your electronics safe while switching significant electrical power.
Package Includes
- 1 x SLA-09VDC-SL-A 4Pin 30A Power Relay
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 9V DC |
| Switching Capacity | 30A |
| Supply Current | 0.093A |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 26.85 x 31 x 19.7 mm |
| Weight | 24g |
| Shipping Weight | 0.027 kg |
