Description

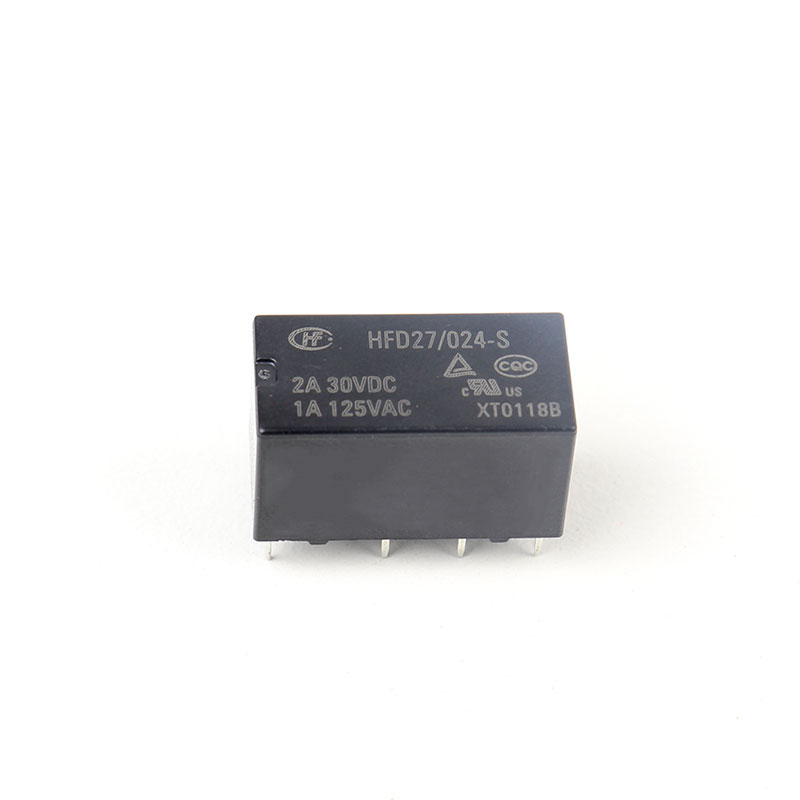

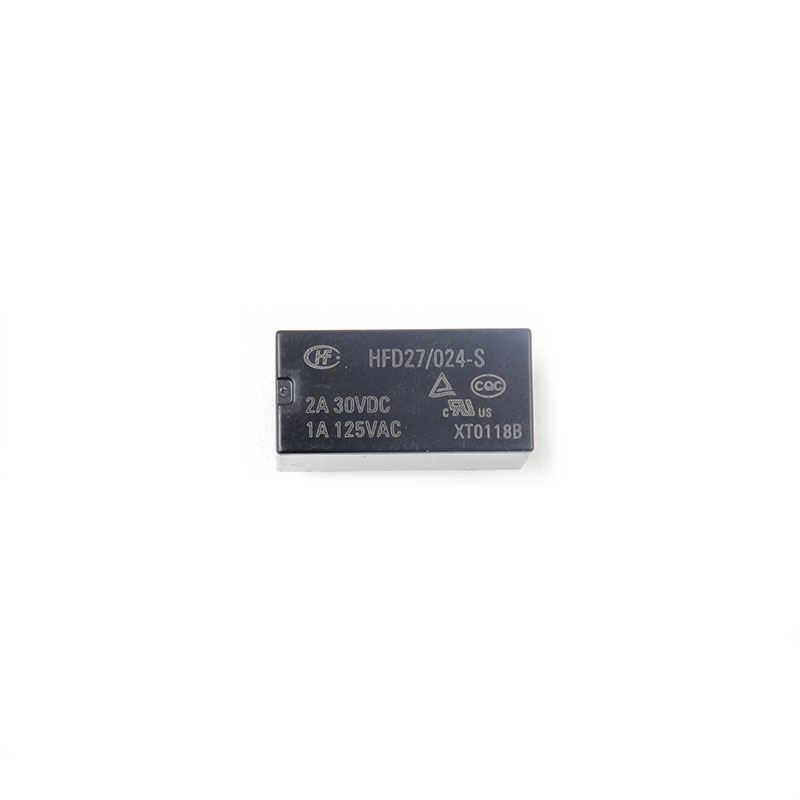

The 24V Subminiature DPDT Relay is a high-precision, dual-channel switching component designed for compact electronic applications. Featuring 2 bifurcated contacts and a 2 Form C configuration, this relay provides exceptional reliability and contact stability. Its epoxy-sealed construction and Class A insulation system ensure durability and performance in demanding environments.
This subminiature relay is an excellent choice for automation, control systems, and communication equipment where space is limited but high switching reliability is required.
Features
- Configuration: 2 Form C (DPDT) dual-channel relay.
- Bifurcated Contacts: Ensures superior connection reliability.
- High Capacity: Robust switching capacity of up to 125VA/60W.
- Durable Design: Epoxy-sealed for protection against environmental factors.
- Insulation: Features a Class A insulation system for safety and longevity.
Package Includes
- 1 x 24V Subminiature DPDT Relay
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 12 ~ 24 V DC |
| Max Switching Voltage | 240V AC / 120V DC |
| Max Operating Current | 2 A |
| Supply Current | 0.2 A |
| Operating Temperature | -40°C to +80°C |
| Dimensions | 20 x 10 x 11 mm |
| Weight | 5 g |
