(SPIDER Automation) Adafruit Non-Latching Mini Relay FeatherWing | Feather-Compatible, 250V AC | 2A Switching, Screw Terminals

SPIDER Automation Adafruit Non-Latching Mini Relay FeatherWing | 250V AC 2A Relay Module | For Feather-Based Load Control

Description

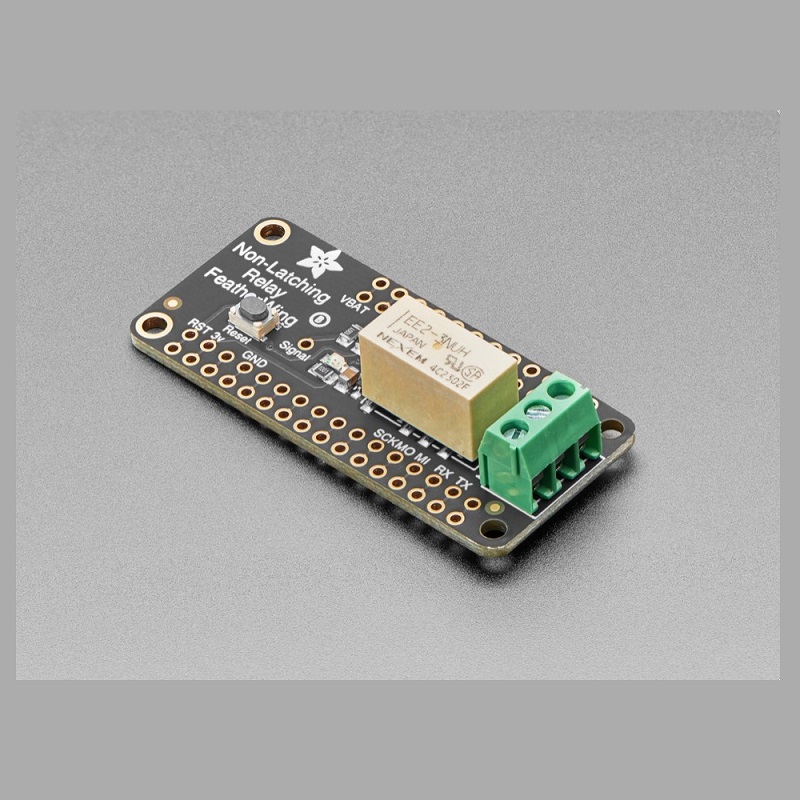

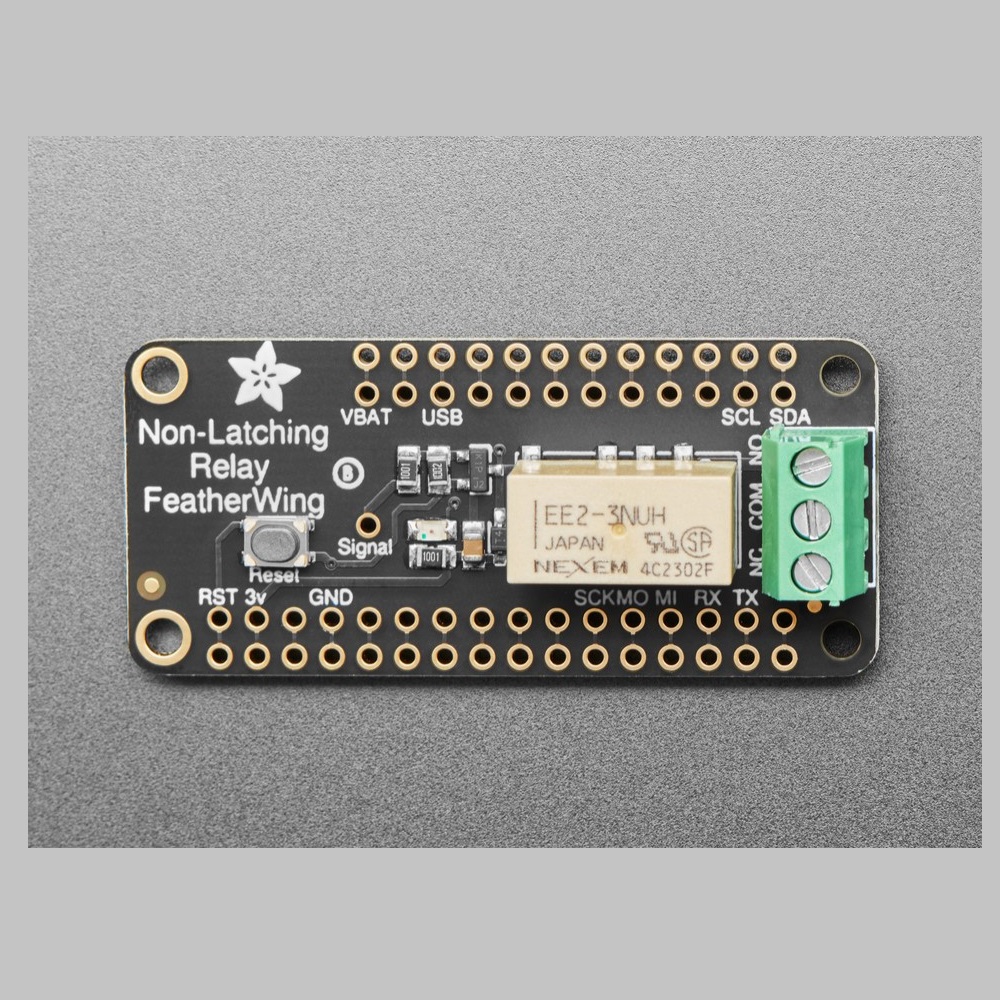

The Adafruit Non-Latching Mini Relay FeatherWing is a compact relay expansion board designed to add electrically controlled switching capability to compatible Adafruit Feather development boards. It allows a Feather-based system to control connected electrical loads such as lamps, fans, solenoids and other small appliances within the relay’s specified electrical ratings.

This is a non-latching relay configuration with a dedicated SET control pin. In its default state, the relay mechanically connects COM to NC (Normally Closed) while the NO (Normally Open) contact remains disconnected. When the SET pin is pulled high, the relay changes state, mechanically connecting COM to NO and disconnecting NC.

When the relay is active, the integrated red LED provides visual status indication and the relay coil consumes approximately 50mA to remain energized. Because it is a non-latching design, loss of power causes the relay to return to its default mechanical state. The FeatherWing can be stacked onto a Feather board using compatible Feather Stacking Headers or Feather Female Headers.

Key Features

• FeatherWing Form Factor: Designed for stacking with compatible Adafruit Feather boards.
• Non-Latching Operation: Relay maintains its active state while the coil remains energized and returns to its default state when power is lost.
• Single SET Control: Dedicated SET input provides straightforward control of relay activation.
• COM/NC Default State: In the default state, COM is mechanically connected to NC.
• COM/NO Active State: When activated, COM is mechanically connected to NO and NC is disconnected.
• 250V AC Rating: Supports switching applications within the supplied maximum voltage specification.
• 2A Maximum Current: Rated for switching loads up to the specified maximum current.
• Red Status LED: Provides visual feedback when the relay is active.
• Approx. 50mA Coil Consumption: The relay consumes approximately 50mA while energized.

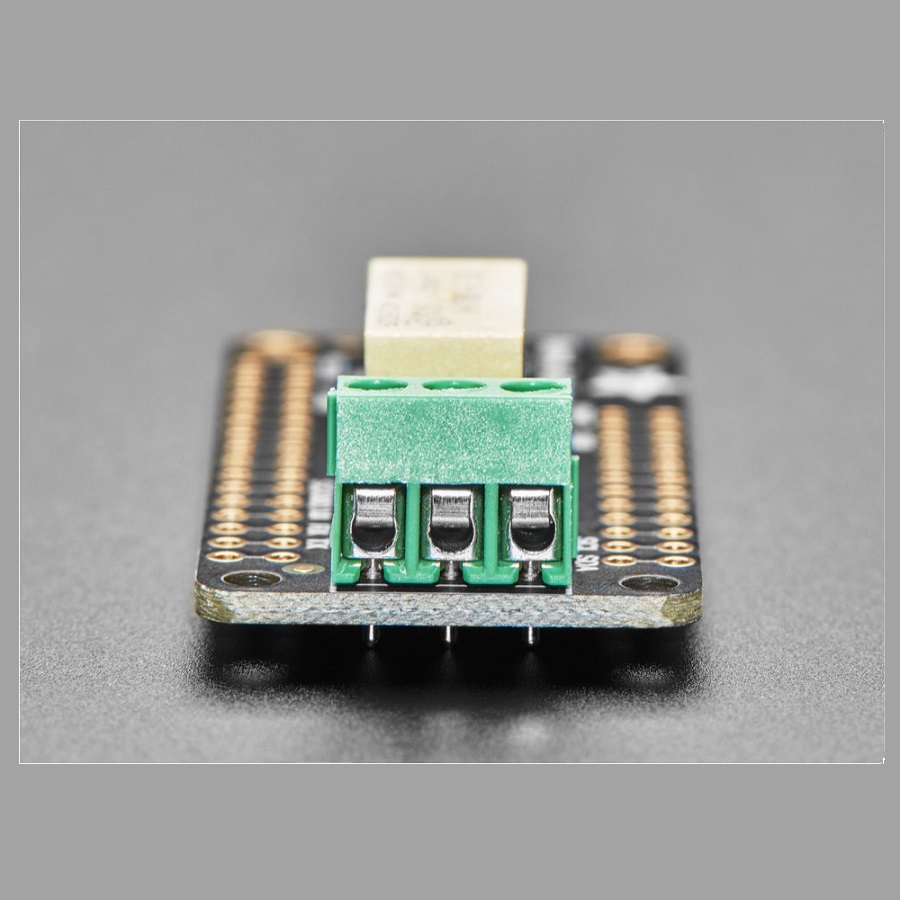

• Screw Terminal Blocks: Provides convenient connection points for switched load wiring.
• Stackable Design: Can be installed above a compatible Feather using Feather stacking or female headers.
• Compact Construction: Space-saving design helps maintain a compact Feather-based control system.

Benefits

• Electrical Load Control: Adds relay-based switching capability to Feather-powered control systems.
• Simple Integration: FeatherWing format makes it convenient to combine relay control with compatible Feather boards.
• Clear Operating Status: Integrated LED makes relay activation easy to identify during development and operation.
• Convenient Wiring: Screw terminals simplify connection of external switched loads.
• Predictable Power-Off Behavior: Non-latching operation returns the relay to its default state when power is removed.
• Compact Installation: Stacking architecture helps reduce the footprint of Feather-based control hardware.

Applications

• Lamp Control: Switching compatible lighting loads from a Feather-based controller.
• Fan Control: Controlling suitable electrical fans and similar loads.
• Solenoid Control: Providing relay switching for compatible solenoid-based systems.
• Embedded Automation: Adding electrically isolated mechanical switching capability to Feather-based control systems.
• Prototype Control Systems: Useful for development and testing of relay-controlled hardware.
• Appliance Switching: Suitable for switching compatible small electrical appliances within the specified ratings.

Package Includes

• 1 × Adafruit Non-Latching Mini Relay FeatherWing

Technical Specifications
