(SPIDER Automation) Sipeed LicheeRV Nano (WE) SG2002 | RISC-V Linux Development Board | Wi-Fi 6 & NPU

Sipeed LicheeRV Nano (WE) SG2002 | RISC-V Linux Development Board | Wi-Fi 6 & NPU

Description

The (SPIDER Automation) Sipeed LicheeRV Nano (WE) is a breakthrough thumb-sized RISC-V Linux development board that packs professional-grade peripheral resources into a remarkably small 22x36mm footprint. Designed to accelerate the popularization of the RISC-V ecosystem, it significantly surpasses previous ARM-based alternatives in both price and technical specifications.

Driven by the SOPHGO SG2002 SoC—featuring a 1GHz RISC-V C906 core alongside 256MB of integrated DDR3 RAM—the board provides a robust platform for running Linux distributions such as Buildroot and Debian. With built-in NPU acceleration, dual-band Wi-Fi 6, wired Ethernet, MIPI camera/display interfaces, and breadboard-compatible GPIO headers, the LicheeRV Nano is the ultimate pocket-sized workstation for edge AI, IoT prototyping, and embedded vision projects.

Key Features

• Powerful SoC Architecture: Powered by the SOPHGO SG2002 featuring a 1GHz RISC-V C906 core and a secondary 8051 low-power core.
• Integrated Memory & Storage: Includes 256MB (2Gbit) of onboard DDR3 RAM with boot support via TF (MicroSD) card or SD NAND.
• Edge AI NPU Engine: Dedicated Neural Processing Unit supporting INT8 and BF16 operations for machine learning inferencing.
• Next-Gen Wireless & Wired Networking: Integrated dual-band Wi-Fi 6, Bluetooth 5.4, and a 100Mbps Ethernet port.

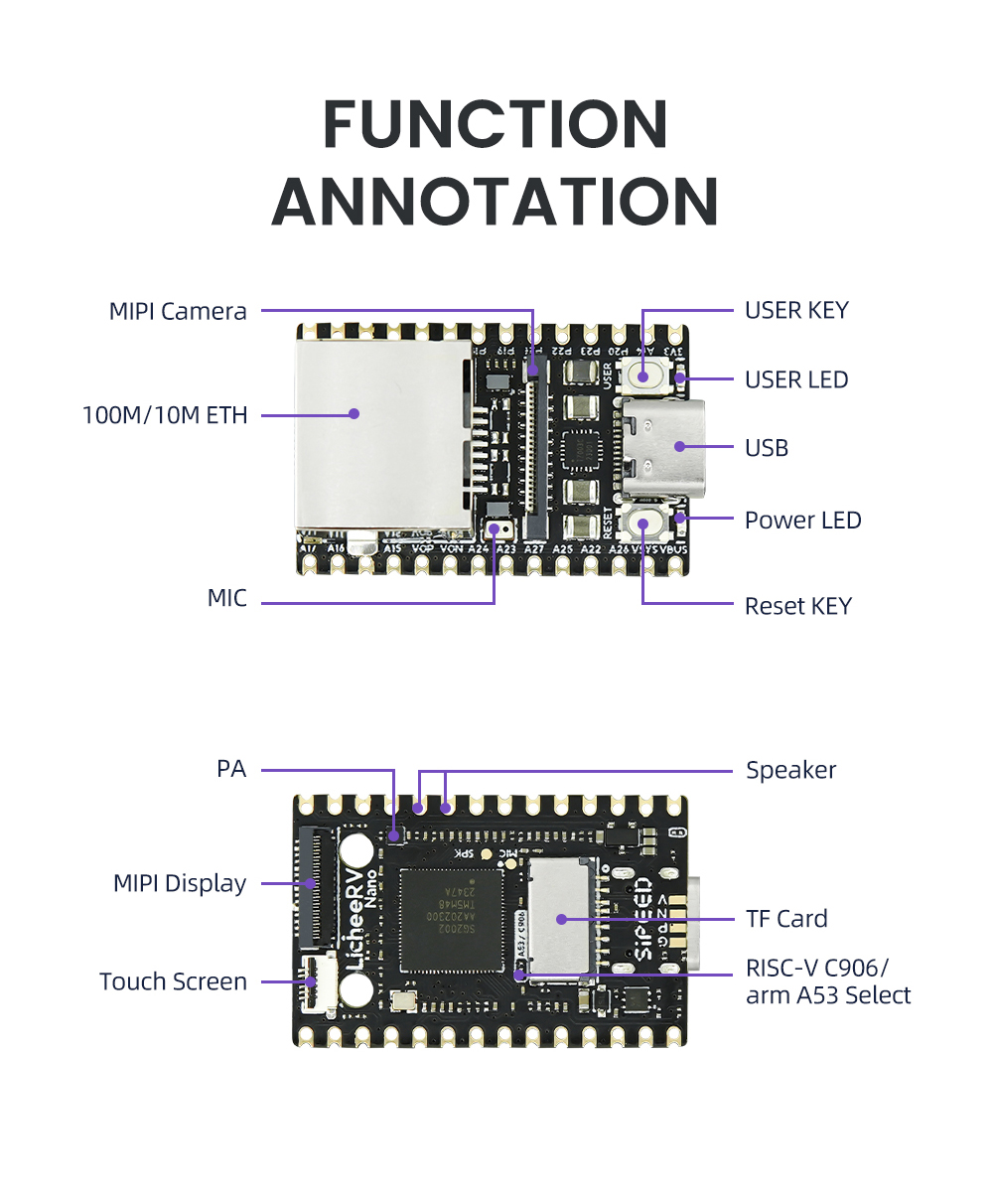

• Rich Multimedia Interfaces: Supports 4-lane MIPI CSI camera input and 2-lane MIPI DSI display output with capacitive touch screen support.
• Audio & Expansion: Features an onboard MEMS microphone, 1W speaker amplifier driver, and 2 x 14-pin breadboard-friendly headers.

Benefits

• Ultra-Compact Form Factor: Measuring only 22x36mm, it fits easily into tight enclosures, wearables, and portable hardware designs.
• Full Linux Environment: Run Buildroot Linux, Debian, or Fedora for sophisticated software development and scripting.
• Local AI Vision Processing: Deploy computer vision and object recognition models directly at the edge without cloud connectivity.
• Comprehensive Connectivity: Seamlessly interface with sensors, displays, cameras, and network routers out of the box.
• Cost-Effective RISC-V Platform: High performance-to-price ratio makes it ideal for education, research, and commercial prototyping.
• User-Friendly Controls: Includes dedicated Power LED, User LED, and physical RST and BOOT buttons for hassle-free debugging.

Applications

• Edge AI & Machine Vision: Smart cameras, local object detection, and automated visual inspection nodes.
• IoT & Smart Home Gateways: Wi-Fi 6 and Ethernet-enabled connected devices communicating over local networks.
• Portable Robotics: Compact control boards for smart rovers, drones, and automated mechanical fixtures.
• Embedded Audio Systems: Voice-activated modules leveraging the onboard MEMS mic and speaker amplifier.
• RISC-V Education & R&D: Exploring open-source hardware architectures, Linux kernel porting, and embedded C programming.
• Wearable & Handheld Tech: Space-constrained gadgets requiring full Linux capabilities.

Package Includes

• 1 x Sipeed LicheeRV Nano (WE) SG2002 WIFI6 Ethernet AI Visual RISC-V Linux Development Board

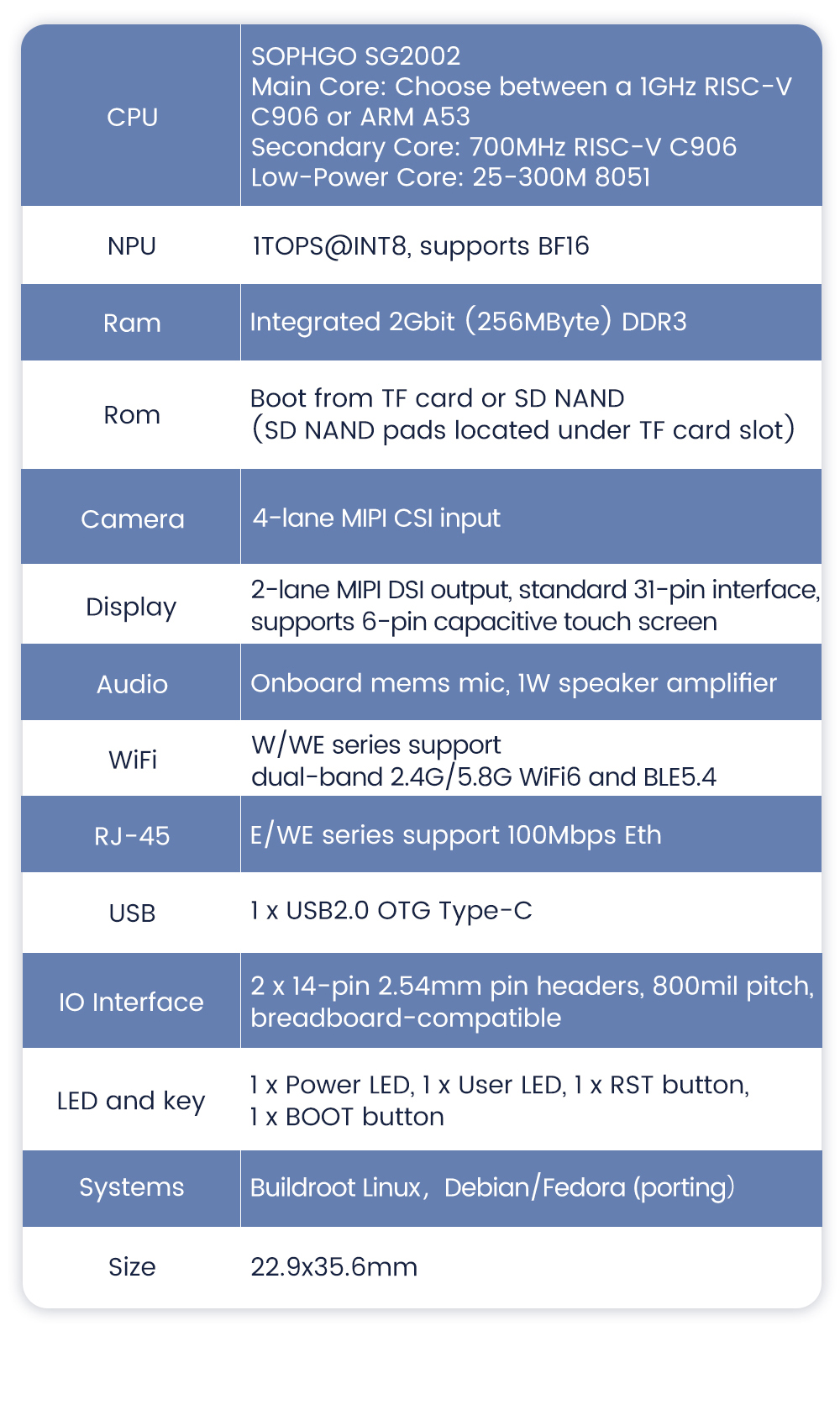

Technical Specifications
