STMicroelectronics X-NUCLEO-GNSS1A1 GNSS Expansion Board | Teseo-LIV3F Positioning Shield | For Global Navigation & Asset Tracking
Description

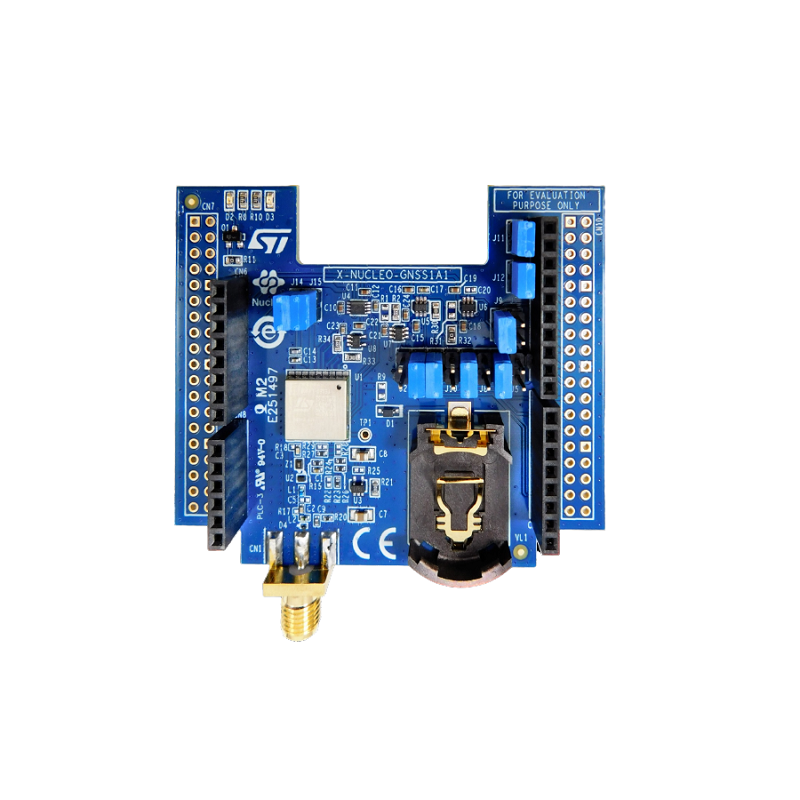

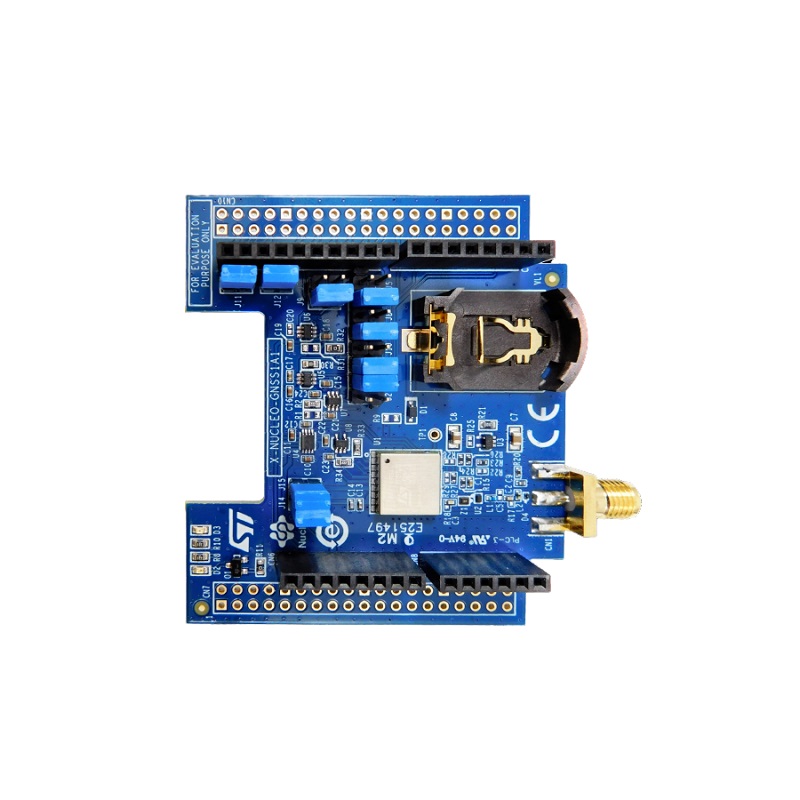

SPIDER Automation STMicroelectronics X-NUCLEO-GNSS1A1 GNSS Expansion Board provides a cost-effective and easy-to-use global navigation satellite system (GNSS) solution for STM32 Nucleo development ecosystems. Centered around the powerful Teseo-LIV3F module, this shield embeds a standalone TeseoIII single-die positioning receiver IC capable of high-precision location tracking.
The expansion board operates on a 3.3V to 5V power supply and communicates smoothly via UART and I²C ports. It features flexible configuration options including a digital I²O timepulse and an EXTINT input for device wakeup. Designed with the Arduino UNO R3 connector layout and ST morpho headers, the X-NUCLEO-GNSS1A1 can be mounted directly onto STM32 Nucleo boards or stacked with additional expansion shields for comprehensive IoT prototyping.
Key Features
- Teseo-LIV3F Positioning IC: High-performance single-die standalone GNSS receiver delivering accurate global location data.
- Flexible Operating Voltage: Supports a clean 3.3V to 5V DC power supply input suitable for standard development setups.
- Communication & Control Interfaces: Features dedicated UART and I²C ports, configurable digital I/O timepulse, and EXTINT wakeup inputs.
- NMEA Protocol Compatibility: Native support for standard NMEA sentences for straightforward data parsing.
- Stackable Interconnects: Equipped with Arduino UNO R3 connector layout and ST morpho headers for seamless Nucleo stacking.
Benefits
- Rapid Location Integration: Pre-built shield architecture eliminates complex RF and antenna layout hurdles during prototyping.
- Stackable Ecosystem: Standardized pinouts allow simultaneous combination with sensor, motor, or communication shields.
- Standard Data Output: NMEA protocol support ensures wide compatibility with open-source mapping libraries and telemetry tools.
Applications
- Asset Tracking & Fleet Management: Real-time GPS/GNSS position logging for vehicles, cargo containers, and remote equipment.
- Autonomous Robotics & Rovers: Outdoor navigation systems for field robots and agricultural drones.
- Portable IoT & Wearable Devices: Location-aware field monitoring stations and traveler safety gadgets.
- Embedded Systems Education: University labs teaching satellite positioning, serial communication protocols, and IoT data logging.
Package Includes
- 1 x STMicroelectronics X-NUCLEO-GNSS1A1 GNSS Expansion Board (Teseo-LIV3F Module)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / STMicroelectronics X-Nucleo Connectivity Series |
| Item Type | GNSS Navigation Expansion Board & Shield |
| Model Order Code / SKU | X-NUCLEO-GNSS1A1 / SKU-SPIDER-XNUCLEO-GNSS1A1 |
| Silicon Manufacturer | STMicroelectronics |
| Target GNSS Module / IC | Teseo-LIV3F (TeseoIII Single-Die Positioning Receiver) |
| Operating Supply Voltage | 3.3 V to 5 V DC |
| Communication Ports | UART, I²C, Configurable Timepulse, EXTINT Wakeup |
| Data Protocol | NMEA Protocol Support |
| Board Compatibility | STM32 Nucleo Boards (Arduino UNO R3 & ST Morpho Connectors) |
| Package Shipping Weight | 0.17 kg (170 g) |
| Package Shipping Dimensions | 24 cm × 12 cm × 5 cm |
