Description

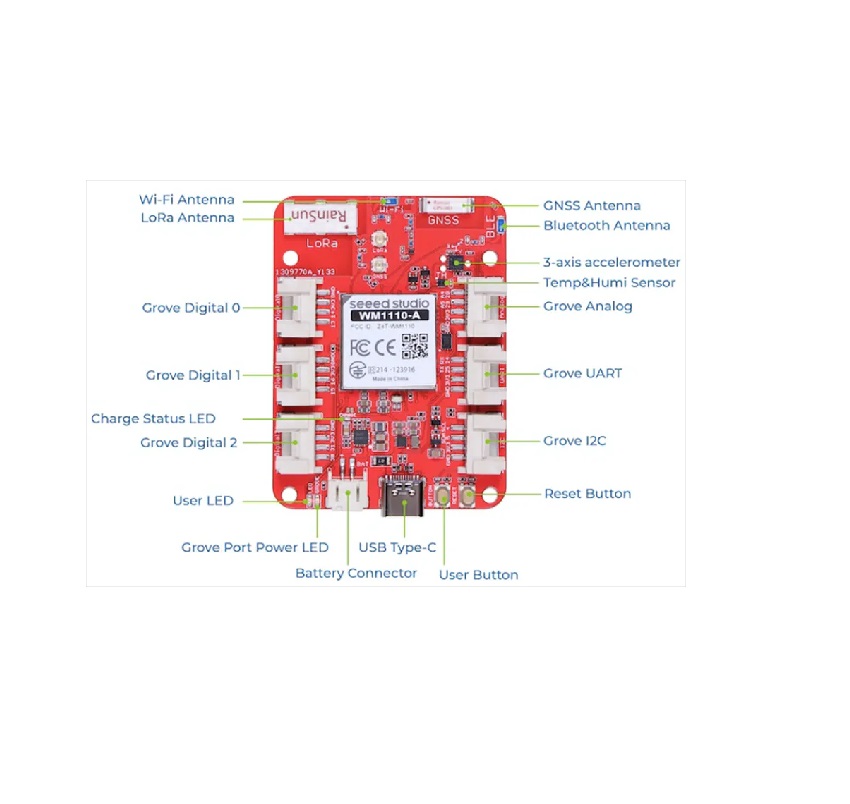

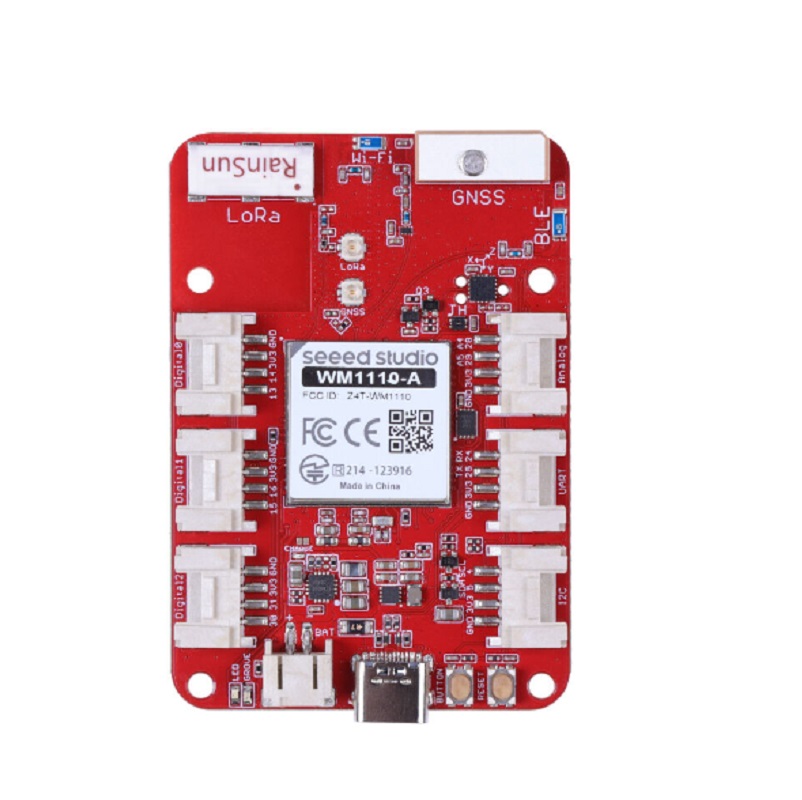

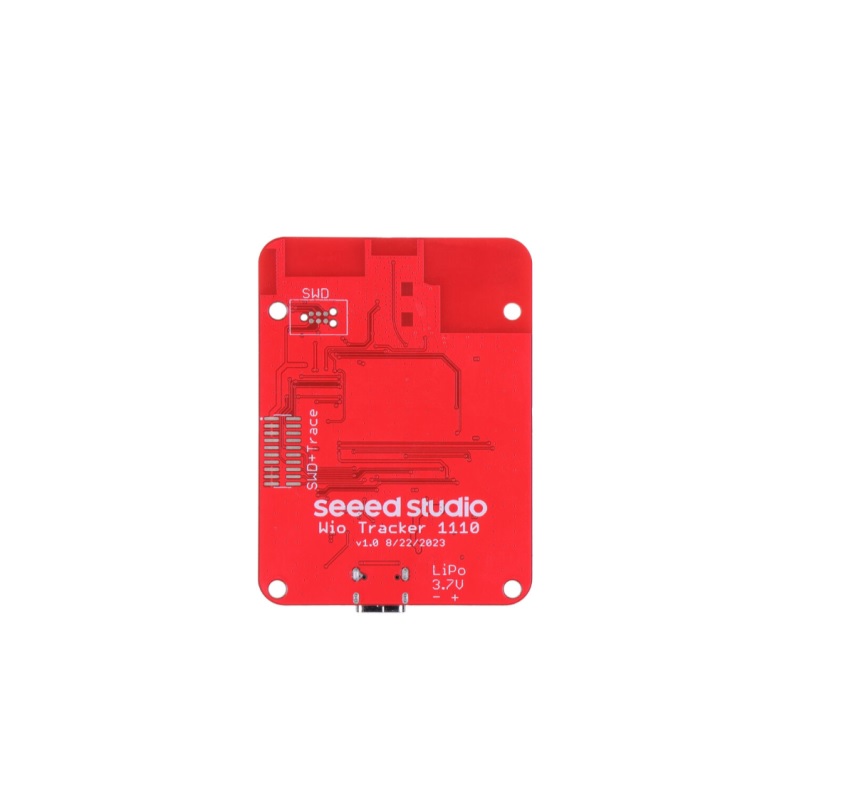

The Wio Tracker 1110 is a high-performance development platform designed for sophisticated indoor and outdoor geolocation and environmental tracking. It centers on the Wio-WM1110 wireless module, which leverages the Semtech LR1110 transceiver for LoRa communication and geolocating services, paired with the Nordic nRF52840 for powerful local processing and Bluetooth connectivity.
This board is an all-in-one solution for IoT developers, offering a “tracker-in-a-box” experience. With its support for LoRaWAN, GNSS (GPS/BeiDou), Wi-Fi sniffing, and Bluetooth, it can handle complex positioning tasks across varied environments. The inclusion of built-in environmental sensors and the Grove ecosystem compatibility makes it exceptionally easy to prototype and deploy custom tracking solutions.
Note: Product images are for illustrative purposes. For detailed pinouts, API references, and LoRaWAN configuration guides, please refer to the official Seeed Studio Wiki and technical documentation.
Features
- Dual-Chip Architecture: Powered by the nRF52840 MCU and Semtech LR1110 radio.
- Versatile Connectivity: Simultaneous support for LoRaWAN, GNSS, Bluetooth, and Wi-Fi scanning.
- Integrated Sensing: Onboard temperature, humidity, and 3-axis accelerometer.
- Grove Compatibility: Seamlessly integrate with over 300+ Grove expansion modules.
- Development Ecosystem: Fully open-source and compatible with the Arduino IDE.
- Flexible Power: USB Type-C (3.3V) and external battery (4.5V) support.
Benefits
- Comprehensive Positioning: Combines GNSS, Wi-Fi, and LoRa geolocation techniques for robust coverage.
- Fast Prototyping: The Grove system eliminates soldering and complex wiring during the development phase.
- Scalable Deployment: Professional-grade features in a development board format suitable for field testing and pilot projects.
Applications
- Asset and Livestock Tracking
- Smart City Environmental Monitoring
- Indoor/Outdoor Inventory Management
- Supply Chain and Logistics Visibility
- Precision Agriculture
Package Includes
- 1 x Seeed Studio Wio Tracker 1110 Development Board
Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 863 to 928 MHz |
| Flash Memory | 1 MB |
| RAM | 256 KB |
| Operational Range | 2 km to 10 km (LoRa) |
| Operating Temp | -40°C to +125°C |
| Shipping Weight | 0.053 kg |
| Shipping Dimensions | 11 × 7 × 4 cm |
