Description
The CMT221xB/LB is a high-performance, ultra-low-power OOK (On-Off Keying) stand-alone RF receiver optimized for sub-GHz wireless applications. Operating in the 300 to 920 MHz range, it provides a highly cost-effective and efficient solution for short-range wireless communication. A defining characteristic of this device is its “stand-alone” functionality, allowing it to operate autonomously without an external microcontroller to manage its configuration.
The device features an integrated EEPROM, which can be configured using the CMOSTEK USB Programmer and RFPDK software to set custom frequencies, data rates, and other operational parameters. For standard use cases, it is available in pre-programmed versions for common frequencies like 433.92 MHz and 868 MHz. Its high sensitivity (-113 dBm) and low active current (3.8 mA) ensure reliable performance in battery-constrained environments.
Note: Configuration for this device is managed via the CMOSTEK RFPDK tool. Please refer to the official datasheet for detailed register configurations, pinout diagrams, and antenna matching network requirements.
Features
- Stand-Alone Operation: Designed to function without an external MCU, reducing total system cost and complexity.
- Programmable: All features are configurable via embedded EEPROM using the RFPDK software.
- High Sensitivity: Reaches -113 dBm at 1 kbps, ensuring robust signal reception in low-power applications.
- Duty-Cycle Management: Built-in sleep timer allows for ultra-low power consumption in duty-cycle operation modes.
- Package Flexibility: Available in both 16-pin QFN (3×3 mm) and SOP8 packages.
- Broad Frequency Support: Covers the 300 to 920 MHz ISM bands.
Benefits
- Power Efficiency: Features very low sleep currents (60 nA / 440 nA) and a low active current of 3.8 mA.
- Reduced BOM: Simplifies system design by eliminating the need for complex external control logic.
- Easy Development: Highly compatible with CMOSTEK’s development ecosystem, enabling quick configuration and prototyping.
Applications
- Remote Keyless Entry (RKE): Automotive and access control systems.
- Home/Building Automation: Smart lighting, motion sensors, and environmental monitors.
- Security: Wireless alarm systems and sensor networks.
- Industrial: Remote monitoring, telemetry, and control systems.
- Utility: Automated Meter Reading (AMR).
Package Includes

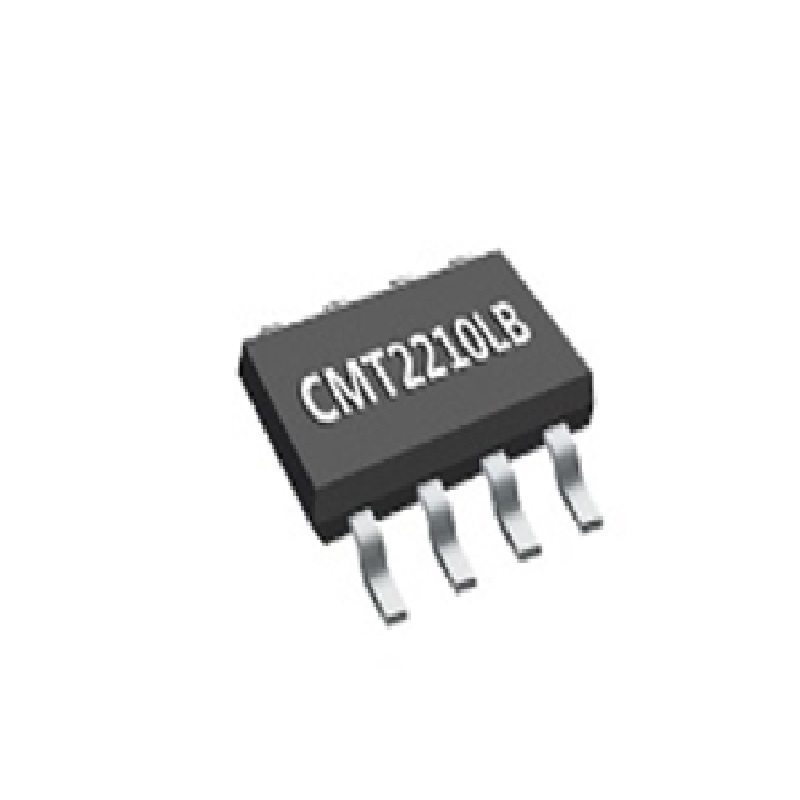

- 1 x CMT2210LB-ESR Receiver Chipset
Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 300 – 920 MHz |
| Data Rate | 0.1 – 40 kbps |
| Receiver Sensitivity | -113 dBm (@ 1 kbps) |
| Supply Voltage | 1.8 V – 3.6 V |
| Active Current | 3.8 mA |
| Bandwidth | 50 – 330 kHz (Configurable) |
