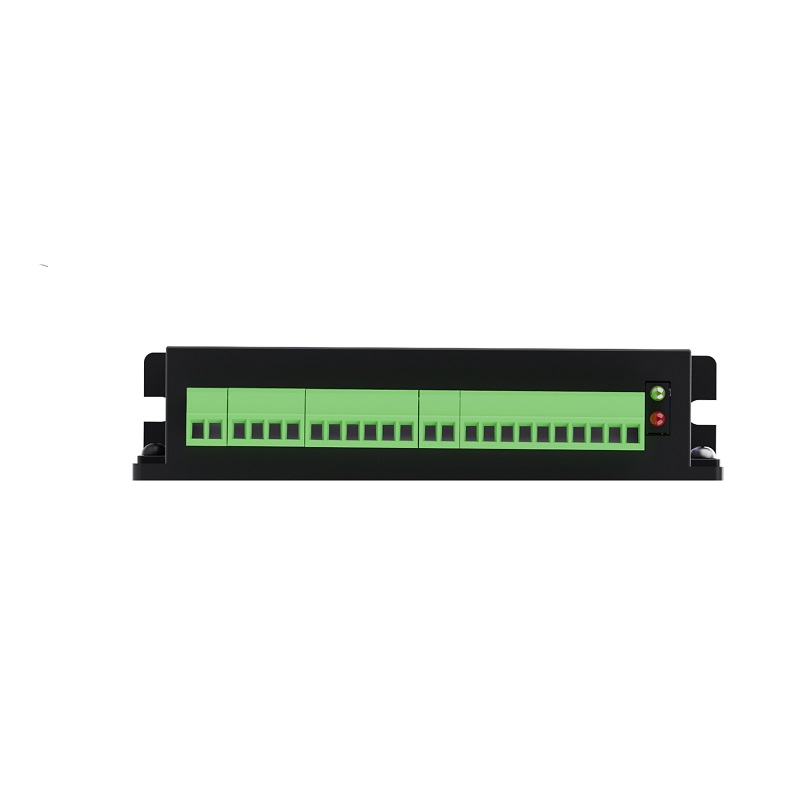

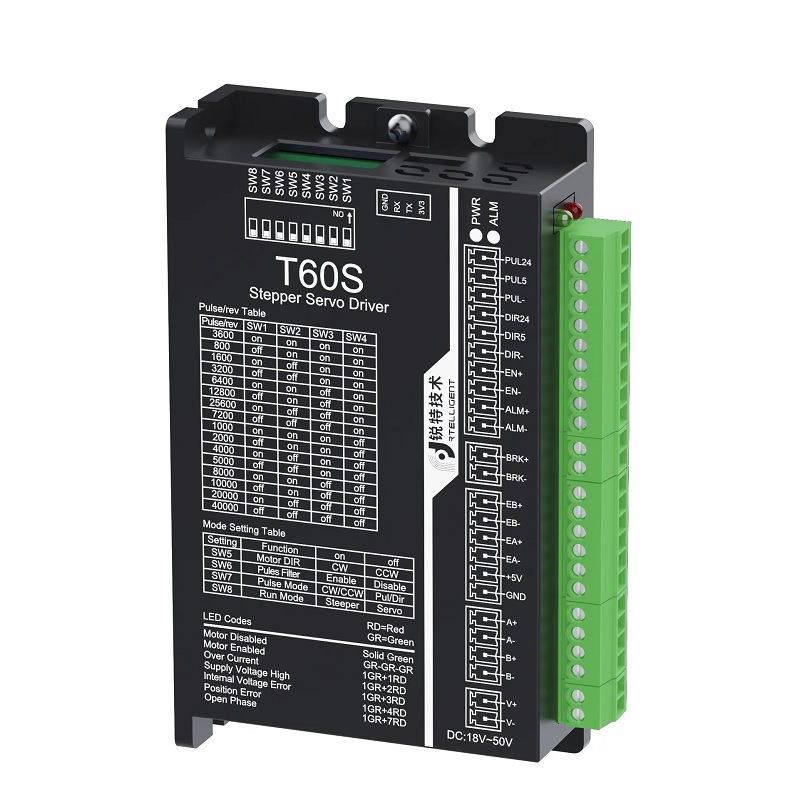

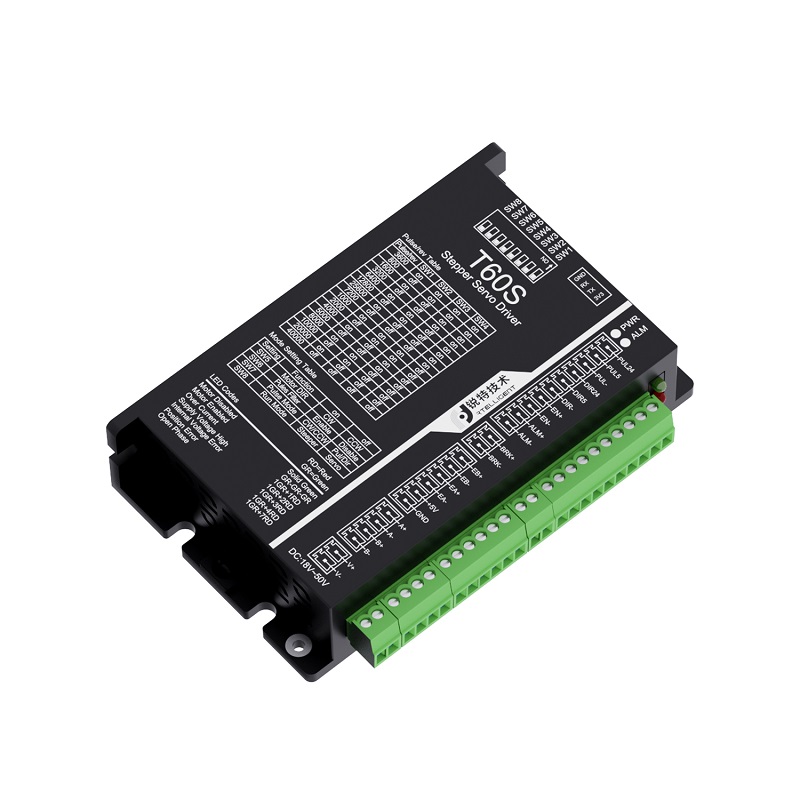

Rtelligent T60S Closed Loop Stepper Driver for NEMA 17 & NEMA 23 Motors
Description :
The Rtelligent T60S Closed Loop Stepper Driver is an upgraded generation stepper motor driver developed using Rtelligent’s extensive experience in motion control and stepper drive technology. Designed with a new control architecture and advanced algorithms, the T60S delivers smoother motor operation, reduced low-speed resonance, and enhanced anti-interference capability for demanding industrial and automation applications.
This closed loop stepper driver supports a wide input voltage range from 18V to 50V DC and provides adjustable output current up to 6000mA, making it suitable for high-performance closed loop stepper motors below 60mm frame size, including NEMA 17 and NEMA 23 motors.
The driver supports multiple pulse command modes including PUL+DIR and CW+CCW, selectable through DIP switch settings. Advanced step subdivision technology ensures smoother motion, improved positioning accuracy, and reduced vibration during operation.
The T60S also supports non-inductive rotation detection, phase alarm functions, and multiple protection mechanisms for reliable and stable motor control. Its compact and efficient design makes it ideal for CNC machines, 3D printers, robotics, packaging systems, textile machinery, and industrial automation equipment.
Features:
- Wide operating voltage range from 18V to 50V DC
- Closed loop stepper motor control
- Adjustable output current up to 6000mA
- Advanced microstep subdivision for smooth motion
- Reduced low-speed resonance and vibration
- Enhanced anti-interference capability
- Supports PUL+DIR and CW+CCW pulse modes
- DIP switch configuration for easy setup
- Supports non-inductive rotation detection
- Phase alarm and fault detection support
- Over-voltage, over-current, and short-circuit protection
- Compatible with NEMA 17 and NEMA 23 motors
- Compact and industrial-grade design
Applications:
- CNC machines
- 3D printers
- Industrial automation systems
- Robotics applications
- Packaging machines
- Textile machinery
- Medical equipment
- Electronic assembly systems
Package Includes:
- 1 x Rtelligent T60S Closed Loop Stepper Driver
Specification :
| Item Type | Closed Loop Stepper Driver |
| Output Current (A) | 6000mA |
| Compatible Motor | Closed Loop Motor Below 60mm |
| Pulse Mode | PUL+DIR or CW+CCW (DIP Setting) |
| Voltage Range (V) | 18 ~ 50V DC |
| Compatible Motor Types | NEMA 17, NEMA 23 |
| Configuration Method | DIP Switch |
| Shipping Weight | 0.246 kg |
| Shipping Dimensions | 16 × 11 × 06 cm |
