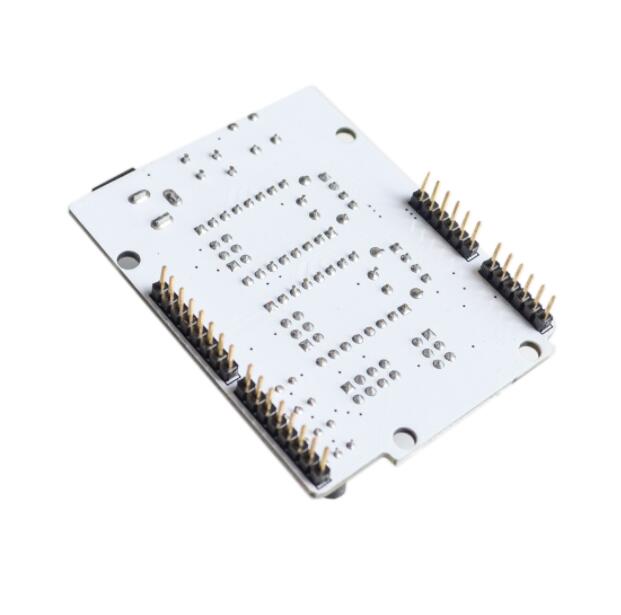

Presall 3D Scanner Board Kit Ciclop Expansion Board

Description

The Presall 3D Scanner Board Kit Ciclop Expansion Board is an Arduino UNO-compatible power and control shield designed for stepper motor and sensor management in 3D scanning and 3D printing applications. It is based on a CNC shield architecture and supports stepper motor control using A4988 or DRV8825 driver modules.

The board includes a 12V DC power input jack, which provides stable power supply to connected stepper motors and peripheral devices such as laser modules and LDR sensors. It is engineered for integration into Ciclop-style 3D scanner systems as well as other custom motion control projects.

Although originally designed for Ciclop 3D scanners using a single stepper motor and dual laser modules, this expansion board supports extended configurations, allowing control of up to two stepper motors, four laser modules, and two LDR sensors. This makes it suitable for both current and future expansion-based scanning systems.

Features

• Arduino UNO-compatible expansion shield design
• Supports A4988 and DRV8825 stepper motor drivers
• Integrated 12V DC power input jack for motor supply
• Based on CNC shield architecture for stable control
• Supports stepper motors, laser modules, and LDR sensors
• Thermal shutdown protection for safe operation
• Ground fault protection for improved electrical safety
• Short-circuit load protection for system reliability

Applications

• 3D scanners (Ciclop-based systems)
• 3D printers and motion control systems
• CNC and automation projects
• Laser-based scanning systems
• DIY robotics and embedded electronics projects
• Multi-sensor control applications

Package Includes

• 1 × Presall 3D Scanner Board Kit Ciclop Expansion Board

Specifications
