Description

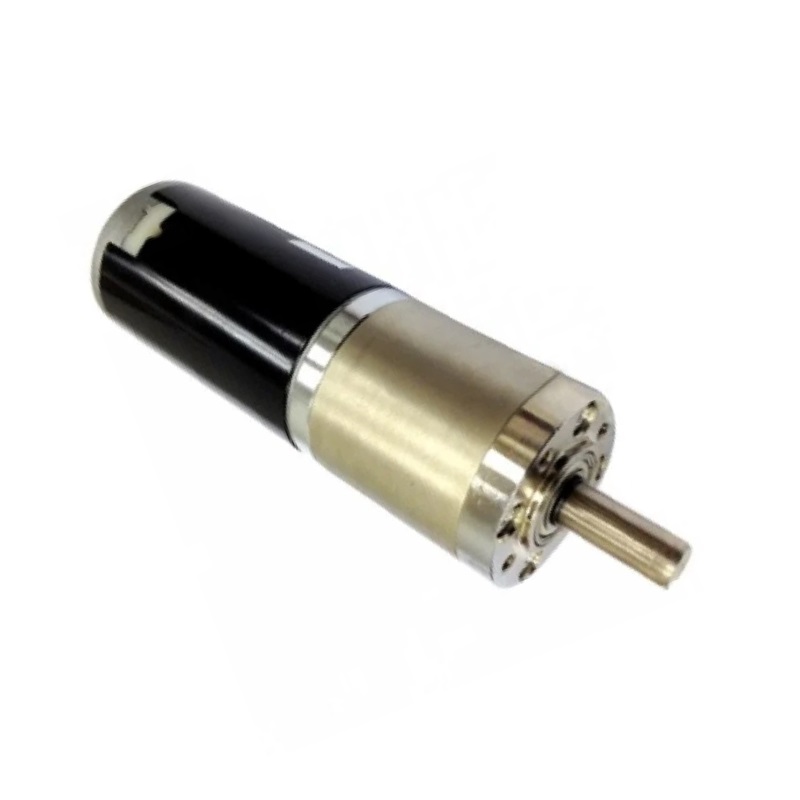

Considered the “Big Brother” to the popular IG32 and IG42 series, the IG45-04K Planetary DC Geared Motor is a high-speed, heavy-duty industrial actuator engineered for demanding automation and robotics applications. Built around a robust 45mm diameter planetary (epicyclic) gearbox with a 4:1 gear ratio, this 24V motor delivers an impressive rated speed of 1620 RPM paired with a solid 25 N-cm of torque. By omitting built-in encoders, the IG45 series provides exceptional power output and high transmission efficiency at a highly cost-effective price point.
Driven by a reliable brushed permanent magnet DC motor drawing 3.5A rated current with a 49.5W power rating, this motor is designed to handle rigorous mechanical stress with minimal backlash. Every unit undergoes rigorous bench-testing at the warehouse for its extreme pushable limits, ensuring dependable, long-term performance. Whether you are building high-speed autonomous rovers, automated conveyors, or powerful mechanical drive systems, the IG45-04K offers unmatched velocity and muscle for your build.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- High-Efficiency Planetary Gearbox: Precision metal epicyclic gearing ensures low mechanical backlash, high transmission efficiency, and smooth power delivery under load.
- Heavy-Duty 45mm Form Factor: Larger diameter robust housing designed to deliver significantly more raw power and capability than smaller 32mm and 42mm models.
- High-Speed Output: Delivers a rapid 1620 RPM rated speed at 24V, making it ideal for applications requiring fast movement and high velocity.
- Reversible & Variable Speed: Brushed permanent magnet DC motor supports bidirectional control and easy speed regulation via PWM drivers.
- Industrial Power Delivery: Outputs 49.5W of rated power to sustain continuous operation in demanding environments.
Benefits
- Exceptional Cost-to-Performance Value: Delivers heavy-duty industrial speed and torque without the added cost of integrated encoder feedback.
- Reliable Under Stress: Robust all-metal internal gearing distributes mechanical forces evenly, preventing premature wear.
- Versatile 24V Operation: Easily integrates with standard heavy-duty motor controllers, robot drivers, and 24V power supply systems.
- Rigorously Tested Quality: Verified for extreme operating limits to guarantee long-term operational durability.
Applications
- High-Speed Mobile Rovers: Excellent drive-motor solution for autonomous vehicles and racing robotics requiring high RPMs.
- Industrial Automation & Conveyors: Perfect for driving automated production lines, fast sorting systems, and material handling mechanisms.
- Custom Actuators & Mechatronics: Ideal for building powerful motorized fixtures, automated gates, and heavy-duty mechanical assemblies.
- Robotics & Engineering Projects: A robust power source for advanced maker projects requiring high rotational velocity and reliable strength.
Package Includes
- 1 x IG45-04K Planetary 24V DC Geared Motor (1620 RPM, 25 N-cm)
Specifications
| Parameter | Specification |
|---|---|
| Model Series | IG45-04K |
| Item Type | Planetary DC Geared Motor |
| Rated Voltage | 24V DC |
| Rated Speed | 1620 RPM |
| Rated Torque | 25 N-cm |
| Power Rating | 49.5W |
| Rated Current | 3.5A |
| Gearbox Diameter | 45 mm |
| Gear Ratio | 4:1 |
| Gear Material | All-Metal Gears |
| Motor Type | Brushed Permanent Magnet DC Motor |
