Description

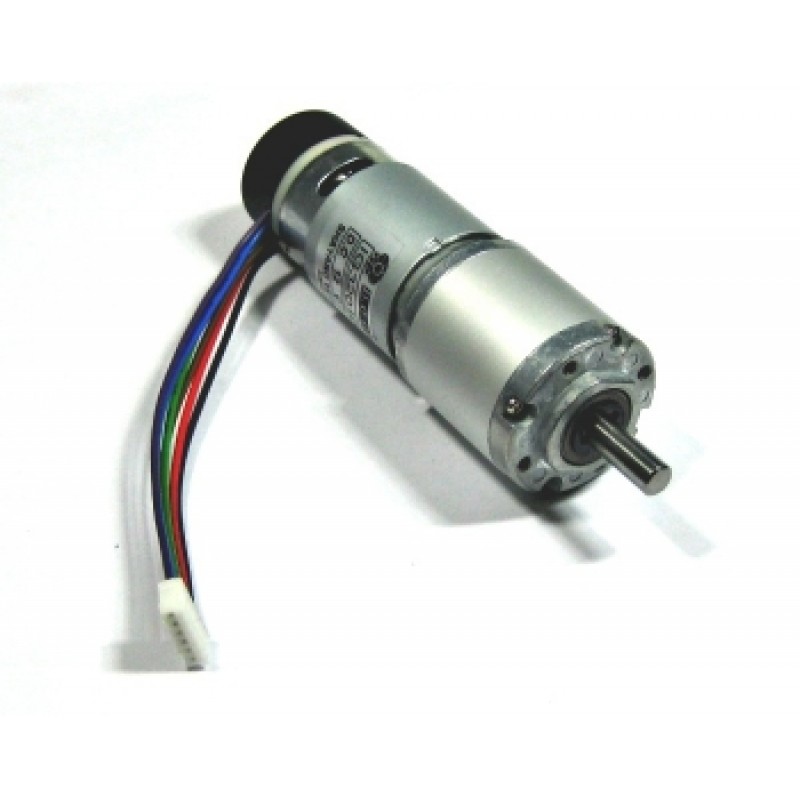

The IG32E-264K Planetary DC Geared Motor is a high-torque, ultra-precise actuator imported from an established Taiwanese manufacturer recognized worldwide for exceptional quality and durability. Built around an efficient epicyclic (planetary) gear train with an immense 264:1 gearhead ratio, this motor delivers the low backlash, smooth power transmission, and extreme torque density required for demanding robotics and automation applications. Housed in a compact 32mm diameter metal gearbox, this 12V model provides massive mechanical advantage and pinpoint position tracking.
Operating at a controlled 24 RPM with a robust rated torque of 120 N-cm, this motor is powered by a reliable brushed permanent magnet DC motor drawing 0.9A with a 7W power rating. It features an integrated high-resolution single-channel encoder providing exceptional rotational feedback (1848 PPR) for ultra-accurate speed and positioning control in closed-loop systems. Rigorously bench-tested at the warehouse for its extreme pushable limits, the IG32E-264K ensures dependable, long-lasting performance.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- High-Efficiency Planetary Gearbox: Precision metal epicyclic gearing ensures minimal mechanical backlash and exceptional torque transmission efficiency under heavy loads.
- Compact 32mm Form Factor: Space-saving cylindrical gearbox designed to fit effortlessly into tight robotic chassis and automation housings.
- Ultra-High-Resolution Encoder Feedback: Built-in single-channel encoder (1848 PPR) delivers incredible positional accuracy and detailed speed telemetry for closed-loop control.
- Massive Mechanical Advantage: High reduction ratio provides extraordinary pulling and lifting power for heavy payloads.
- Reversible & Variable Speed: Brushed permanent magnet DC motor supports bidirectional control and easy speed regulation via PWM drivers.
Benefits
- Precise Closed-Loop Tracking: High-resolution encoder output enables fine-tuned speed regulation and exact position counting for advanced autonomous navigation.
- Reliable Load Handling: Planetary gear distribution prevents premature gear wear under repetitive operational stress and heavy continuous loads.
- Versatile 12V Power: Compatible with standard robotics motor drivers, shields, and 12V DC power systems.
- Proven Taiwanese Craftsmanship: Manufactured to strict standards and rigorously tested for extreme operating limits.
Applications
- Autonomous Mobile Robots: Ideal drive-motor solution for precision rovers, AGVs, and heavy-payload robotic platforms requiring exact positional feedback.
- Robotic Arms & Joints: Excellent high-torque actuator for multi-axis mechanisms, automated tracking mounts, and articulated joints.
- Industrial Automation & Winches: Perfect for driving automated production lines, sorting arms, motorized winches, and heavy lifting mechanisms.
- STEM Education & R&D: A top-tier platform for students and engineers learning advanced closed-loop motor control and positioning robotics.
Package Includes
- 1 x IG32E-264K Planetary 12V DC Geared Motor (24 RPM, 120 N-cm with Encoder)
Specifications
| Parameter | Specification |
|---|---|
| Model Series | IG32E-264K |
| Item Type | Planetary DC Geared Motor with Encoder |
| Rated Voltage | 12V DC |
| Rated Speed | 24 RPM |
| Rated Torque | 120 N-cm |
| Power Rating | 7W |
| Rated Current | 0.9A |
| Gearbox Diameter | 32 mm |
| Gear Ratio | 264:1 (Approx. 11.001) |
| Gear Material | All-Metal Gears |
| Motor Type | Brushed Permanent Magnet DC Motor |
| Encoder Feedback | Single Channel Encoder (1848 PPR) |
