SPIDER Automation Official Raspberry Pi PoE+ HAT | HAT Board | For Raspberry Pi 4B/3B+ Power over Ethernet & Thermal Management
Description

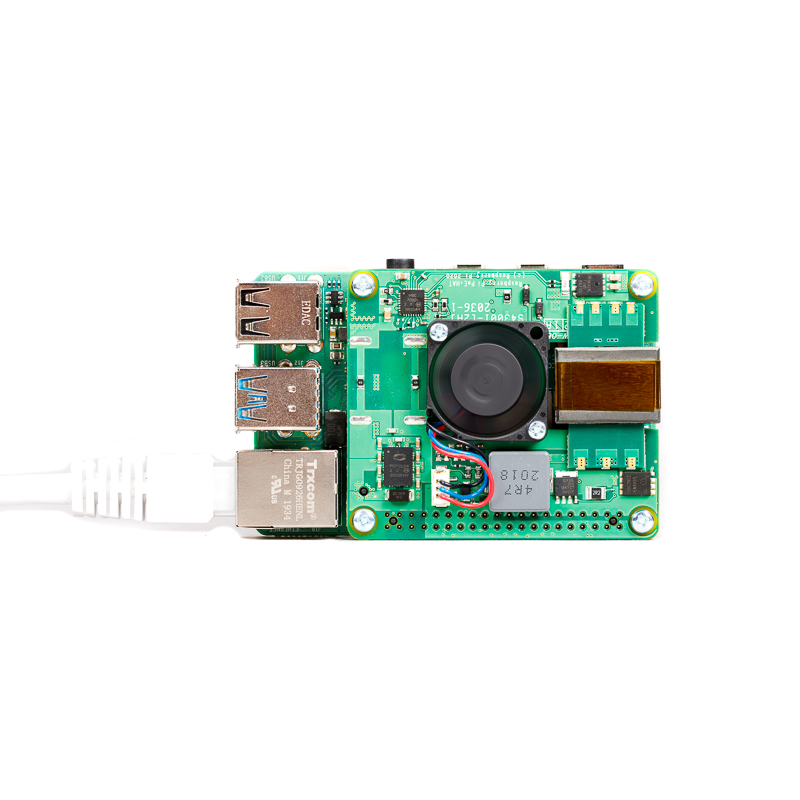

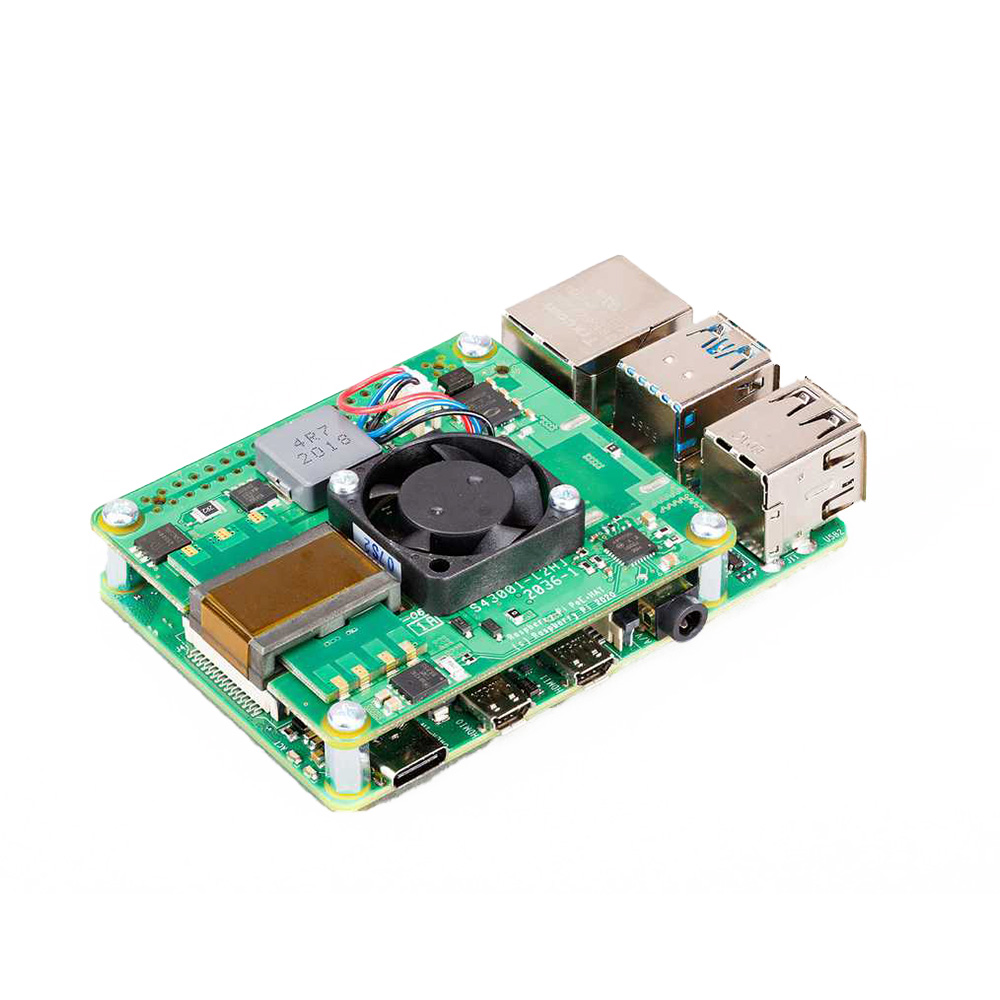

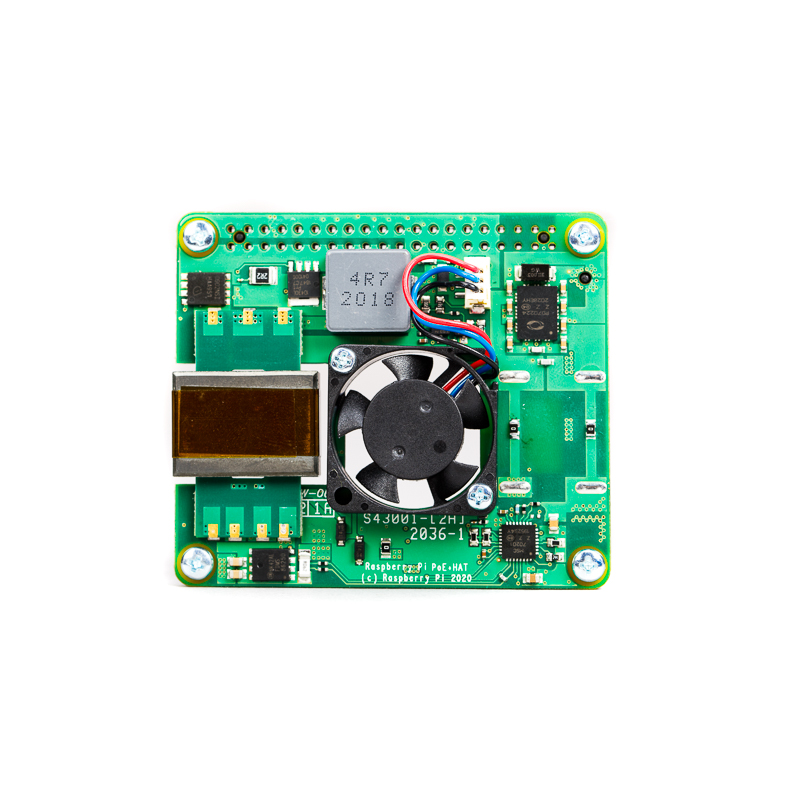

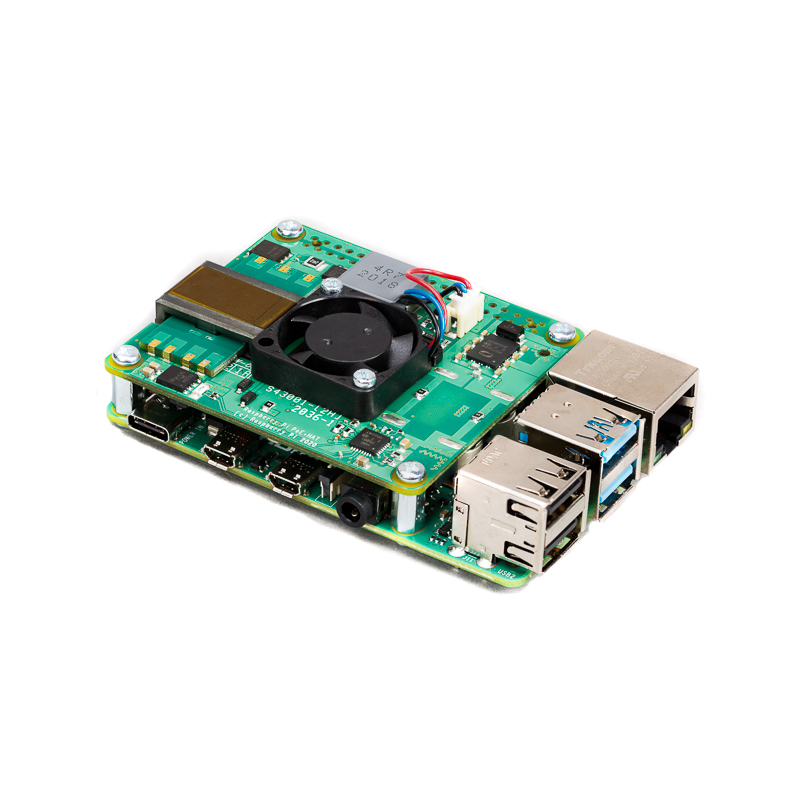

SPIDER Automation Official Raspberry Pi PoE+ HAT is an advanced add-on board designed to streamline power delivery and thermal regulation for Raspberry Pi 4 Model B and 3 Model B+ computers. By leveraging standard Ethernet cabling connected to a PoE-capable network switch, this HAT supplies dependable operating power straight to your board without cluttering your workspace with separate power adapters.
Complying with the IEEE 802.3at-2003 Class 4 specification, the PoE+ HAT steps down an input voltage of 37–57V DC to deliver a robust 5V DC output at up to 4 Amps. Featuring a fully isolated switched-mode power supply for superior safety and an integrated temperature-controlled brushless cooling fan, it maintains optimal operating temperatures during intensive computing tasks.
Key Features
- IEEE 802.3at-2003 Standard: Class 4 Power over Ethernet compliance for dependable remote power delivery.
- High-Capacity Power Output: Upgraded design supplying 5V DC at up to 4 Amps to handle demanding USB peripherals.
- Wide Input Voltage Range: Accepts 37–57V DC input from network switches and power injectors.
- Fully Isolated Power Supply: Switched-mode circuit providing complete electrical isolation for enhanced equipment protection.
- Integrated Cooling Fan: Built-in 25mm × 25mm brushless fan pushing 2.2 CFM for effective processor temperature control.
- Smart Fan Management: Automated thermal control script adjusting fan speed based on processor heat levels.
- Plug-and-Play Compatibility: Designed specifically to mount cleanly onto the PoE pins of Raspberry Pi 4B and 3B+ boards.
- Low-Profile HAT Form Factor: Compact structural design that fits inside standard official and third-party enclosures.
Benefits
- Single-Cable Infrastructure: Combines data and power transmission into a single Ethernet cable, simplifying deployments.
- Eliminates Wall Adapters: Perfect for mounting units in remote locations where electrical wall outlets are unavailable.
- Enhanced Thermal Stability: Built-in fan prevents thermal throttling under heavy CPU loads without requiring separate heatsink kits.
- Robust Electrical Safety: Fully isolated power architecture protects your Raspberry Pi against power spikes and ground loops.
- Professional Cable Management: Keeps enclosures clean and organized by removing loose micro-USB or Type-C power cords.
Applications
- Remote Security Cameras & NVRs: Ceiling or wall-mounted Raspberry Pi surveillance nodes powered via network cables.
- Industrial Automation Terminals: Factory floor data loggers and control screens installed far from power sockets.
- Smart Home Hubs & Servers: Centralized smart home routers and media servers running 24/7 with reliable LAN power.
- Digital Signage & Kiosks: Public display screens and information terminals deployed in commercial spaces.
- Network Monitoring Nodes: Dedicated headless network testing and diagnostic units.
Package Includes
- 1 x Official Raspberry Pi PoE+ HAT Board
- 1 x Mounting Hardware Spacers and Screws Set
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Series | SPIDER Automation / Official Raspberry Pi HAT Range |
| Item / Component Type | Power over Ethernet (PoE+) Expansion HAT |
| Model Number / SKU | Raspberry Pi PoE+ HAT / SKU-SPIDER-OFFICIAL-RPI-POE-PLUS-HAT |
| Host Compatibility | Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+ |
| PoE Standard | IEEE 802.3at-2003 PoE (Class 4 Device) |
| Input Voltage | 37 – 57 V DC (Power-sourcing network equipment required) |
| Output Power | 5 V DC / 4 A Max Output |
| Power Supply Design | Fully Isolated Switched-Mode Power Supply |
| Cooling System | 25 mm × 25 mm Brushless Fan (2.2 CFM with Control) |
| Operating Temperature | 0°C to +50°C |
| Board Dimensions | 65 mm × 56.5 mm × 14 mm |
| Package Shipping Weight | 0.04 kg |
| Package Shipping Dimensions | 6 cm × 6 cm × 3 cm |
