Description
The MCX Male Straight Connector is a high-density, miniature RF plug designed for compact electronic hardware. Measuring approximately 30% smaller than standard SMB connectors, the MCX (Micro-Coaxial) series is engineered to provide a lightweight, space-saving solution without compromising electrical performance. It utilizes a secure snap-on coupling mechanism, allowing for rapid installation and disconnection in high-density environments where tool access is limited.
This connector is built for demanding RF applications, offering broadband performance up to 6 GHz with low signal reflection. The connector body is crafted from high-quality copper alloy with a premium gold plating, ensuring excellent electrical conductivity and superior resistance to environmental degradation. Whether used in GPS tracking, smartphone antenna ports, or wireless networking hardware, this MCX male plug offers the reliability and consistent signal integrity required for modern, miniaturized communications systems.
Features
- Design: MCX Male Plug, Straight (180°) orientation
- Mounting: Cable mount with professional crimp-style shield termination
- Miniature Profile: 30% smaller than SMB, ideal for space-constrained designs
- Coupling: Snap-on interface for quick, tool-free installation
- Performance: Broadband operation up to 6 GHz with low signal reflection
- Build Quality: Gold-plated copper alloy for enhanced conductivity and durability
- Reliability: Engineered to MIL-STD-202 standards for vibration and corrosion resistance
Benefits
- Optimizes space and weight in high-density PCB and cable assemblies
- Snap-on design significantly improves assembly speed and maintenance efficiency
- Gold plating ensures consistent contact quality and ≥500 mating cycles
- Reliable performance across a broad thermal range (-65°C to +165°C)
- High-value, OEM-grade solution for professional RF hardware
Applications
- Consumer Electronics: GPS, HDTV, and Smartphone antenna ports
- Telecommunications: Wireless LAN/WAN/PAN (Bluetooth), GPS tracking, and Base Stations
- Industrial: Machine-to-Machine (M2M) communication networks
- Aerospace & Defense: Hand-held field devices and navigation systems
- Medical: Telemetry equipment
Package Includes

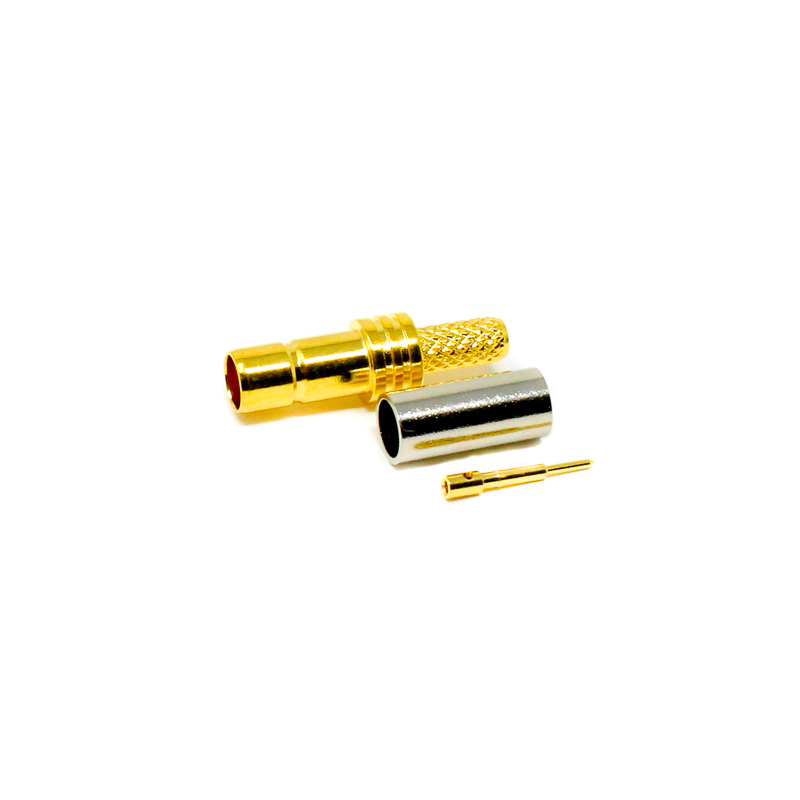

- 1 x MCX Male Straight Crimp Type Connector for Coaxial Cable
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Crimp Type |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +165°C (Teflon) |
