Description

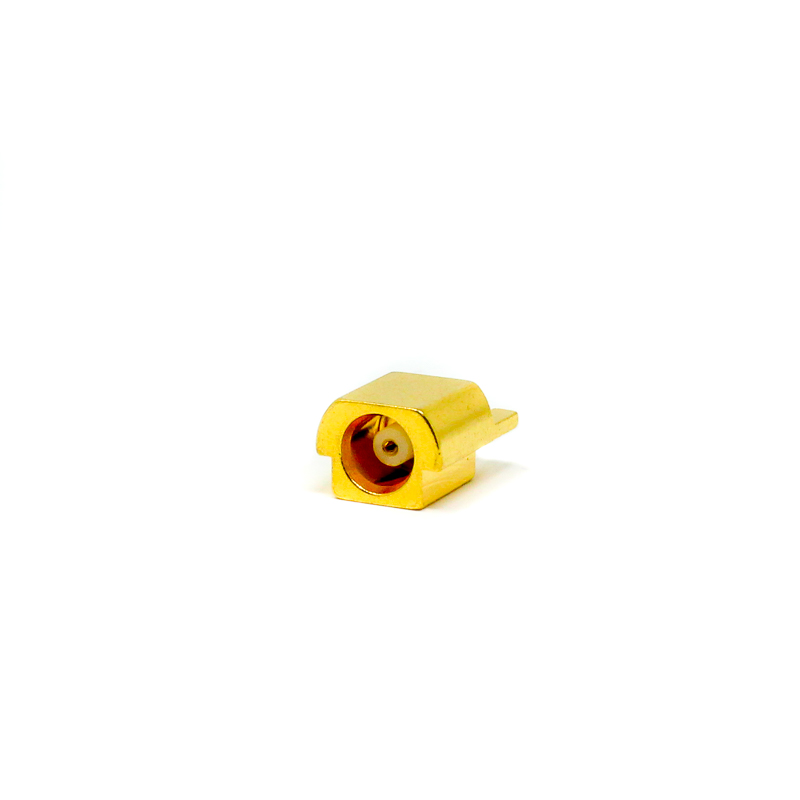

The MCX Female Straight Connector (Offset PCB Mount) is a high-density, miniature RF interface designed for space-constrained circuit board layouts. Being 30% smaller than standard SMB connectors, this MCX (Micro-Coaxial) jack provides a lightweight, high-performance solution for compact electronic assemblies. Its unique offset mounting style allows for flexible PCB design, making it perfect for modern wireless networking hardware, GPS devices, and handheld telecommunications equipment.
This connector features a reliable snap-on interface, allowing for efficient, tool-free installation and disconnection, which is essential for high-volume manufacturing and modular device design. Constructed from high-quality gold-plated copper alloy, it offers superior electrical conductivity and exceptional resistance to environmental corrosion. Delivering consistent broadband performance up to 6 GHz with low signal reflection, this MCX jack ensures the signal integrity required for mission-critical wireless and telemetry applications.
Key Features
- Design: MCX Female Socket (Jack), Straight (180°) orientation, Offset Type
- Mounting: PCB Mount (Surface Mount/Offset) for high-density layouts
- Miniature Profile: 30% smaller than SMB, ideal for space-constrained designs
- Coupling: Snap-on/off interface for rapid, tool-free assembly
- Performance: Broadband operation up to 6 GHz with low signal reflection
- Build Quality: Gold-plated copper alloy for enhanced conductivity and durability
- Reliability: Engineered to MIL-STD-202 standards for vibration and corrosion resistance
Technical Benefits
- Offset design provides enhanced flexibility for complex PCB signal routing
- Snap-on mechanism significantly reduces assembly time and simplifies field maintenance
- Gold plating ensures consistent, high-quality contact performance for ≥500 cycles
- Reliable electrical characteristics across a broad thermal range (-65°C to +155°C)
- High cost-effectiveness for professional-grade RF and networking hardware
Applications
- Consumer Electronics: GPS modules, Smartphone antenna ports, and Wireless Audio
- Telecommunications: Wireless LAN/WAN/PAN (Bluetooth), Base Stations, and GPS tracking
- Industrial: Machine-to-Machine (M2M) communication networks and process controls
- Aerospace & Defense: Handheld field navigation and telemetry devices
- Medical: Telemetry and wireless monitoring equipment
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Female (Jack) |
| Mounting Type | PCB Mount (Surface/Offset) |
| Termination Style | Solder Type |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +155°C |
