Description

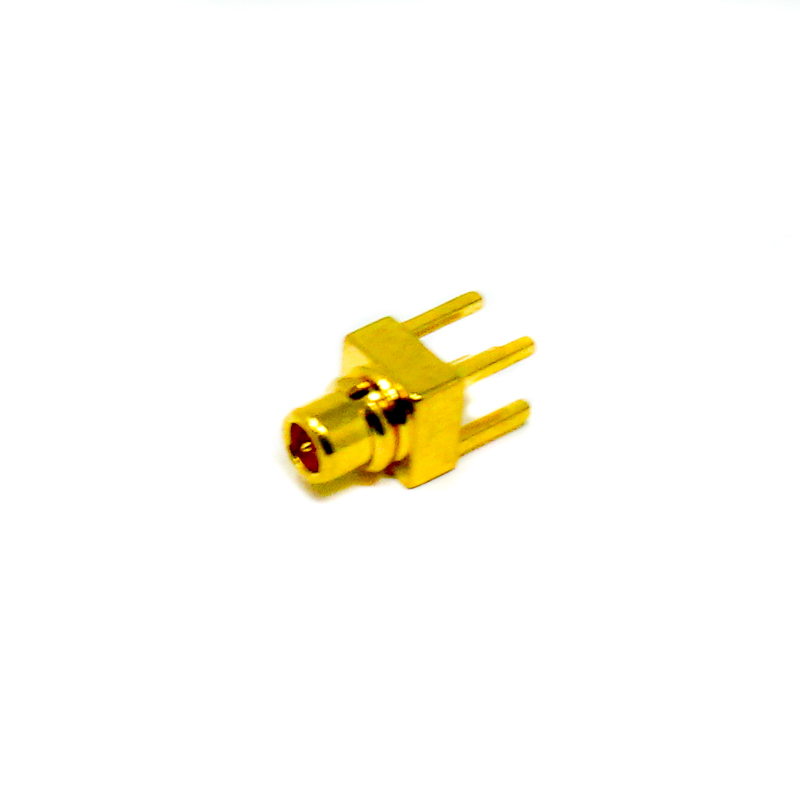

The MCX Male Coaxial Connector is a high-density, space-optimized RF interface designed for professional PCB mounting. Engineered to be 30% smaller than standard SMB connectors while maintaining robust contact integrity, this MCX connector is the perfect solution for compact, modern electronic devices where space is at a premium. It features a reliable snap-on interface, enabling rapid installation and removal without the need for threading tools.
Constructed from high-quality gold-plated copper alloy, this connector ensures superior electrical conductivity and exceptional resistance to oxidation and corrosion. It supports excellent broadband performance with low signal reflection, making it ideally suited for high-speed wireless applications, including GPS, Wireless LAN, Bluetooth, and cellular communications. Its through-hole design and compliance with MIL-STD-202 standards for vibration and corrosion resistance ensure long-term reliability in demanding consumer and industrial environments.
Features
- Design: MCX Male Plug with straight (180°) orientation
- Mounting: Through-hole PCB mount with solder-type termination
- Space-Saving: 30% smaller footprint than SMB connectors
- Snap-on Coupling: Fast, tool-free connect/disconnect interface
- Build Quality: Gold-plated copper alloy for low resistance and high durability
- Performance: Excellent broadband signal integrity
- Standards: Compliant with MIL-STD-202 for vibration and corrosion resistance
Benefits
- Optimized for miniature electronics and high-density PCB layouts
- Gold plating ensures consistent signal quality and ≥500 mating cycles
- Provides low signal reflection and high electrical stability
- Highly cost-effective, OEM-quality solution
- Resilient in extreme thermal environments (-65°C to +155°C)
Applications
- GPS Tracking, Positioning, and Navigation Systems
- Wireless LAN (WIFI) and Bluetooth (Wireless-PAN)
- Smartphone and Handheld Device Antenna Ports
- Industrial M2M Communication Modules
- Wireless Base Stations and Telecommunications Networks
- Medical Telemetry Equipment
Package Includes
- 1 x MCX Coaxial Connector Male Straight Through-Hole PCB Mount

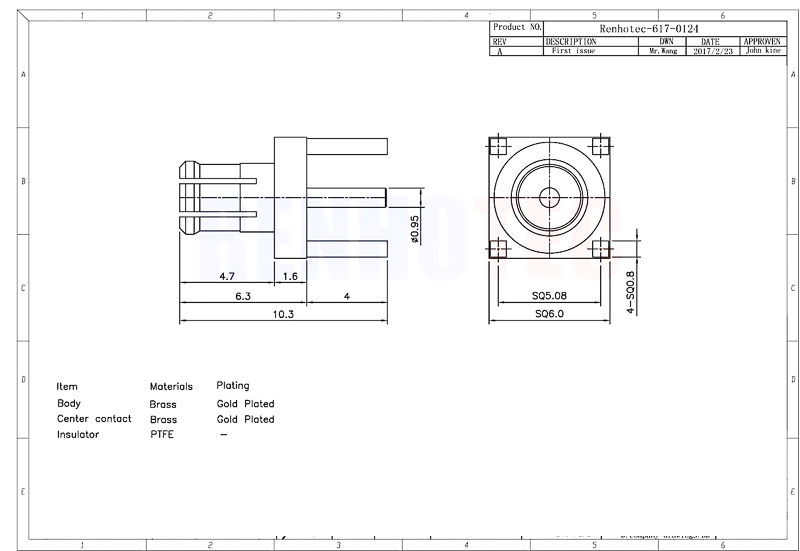

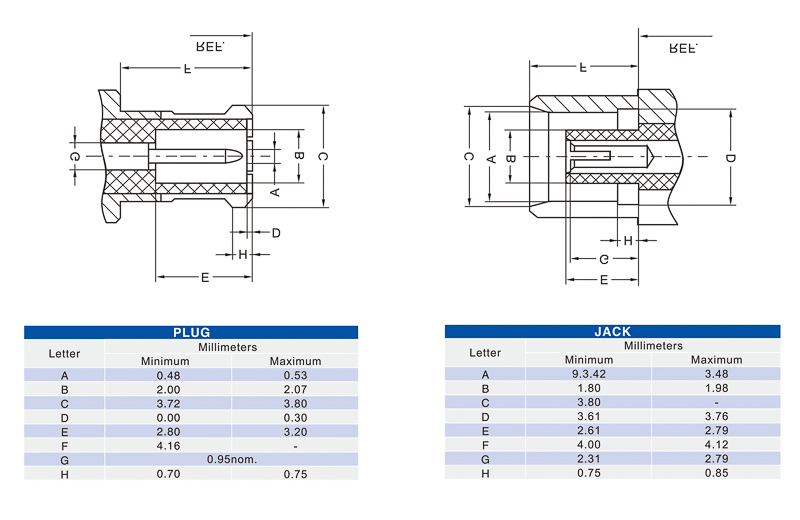

Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | PCB Mount (Through-Hole) |
| Termination Style | Solder Type |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +155°C |
| Shipping Weight | 0.01 kg |
