SPIDER Automation LuckFox Pico RV1103 Linux Micro Development Board | ARM Cortex-A7 & NPU
Description

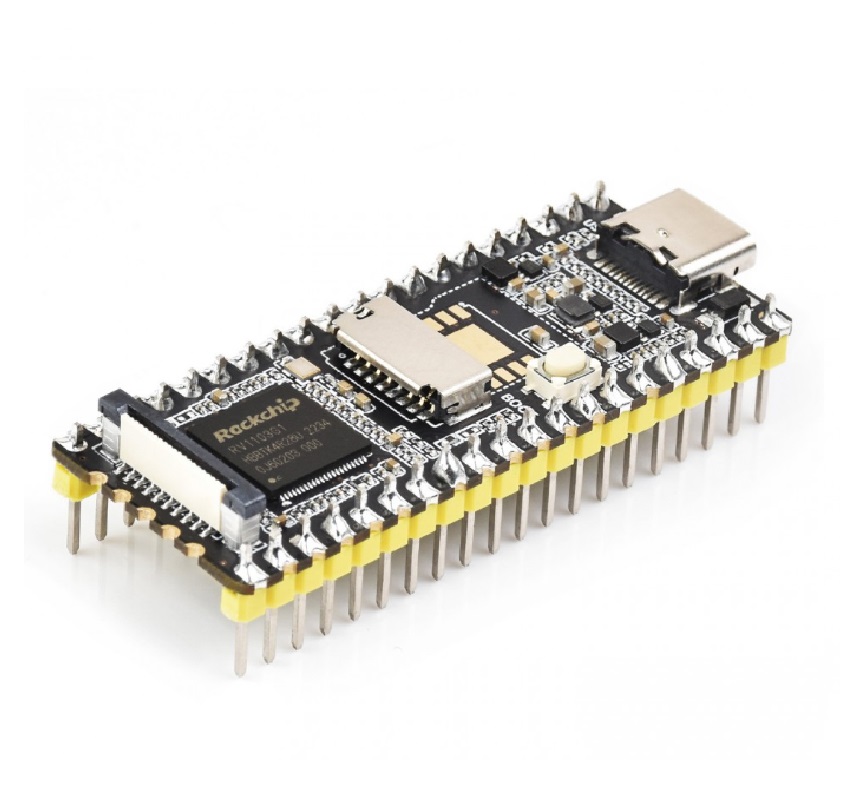

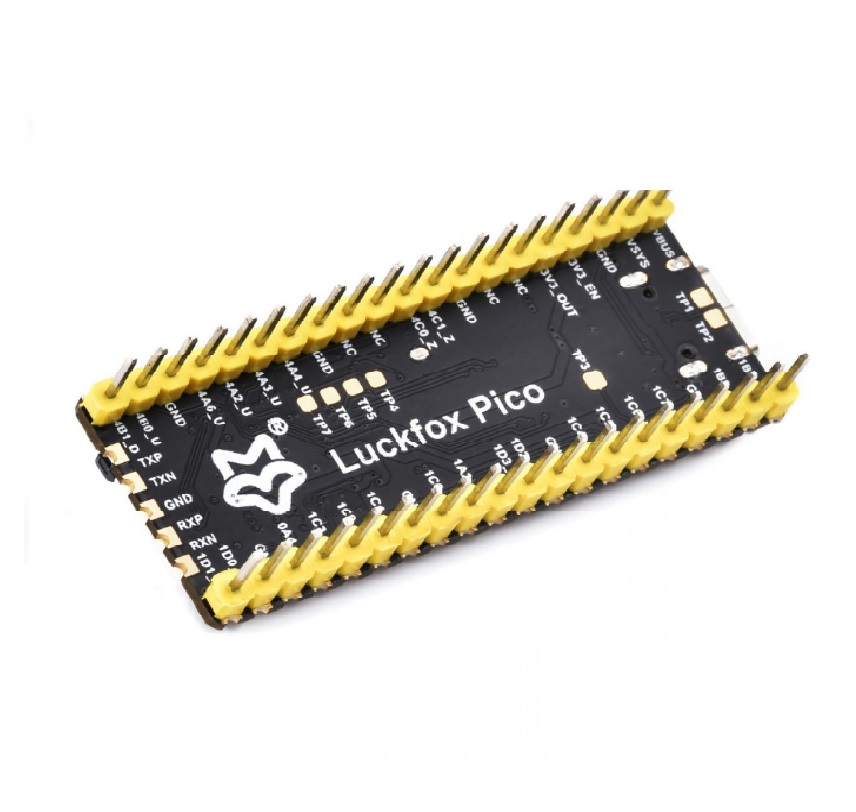

SPIDER Automation LuckFox Pico RV1103 Linux Micro Development Board is a highly compact and versatile Linux development board featuring a powerful combination of processors: an ARM Cortex-A7 core, a RISC-V co-processor, a dedicated Neural Processing Unit (NPU) for artificial intelligence, and an advanced Image Signal Processor (ISP). This unique hardware integration enables efficient real-time computation, machine learning acceleration, and high-quality image processing in a remarkably small form factor.
Designed for diverse development projects, the board comes equipped with essential system resources including 64MB DDR2 memory, a 2-lane MIPI CSI camera interface, USB 2.0 Host/Device connectivity, and an integrated 10/100M Ethernet controller with embedded PHY. With 24 accessible GPIO pins and robust documentation support via official developer wikis, it provides an exceptional platform for IoT edge devices, smart cameras, and embedded AI applications.
Key Features
- Advanced Multi-Core Processor: Combines a 1.2 GHz ARM Cortex-A7 core with a RISC-V MCU for balanced performance and low power consumption.
- Dedicated NPU (Neural Processing Unit): Hardware acceleration optimized for edge AI tasks, neural networks, and machine learning models.
- Integrated Image Signal Processor (ISP): Built-in image processing capabilities for enhanced camera feed quality and tuning.
- Memory & Storage: Equipped with 64MB DDR2 internal memory to support lightweight embedded Linux distributions.
- Camera Interface: Features a 2-lane MIPI CSI interface for direct connection to compatible camera modules.
- Network & USB Connectivity: Includes an onboard 10/100M Ethernet controller with embedded PHY and a versatile USB 2.0 Host/Device port.
- GPIO Expandability: Provides 24 programmable GPIO pins for connecting sensors, actuators, and peripheral modules.
Benefits
- Edge AI Capabilities: Built-in NPU lets developers run machine learning and computer vision projects locally without cloud dependence.
- Ultra-Compact Form Factor: Micro-sized footprint allows integration into space-constrained enclosures and wearable devices.
- Cost-Effective Linux Prototyping: Delivers full Linux environment capabilities at an accessible entry-level price point.
Applications
- Smart Camera & Machine Vision: Utilizing the MIPI CSI interface and built-in ISP for object detection, face recognition, and automated monitoring.
- Edge AI & IoT Nodes: Deploying lightweight neural networks for smart home appliances and industrial automation sensors.
- Embedded Linux Learning: Ideal development platform for engineers and students learning custom Linux kernel builds and device drivers.
- Robotics & Drone Control: Compact onboard processing unit for autonomous navigation and sensor data aggregation.
Package Includes
- 1 x LuckFox Pico RV1103 Linux Micro Development Board (Integrates ARM Cortex-A7 / RISC-V MCU / NPU / ISP Processors)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model Series | SPIDER Automation / LuckFox Pico Series |
| Model Part Number | LuckFox Pico RV1103 |
| Item Type | Compact Linux Micro Development Board |
| Main Processor Core | ARM Cortex-A7 @ 1.2 GHz + RISC-V MCU |
| AI & Image Processors | Integrated NPU (Neural Processing Unit) & ISP (Image Signal Processor) |
| System Memory (RAM) | 64MB DDR2 Memory |
| USB Interface | USB 2.0 Host / Device Port |
| Camera Interface | 2-Lane MIPI CSI Camera Connector |
| Ethernet Controller | 10/100M Ethernet Controller with Embedded PHY |
| General-Purpose I/O (GPIO) | 24 × Programmable GPIO Pins |
| Device Net Weight | 0.005 kg (5 g) |
| Package Shipping Dimensions | 9 cm × 7 cm × 1 cm |
