SPIDER Automation Waveshare VisionFive 2 RISC-V 4GB SBC | StarFive JH7110 Processor
Description
SPIDER Automation Waveshare VisionFive 2 RISC-V 4GB RAM Single Board Computer represents a major milestone in open-source hardware, delivering robust 64-bit RISC-V performance powered by the StarFive JH7110 quad-core SoC. Featuring an integrated 3D GPU supporting Vulkan 1.2, OpenGL ES 3.2, and OpenCL 3.0, the VisionFive 2 bridges the gap between experimental architecture and production-ready edge computing. Pre-configured with 4GB of LPDDR4 system memory and an included wireless Wi-Fi module, this board serves as a powerful standalone development workstation for software engineers, academic researchers, and IoT innovators running Debian Linux.
Designed for maximum peripheral integration, the board features an impressive array of I/O options including four high-speed USB 3.0 Type-A ports, dual RJ45 Gigabit Ethernet ports for advanced network routing, an onboard M.2 slot for high-performance NVMe storage expansion, and a TF card/eMMC socket. Multimedia capabilities are top-tier, supporting 4K@60fps multi-stream video decoding and 1080p@30fps video encoding alongside flexible display routing through HDMI 2.0 (up to 4K@30fps) and dual MIPI DSI connectors. Power management has also been heavily optimized, supporting flexible USB Type-C Power Delivery (PD 2.0), Quick Charge (QC 2.0/3.0) adapters ranging from 5V to 20V, standard 5V DC supplies, and optional Power-over-Ethernet (PoE) modules.
Key Features
- StarFive JH7110 RISC-V SoC: RV64GC quad-core 64-bit processor core operating up to 1.5 GHz with advanced instruction set efficiency.
- Integrated 3D Graphics Engine: Powered by the IMG BXE-4-32 GPU with native support for Vulkan 1.2, OpenGL ES 3.2, and OpenCL 3.0.
- 4GB LPDDR4 System Memory: Outfitted with 4GB RAM to smoothly compile code, run desktop environments, and execute complex multitasking workflows.
- High-Definition Video Processing: Supports 4K@60fps H.264/H.265 multi-stream decoding and 1080p@30fps video encoding.
- Flexible Power Delivery (PD): Accepts 5V to 20V fixed inputs via USB-C, USB-C PD 2.0, QC 2.0/3.0 adapters, 5V GPIO pin input, and PoE modules.
- Robust Networking & Connectivity: Dual RJ45 Gigabit Ethernet ports, 4 x USB 3.0 Type-A ports, M.2 SSD slot, and included wireless Wi-Fi module.
- Display & Camera Interfacing: HDMI 2.0 output (4K@30fps / 2K@60fps), MIPI DSI display headers, and a 2-lane MIPI CSI camera port.
- Raspberry Pi Compatible GPIO: Standard 40-pin header matching popular HAT layouts for effortless hardware prototyping.
Benefits
- Cutting-Edge RISC-V Ecosystem: Fully equipped hardware baseline for exploring, porting, and developing native software on open-standard RISC-V silicon.
- Advanced Power Versatility: Multiple power supply pathways (USB-C PD, QC, regular 5V, or PoE) eliminate power sourcing restrictions during field deployments.
- High-Speed Peripheral Bandwidth: Quad USB 3.0 ports and dual gigabit network interfaces make it ideal for network attached storage (NAS) and gateway setups.
- Turnkey Out-of-the-Box Kit: Includes the 4GB RAM VisionFive 2 board and onboard Wi-Fi module for immediate wireless networking connectivity.
Applications
- Edge Computing & IoT Gateways: Decentralized data processing and smart routing hubs utilizing dual gigabit ethernet links.
- Open-Source Software Development: Compiling, testing, and debugging native Linux applications on physical RISC-V hardware.
- Digital Signage & Media Players: 4K video playback terminals, kiosks, and multi-display hubs running Debian.
- Embedded Systems Education: University and technical institute engineering labs teaching modern computer architecture and SoC design.
- Network Attached Storage (NAS): High-speed file servers leveraging M.2 NVMe storage expansion and USB 3.0 data transfer speeds.
Package Includes

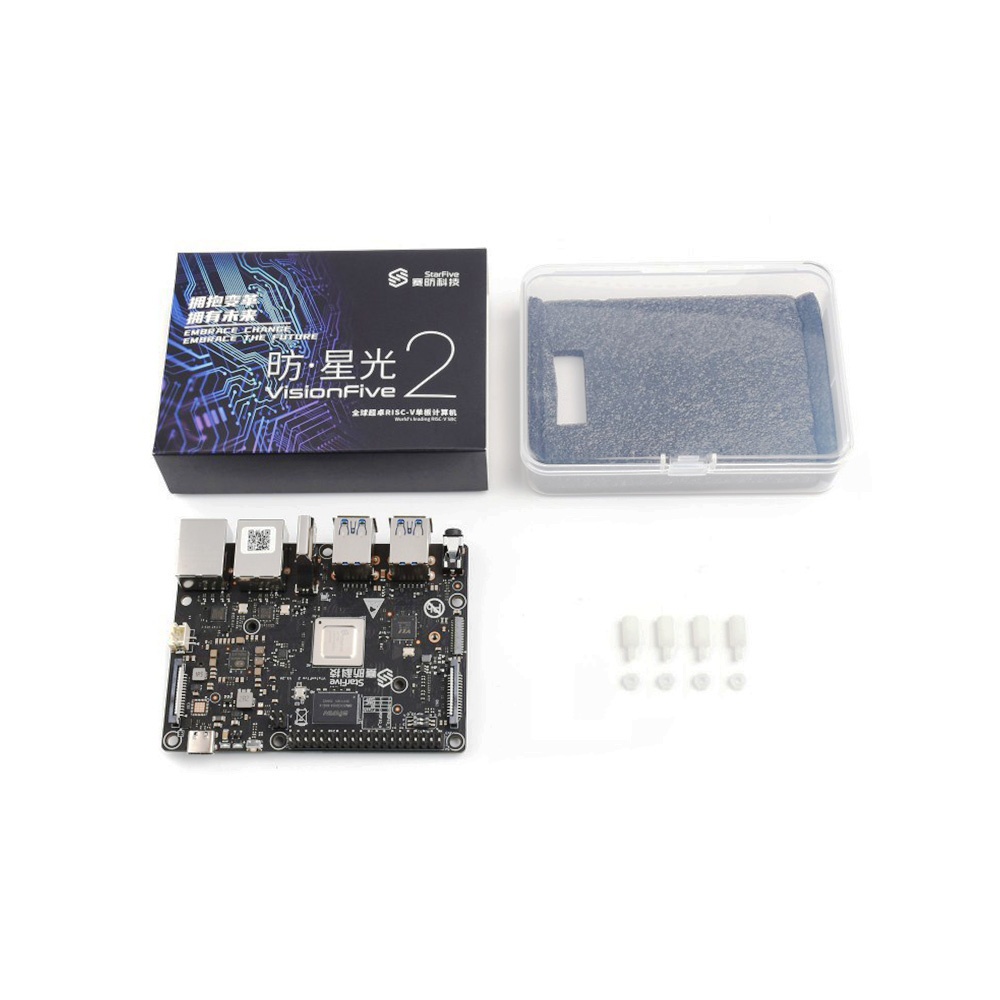

- 1 x VisionFive 2 RISC-V 4GB RAM Single Board Computer (StarFive JH7110 Processor with Integrated 3D GPU, Linux/Debian Compatible, with Wi-Fi Module)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Waveshare VisionFive 2 Series |
| Item Type | RISC-V Single Board Computer (SBC) & Development Kit |
| Model Order Code / SKU | VisionFive 2 4GB / SKU-SPIDER-VISIONFIVE2-4GB |
| Main Processor (SoC) | StarFive JH7110 (RISC-V U74 Quad-Core 64-bit RV64GC ISA) |
| Processor Clock Speed | Operating Frequency up to 1.5 GHz |
| Graphics Processor (GPU) | IMG BXE-4-32 (Supports Vulkan 1.2, OpenGL ES 3.2, & OpenCL 3.0) |
| System Memory (RAM) | 4 GB LPDDR4 RAM |
| Storage Interfaces | TF Card Slot, eMMC Socket, & M.2 Slot (for NVMe SSD) |
| Display & Camera Outputs | HDMI 2.0 (4K@30fps), 1 × 2-Lane MIPI DSI, 1 × 4-Lane MIPI DSI, & MIPI CSI 2-Lane |
| USB & Networking Ports | 4 × USB 3.0 Type-A Ports & Dual RJ45 Gigabit Ethernet Ports |
| Power Supply Input Options | USB Type-C (5V-20V, USB-C PD 2.0, QC 3.0/2.0), 5V via 40-Pin GPIO, & PoE Port (External Module Required) |
| Package Shipping Weight | 0.170 kg (170 g) |
| Package Shipping Dimensions | 14 cm × 10 cm × 5 cm |
