Description
The HCPL-316J-500E is a highly sophisticated, integrated power control solution designed to streamline the design of isolated IGBT gate drive circuits. By consolidating all essential gate drive components, fault protection circuitry, and feedback monitoring into a single SO-16 (SMD-16) package, this device drastically reduces component count and PCB space requirements.
Engineered for high-power applications, it features TTL-compatible input logic for seamless microcontroller interfacing and can drive IGBTs rated up to 150A and 1200V. Key safety features include an optically isolated fault feedback status, integrated fail-safe protection, and a ‘soft’ turn-off mechanism that protects the IGBT during fault conditions.

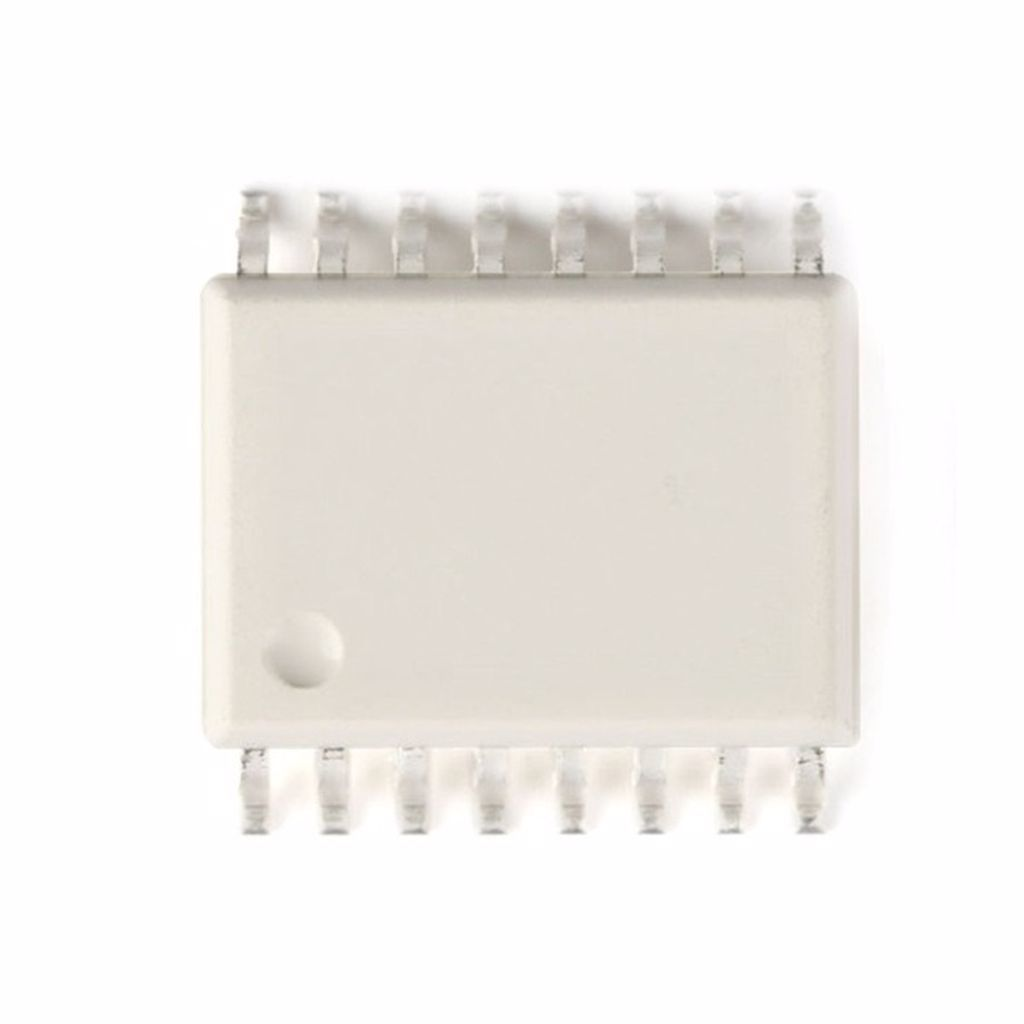

Note: Product images are for reference only. The actual product may vary in appearance or manufacturer marking depending on stock availability.
Features
- Integrated Power Control: Combines gate drive, fault protection, and feedback in one SMD-16 package.
- High Power Capacity: Capable of driving IGBTs up to 150A / 1200V.
- Advanced Safety: Includes ‘soft’ IGBT turn-off and integrated fail-safe protection.
- Diagnostic Feedback: Provides optically isolated FAULT status monitoring.
- Fast Switching: 500ns maximum switching speed for high-efficiency operation.
- High Noise Immunity: 15kV/µs minimum Common Mode Rejection (CMR) @ VCM=1500V.
- User Configurable: Supports Inverting, Non-inverting, and Auto-shutdown configurations.
Benefits
- Significantly simplifies high-power gate drive design.
- Provides robust protection against short-circuit and over-current conditions.
- Reduces board space by integrating multiple discrete functions into one component.
- Compatible with standard CMOS/TTL logic, allowing for direct microcontroller integration.
- Wide operating temperature range (-40°C to +100°C) for industrial reliability.
Applications
- Isolated IGBT Gate Driving
- Industrial Motor Control and Drives
- Inverter and Converter Systems
- Renewable Energy Power Conversion
- Uninterruptible Power Supplies (UPS)
Package Includes
- 1 x HCPL-316J-500E Integrated IGBT Gate Drive Optocoupler (SMD-16)
Specifications
| Parameter | Specification |
|---|---|
| Product Name | HCPL-316J-500E |
| Device Type | Integrated IGBT Gate Drive Optocoupler |
| Package / Case | SMD-16 (SO-16) |
| Mounting Type | Surface Mount (SMD) |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
