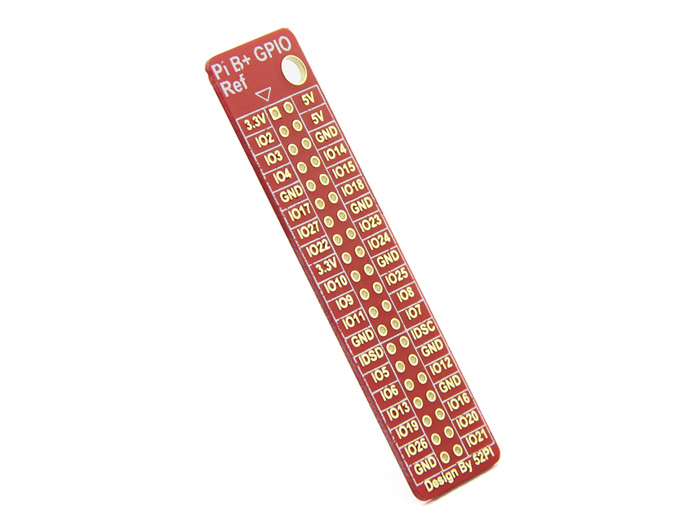

SPIDER Automation 40 Pin GPIO Reference Board For Raspberry Pi B+ / Raspberry Pi 2
Description
SPIDER Automation 40 Pin GPIO Reference Board For Raspberry Pi B+ / Raspberry Pi 2 is a simple GPIO reference accessory designed to help identify the function of pins on a Raspberry Pi 40-pin GPIO header. The board can be placed onto the GPIO header so that the purpose of individual pins can be identified conveniently while working with Raspberry Pi hardware.
The reference board is designed for Raspberry Pi boards using 40-pin GPIO headers. The supplied compatibility information includes Model A+, Model B+, Pi 2, Pi 3, and Pi Zero. It is intended to make Raspberry Pi hardware projects and GPIO connections easier and quicker by providing a convenient pin reference directly at the GPIO header.
The board has a compact 62 × 11 × 2 mm form factor and a specified weight of 3 g. An integrated keyring hole allows the board to be carried conveniently and kept available as a portable GPIO reference accessory.
Key Features
- 40 Pin GPIO Reference: Provides a reference for identifying the functions of the Raspberry Pi 40-pin GPIO header.
- For Raspberry Pi B+ / Raspberry Pi 2: Product is specified as a 40-pin GPIO reference board for Raspberry Pi B+ and Raspberry Pi 2.
- 40 I/O Pin Reference: Covers the 40-pin GPIO header arrangement.
- GPIO Header Placement: Can be put onto the Raspberry Pi GPIO header for convenient pin identification.
- Model A+ Compatibility: Listed as compatible with Raspberry Pi Model A+ 40-pin GPIO headers.
- Model B+ Compatibility: Listed as compatible with Raspberry Pi Model B+ 40-pin GPIO headers.
- Pi 2 Compatibility: Listed as compatible with Raspberry Pi Pi 2.
- Pi 3 Compatibility: Listed as compatible with Raspberry Pi Pi 3.
- Pi Zero Compatibility: Listed as compatible with Raspberry Pi Pi Zero.
- Compact Form Factor: Measures 62 × 11 × 2 mm.
- Keyring Hole: Includes a hole for convenient carrying as a portable GPIO reference.
Benefits
- Quick Pin Identification: Makes it easier to determine what each Raspberry Pi GPIO pin does.
- Convenient GPIO Reference: Provides a readily accessible pin reference while working directly with the Raspberry Pi GPIO header.
- Simplifies Connections: Helps make Raspberry Pi GPIO-based projects easier and quicker to assemble.
- Portable Reference: The keyring hole allows the board to be carried and kept available when working with Raspberry Pi systems.
- Compact Storage: The small 62 × 11 × 2 mm form factor requires minimal storage space.
Applications
- Raspberry Pi GPIO Reference: For identifying individual pins on compatible 40-pin Raspberry Pi GPIO headers.
- Raspberry Pi Hardware Assembly: Useful while assembling systems that require connections to the GPIO header.
- GPIO Wiring: Can be used as a convenient pin reference when making GPIO connections.
- Raspberry Pi Development: Suitable for Raspberry Pi-based hardware development involving the 40-pin GPIO header.
- Portable GPIO Reference: Useful for carrying a GPIO pin reference when working with compatible Raspberry Pi boards in different locations.
Package Includes
- 1 × 40 Pin GPIO Reference Board For Raspberry Pi B+ / Raspberry Pi 2
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 40 Pin GPIO Reference Board |
| Item Type | Other Accessories |
| Primary Compatibility | Raspberry Pi B+ / Raspberry Pi 2 |
| Compatible Raspberry Pi Models | Model A+, Model B+, Pi 2, Pi 3, Pi Zero |
| Number of I/O Pins | 40 |
| GPIO Header Type | 40 Pin GPIO Header |
| Primary Function | GPIO Pin Reference |
| Color | Red |
| Board Dimensions (L × W × H) | 62 × 11 × 2 mm |
| Board Weight | 3 g |
| Carry Feature | Keyring Hole |
