DS3234SN#T&R High-Accuracy RTC – Integrated TCXO, SRAM, and SPI Interface

Description

The DS3234SN#T&R is an industry-leading, extremely accurate SPI-bus Real-Time Clock (RTC) that integrates a temperature-compensated crystal oscillator (TCXO) and a quartz crystal into a single compact package. This high level of integration enhances long-term accuracy and significantly simplifies design by removing the need for external timing components. The device also features 256 bytes of battery-backed SRAM, providing secure, persistent storage for critical system data during power failures.

Designed for demanding professional applications, the DS3234 monitors its VCC supply via a precision voltage reference and comparator circuit, ensuring reliable operation. It maintains comprehensive timekeeping (seconds, minutes, hours, day, date, month, and year) with automatic leap-year compensation. With a 4MHz SPI interface, two programmable alarms, and a high-precision digital temperature sensor output, the DS3234 is the ideal timing solution for servers, telematics, utility meters, and GPS systems.

Key Features

• Extreme Accuracy: Integrated TCXO provides ±3.5ppm accuracy, ensuring reliable timekeeping for long-term deployments.
• On-Board Storage: Includes 256 bytes of battery-backed SRAM for data logging or parameter storage.
• High-Speed Interface: 4MHz SPI bus supports Modes 1 and 3 for rapid data transfer with microcontrollers.
• Precision Monitoring: Features an integrated digital temperature sensor (±3°C accuracy) and a precision VCC monitor.
• Advanced Timing: Provides two programmable time-of-day alarms and a programmable square-wave output.
• Battery Management: Supports continuous timekeeping via a battery-backup input, optimized for low-power operation.

Applications

• Servers & Networking: Precision timestamping for logs and synchronized network events.
• Utility Power Meters: Reliable timing for billing and consumption monitoring in energy infrastructure.
• Telematics & GPS: Accurate tracking for fleet management and location-based services.
• Industrial Systems: High-precision timing reference for robust, mission-critical electronic hardware.

Package Includes

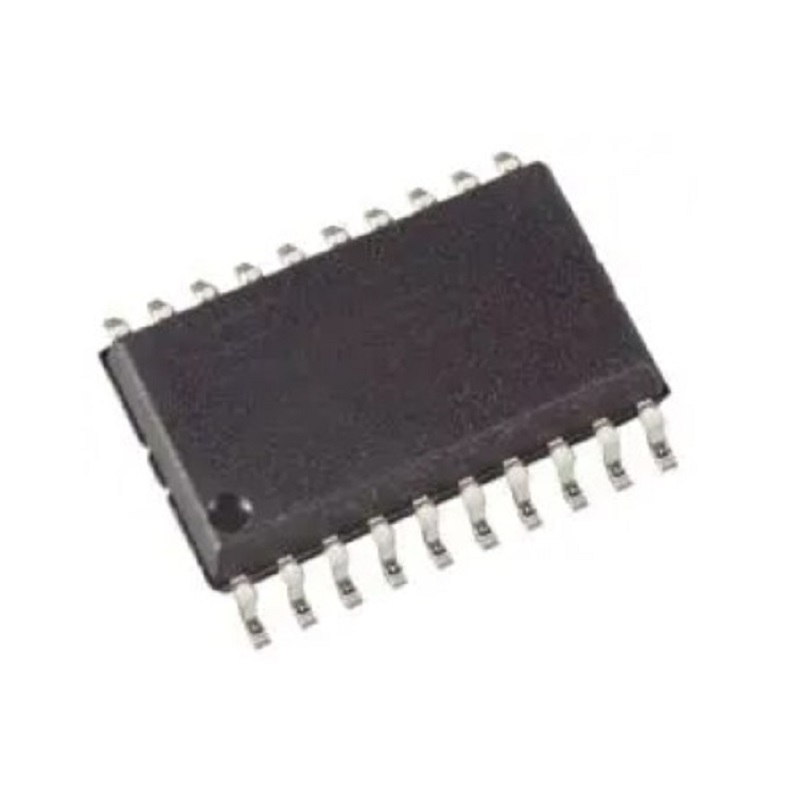

• 1 x DS3234SN#T&R RTC IC (SOIC-20)

Technical Specifications

Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete technical parameters, please refer to the official device datasheet.
