Description
The M41T0M6F by STMicroelectronics is a highly reliable Real-Time Clock (RTC) IC designed to provide precise time and date tracking for a wide variety of electronic systems. It manages comprehensive timekeeping data, including Day, Date, Month, Year, and Century, with a standard HH:MM:SS clock format. This makes it an ideal solution for embedded systems, consumer appliances, and any application requiring accurate timestamping and scheduling.
The device communicates over the industry-standard I²C protocol, ensuring seamless integration with microcontrollers and other digital components. Operating across a flexible supply voltage range of 2V to 5.5V and featuring low power consumption, the M41T0M6F is particularly well-suited for battery-powered designs and energy-efficient electronics. It is housed in an 8-pin SOIC package, offering a robust and familiar footprint for straightforward PCB assembly.
Key Features
- Comprehensive Calendar: Tracks Day, Date, Month, Year, and Century, with time displayed in HH:MM:SS format.
- I²C Interface: Enables easy and efficient communication with host processors using the industry-standard Inter-Integrated Circuit protocol.
- Low Power Consumption: Optimized for efficiency, making it perfect for battery-operated devices and low-energy systems.
- Reliable Performance: Delivers high stability and accuracy in timekeeping operations across a wide temperature range.
- Compact SOIC-8 Package: Industry-standard 8-pin footprint for easy integration and reliable solder connections.
Application
- Embedded Systems: Essential for maintaining system time in industrial controllers, gateways, and edge devices.
- Consumer Appliances: Provides accurate scheduling and timekeeping functionality for smart home devices and appliances.
- Battery-Powered Hardware: Excellent for portable electronics due to its low-power operational characteristics.
- Data Loggers & Instrumentation: Ensures precise timestamping of events and measured data.
Package Includes
- 1 x M41T0M6F RTC IC (SOIC-8)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device | M41T0M6F |
| Time/Date Format | HH:MM:SS; Day/Date/Month/Year/Century |
| Supply Voltage | 2V – 5.5V |
| Interface | I²C |
| Package Type | SOIC-8 |
| Operating Temp | -40°C to +85°C |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |

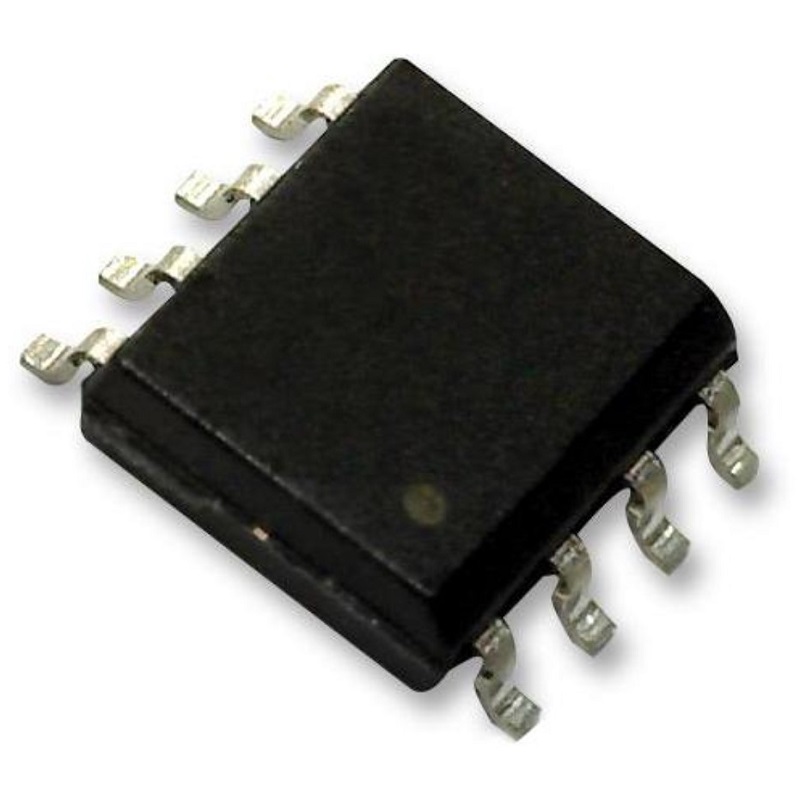

Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete technical parameters, please refer to the official device datasheet.
