Description
The JK57HS112-3004-17F NEMA 23 Hybrid Stepper Motor is a high-performance, industrial-grade solution tailored for heavy-duty CNC machinery. Generating a powerful 30.61 kg-cm of holding torque at 4A per phase, this motor excels in applications where standard NEMA 17 motors lack the necessary force. It offers superior torque delivery at higher speeds, making it the ideal choice for demanding CNC routers, milling machines, and automated industrial systems. Utilizing a simple open-loop control mechanism, this motor provides high precision and reliability without the need for complex, costly electronic drive systems.
Key Features
- Industrial Powerhouse: Significantly higher torque capacity than NEMA 17 motors, providing the muscle required for large-scale CNC applications.
- High Precision: Input pulses directly dictate rotation, delivering a step accuracy of 3% to 5% per step for reliable positioning.
- Responsive Operation: Engineered for quick and stable responses to starting, stopping, and reversing signals.
- Cost-Effective Reliability: Efficient open-loop design minimizes the need for complex control circuitry, reducing total system cost.
- Durable & Secure: Precision-machined D-type shaft ensures a tight, slip-free fit with pulleys and drive gears for consistent performance.
Important Operational Notes
- Dimensions and weight specifications are subject to a margin of error of ±2%.
- Proper mounting and alignment are critical to avoid undesirable mechanical resonances.
- Not designed for continuous operation at extremely high rotational speeds.
Package Includes

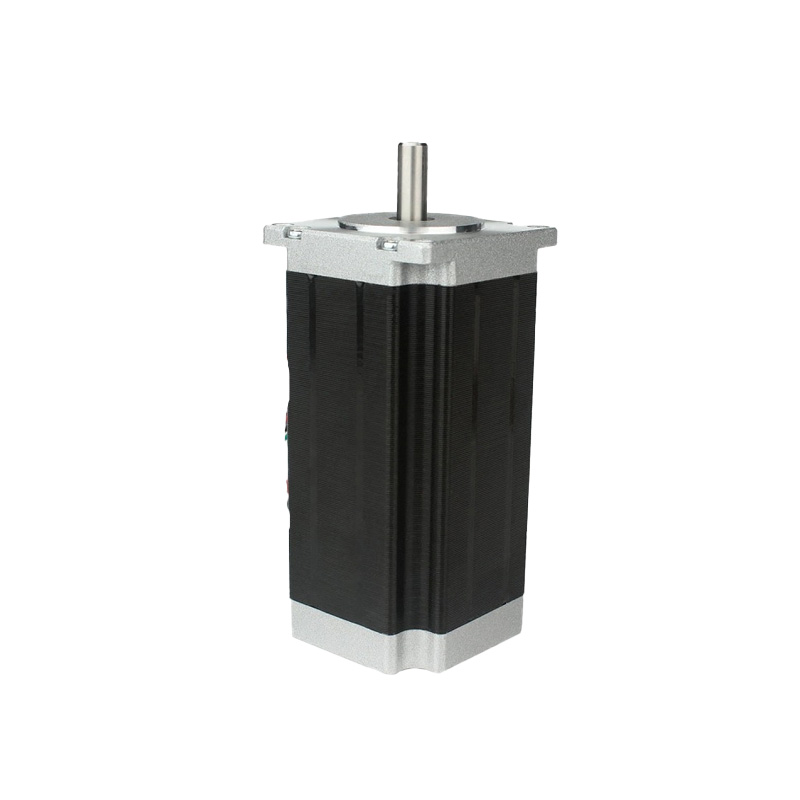

- 1 x JK57HS112-3004-17F NEMA 23 30.61 kg-cm Hybrid Bipolar Stepper Motor (D-Type Shaft)
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | NEMA 23 Stepper Motor |
| Model No. | JK57HS112-3004-17F |
| Shaft Type | D-Type |
| Step Angle | 1.8° |
| Operating Voltage | 3.6 VDC |
| Supply Current | 4 A / Phase |
| Holding Torque | 30.61 kg-cm |
| Number of Leads | 4 |
| Resistance | 1.13 Ω |
| Inductance | 3.6 |
