Description

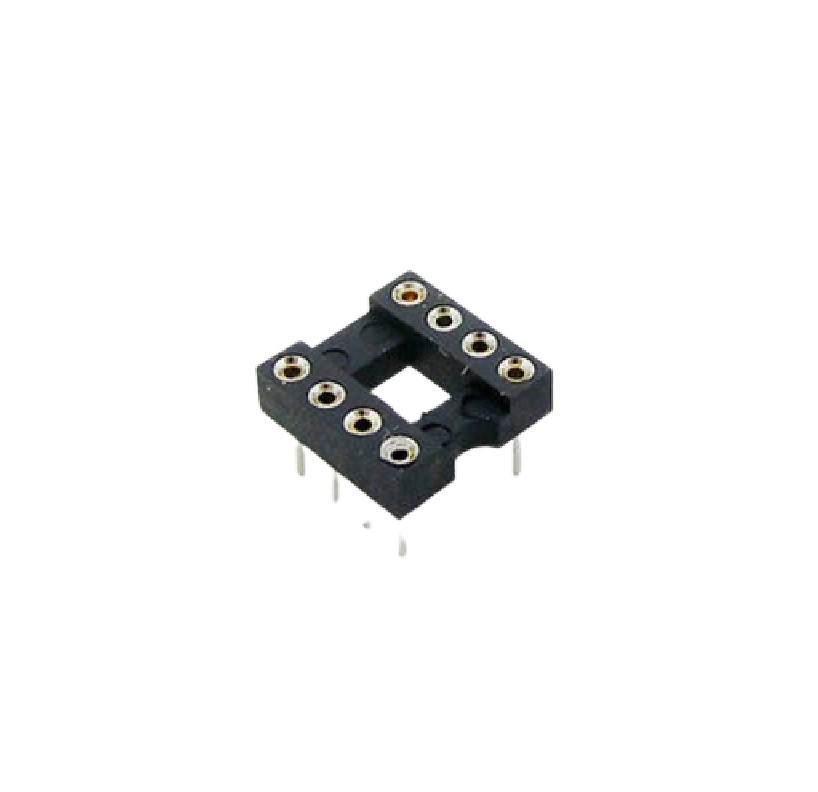

The DIP 8 IC Socket Precision Turned Pin Open Frame PCB Mount Socket is a high-quality 8-pin integrated circuit socket designed for secure and reliable mounting of DIP-8 ICs on printed circuit boards. Featuring precision-machined turned pin contacts, this socket provides superior electrical conductivity, firm IC retention, and excellent durability compared to standard stamped-pin sockets. It allows integrated circuits to be installed or replaced without direct soldering, protecting valuable components from soldering heat and simplifying maintenance.
Designed with a standard 2.54mm pin pitch, this open-frame IC socket is compatible with a wide range of DIP-8 integrated circuits, including operational amplifiers, EEPROMs, timers, comparators, interface ICs, and microcontrollers. Its compact size, precision construction, and dependable electrical performance make it ideal for PCB manufacturing, embedded systems, industrial electronics, laboratory testing, prototyping, repair work, and educational projects.
Features
- High-quality DIP 8 precision turned pin IC socket.
- Designed for standard DIP-8 integrated circuits.
- Precision-machined turned pin contacts for reliable electrical connection.
- Open-frame design for compact PCB installation.
- Standard 2.54mm pin pitch.
- Provides secure IC retention and easy replacement.
- Protects ICs from soldering heat damage.
- Excellent electrical conductivity and mechanical strength.
- Suitable for repeated IC insertion and removal.
- Compact, durable, and lightweight construction.
Benefits
- Extends the life of expensive integrated circuits.
- Allows quick IC replacement without PCB rework.
- Reduces maintenance time during servicing.
- Ideal for circuit testing, debugging, and development.
- Provides stable signal transmission for reliable circuit performance.
- Suitable for professional as well as hobby electronics applications.
Applications
- PCB prototyping
- Embedded systems development
- Microcontroller development boards
- Operational amplifier circuits
- Timer IC applications (NE555, etc.)
- Comparator circuits
- EEPROM and memory IC mounting
- Industrial automation equipment
- Control systems
- Instrumentation circuits
- Communication devices
- Consumer electronics
- Electronics repair and servicing
- Educational electronics laboratories
- DIY electronics projects
- Research and development projects
- OEM PCB manufacturing
- Electronic testing equipment
Package Includes
- 1 × DIP 8 Precision Turned Pin Open Frame PCB Mount IC Socket
Specifications
| Parameter | Value |
|---|---|
| Product Type | DIP 8 Precision Turned Pin IC Socket |
| Socket Type | Open Frame PCB Mount |
| Number of Pins | 8 |
| Compatible IC Package | DIP-8 |
| Pin Type | Precision Turned Pins |
| Socket Pitch | 2.54mm |
| Mounting Type | Through Hole PCB Mount |
| Length | 10mm |
| Shipping Weight | 0.001kg |
| Shipping Dimensions | 3 × 3 × 1cm |
