Description

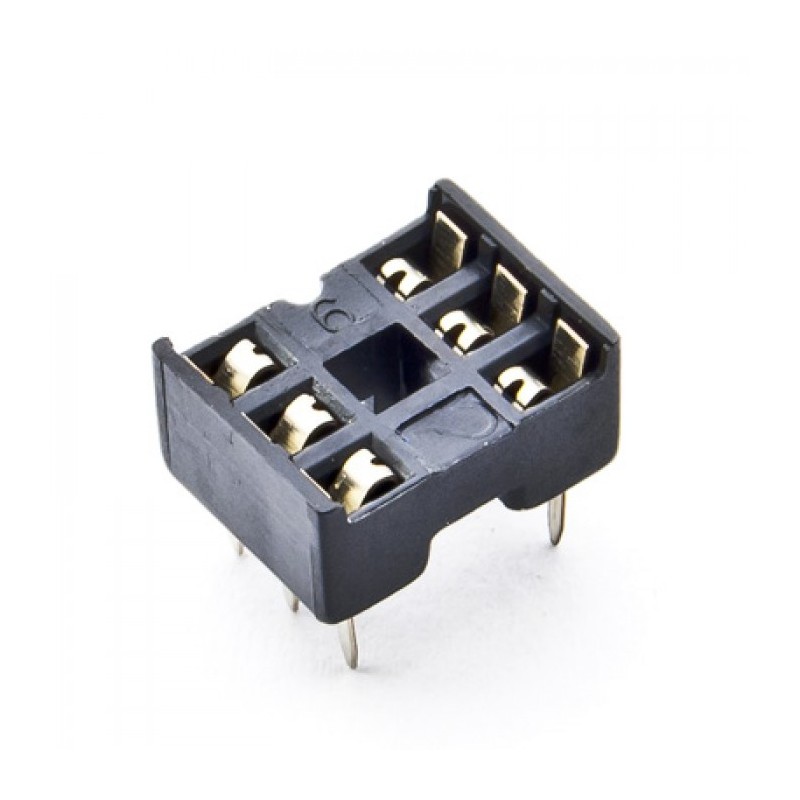

The 6 Pin DIP IC Socket Base Adaptor (Pack of 10) is a high-quality PCB mount IC socket designed for securely mounting and replacing 6-pin Dual In-line Package (DIP) integrated circuits without directly soldering the IC onto the PCB. Using an IC socket protects valuable and temperature-sensitive ICs from soldering heat while allowing easy installation, removal, replacement, and programming whenever required. This makes it an ideal solution for electronics prototyping, testing, servicing, and production.
Manufactured with phosphor bronze contacts and tin-plated terminals, this JDEC-compliant DIP socket provides excellent electrical conductivity, reliable mechanical strength, and long-lasting performance. The molded orientation notch ensures proper IC alignment during installation, while the precision contact design offers secure retention with smooth insertion and extraction. It is widely used in embedded systems, industrial electronics, PCB development, repair work, laboratory testing, OEM manufacturing, and educational electronics projects.
Features
- High-quality 6-pin DIP IC socket base adaptor.
- Designed for direct through-hole PCB mounting.
- Compatible with standard 6-pin DIP integrated circuits.
- JDEC compliant for reliable compatibility.
- Molded orientation notch for correct IC alignment.
- Protects temperature-sensitive ICs from soldering heat.
- Allows easy IC replacement without PCB rework.
- Phosphor bronze contacts provide stable electrical conductivity.
- Tin-plated contacts improve corrosion resistance and durability.
- Low insertion and extraction force for smooth IC installation.
- Suitable for repeated IC insertion and removal.
- Compact, lightweight, and durable construction.
Benefits
- Protects valuable ICs from heat damage during soldering.
- Simplifies IC replacement, testing, and programming.
- Reduces maintenance time and repair costs.
- Improves PCB reliability and long-term serviceability.
- Provides secure electrical connections for dependable circuit operation.
- Ideal for both prototype development and production use.
Applications
- PCB prototyping
- Embedded system development
- Industrial automation equipment
- Microcontroller programming circuits
- Optocoupler IC mounting
- Operational amplifier circuits
- Signal isolation circuits
- Electronic product development
- OEM PCB manufacturing
- Electronics repair and servicing
- Instrumentation equipment
- Communication devices
- Consumer electronics
- Educational electronics laboratories
- DIY electronics projects
- Circuit testing and debugging
- Research and development projects
- Removable IC mounting applications
Package Includes
- 10 × 6 Pin DIP IC Socket Base Adaptors
Specifications
| Parameter | Value |
|---|---|
| Product Type | 6 Pin DIP IC Socket Base Adaptor |
| Package Type | DIP (Dual In-line Package) |
| Number of Pins | 6 |
| Mounting Type | Through Hole PCB Mount |
| PCB Mounting | Direct PCB Mount |
| Standard Compliance | JDEC Compliant |
| Current Handling Capacity | 1A |
| Number of Contact Points | 6 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature | -25°C to +85°C |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Maximum Insertion Force | 340g per Contact |
| Maximum Extraction Force | 80g per Contact |
| Length | 7.7mm |
| Width | 10mm |
| Height | 4mm |
| Weight | 1g (Approx. Each) |
| Package Quantity | 10 Pieces |
| Shipping Weight | 0.005kg |
| Shipping Dimensions | 6 × 4 × 2cm |
