Description

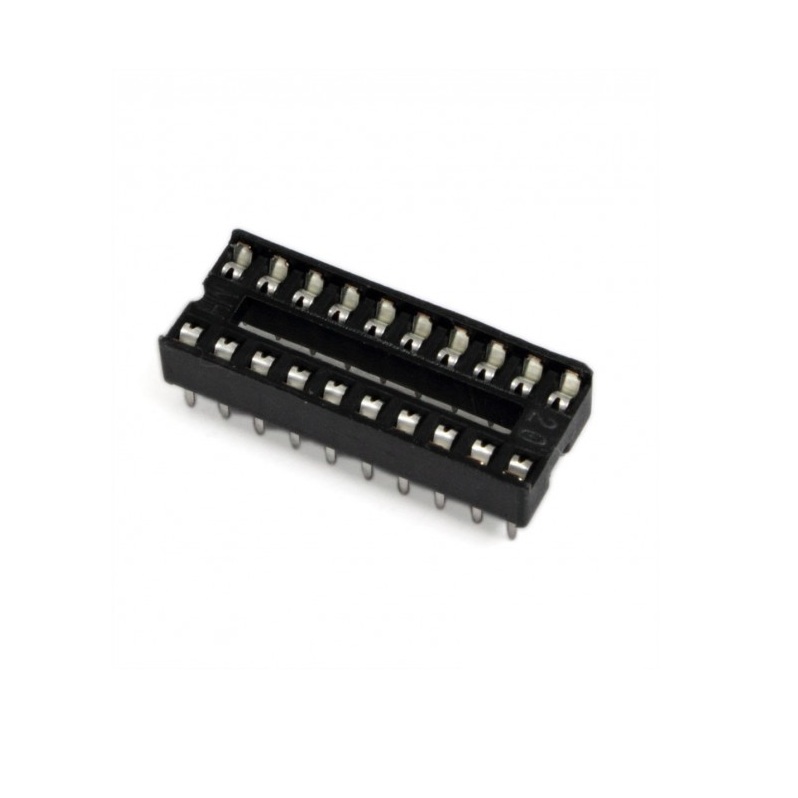

The 20 Pin DIP IC Socket Base Adaptor (Pack of 5) is a premium-quality PCB mount IC socket designed for securely mounting and replacing 20-pin Dual In-line Package (DIP) integrated circuits without directly soldering the IC onto the PCB. Using an IC socket protects valuable and temperature-sensitive integrated circuits from excessive soldering heat while allowing quick installation, removal, replacement, and reprogramming whenever required. It is an excellent solution for electronics development, testing, servicing, and production.
Manufactured with phosphor bronze contacts and tin-plated terminals, this JDEC-compliant DIP IC socket offers excellent electrical conductivity, strong mechanical performance, and long service life. The molded orientation notch ensures proper IC alignment during installation, while the precision contact design provides secure retention with smooth insertion and removal. Ideal for embedded systems, industrial automation, microcontroller programming, PCB prototyping, electronic repair, OEM manufacturing, and educational electronics projects.
Features
- High-quality 20-pin DIP IC socket base adaptor.
- Designed for direct through-hole PCB mounting.
- Compatible with standard 20-pin DIP integrated circuits.
- JDEC compliant for reliable compatibility.
- Molded orientation notch ensures correct IC installation.
- Protects temperature-sensitive ICs from soldering heat.
- Allows quick IC replacement without PCB rework.
- Phosphor bronze contacts provide stable electrical conductivity.
- Tin-plated contacts offer improved corrosion resistance.
- Low insertion and extraction force for easy IC handling.
- Suitable for repeated IC insertion and removal.
- Compact, lightweight, and durable construction.
Benefits
- Protects expensive ICs from soldering damage.
- Enables fast IC replacement during maintenance.
- Reduces repair time and PCB rework.
- Improves circuit reliability and serviceability.
- Provides secure electrical connections for stable operation.
- Ideal for prototype development and production applications.
Applications
- Microcontroller development boards
- Embedded system design
- Industrial automation systems
- PLC control equipment
- EPROM and EEPROM programming
- PCB prototyping
- Electronic circuit development
- OEM PCB manufacturing
- Electronics repair and servicing
- Instrumentation equipment
- Communication systems
- Consumer electronics
- Educational electronics laboratories
- DIY electronics projects
- Circuit testing and debugging
- Engineering laboratories
- Research and development projects
- Removable IC mounting applications
Package Includes
- 5 × 20 Pin DIP IC Socket Base Adaptors
Specifications
| Parameter | Value |
|---|---|
| Product Type | 20 Pin DIP IC Socket Base Adaptor |
| Package Type | DIP (Dual In-line Package) |
| Number of Pins | 20 |
| Mounting Type | Through Hole PCB Mount |
| PCB Mounting | Direct PCB Mount |
| Standard Compliance | JDEC Compliant |
| Current Handling Capacity | 1A |
| Number of Contact Points | 20 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature | -25°C to +85°C |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Maximum Insertion Force | 340g per Contact |
| Maximum Extraction Force | 80g per Contact |
| Length | 25mm |
| Width | 10mm |
| Height | 4mm |
| Weight | 1g (Approx. Each) |
| Package Quantity | 5 Pieces |
| Shipping Weight | 0.005kg |
| Shipping Dimensions | 6 × 4 × 2cm |
