Description

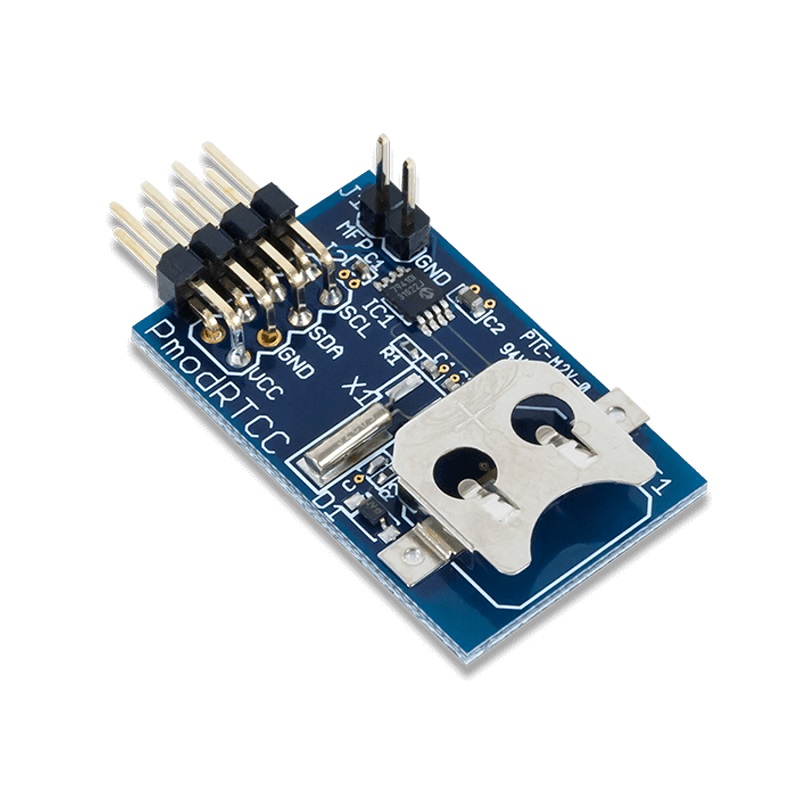

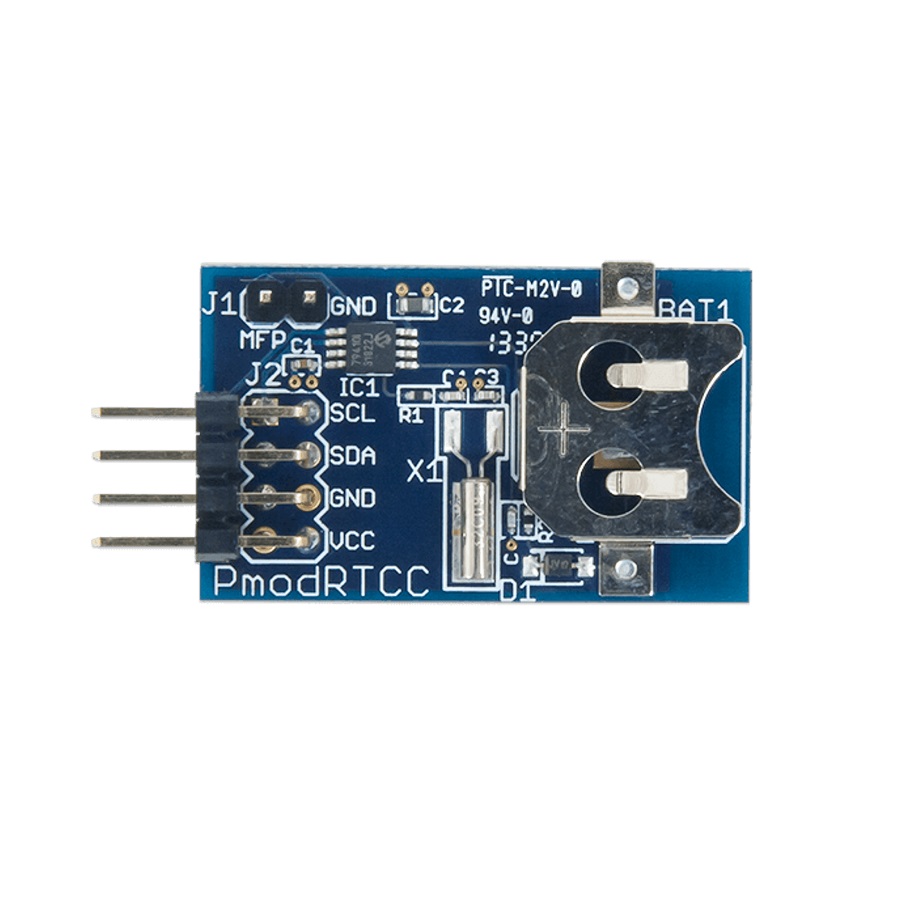

The Digilent Pmod RTCC is a compact and versatile Real-Time Clock/Calendar module designed to easily add precise timekeeping capabilities to your embedded systems and IoT projects. This module features a built-in lithium coin cell backup, ensuring that your system keeps track of time even when the main power is disconnected. With its integrated EEPROM and SRAM, it provides not only time-tracking but also non-volatile and volatile storage space for configuration settings or critical data logging.
Engineered for rapid prototyping, the Pmod RTCC communicates via the industry-standard I²C interface and adheres to the Digilent Pmod Interface Specification, ensuring seamless compatibility with a wide range of development boards. Whether you are building a data logger, a time-triggered controller, or a connected home device, the Pmod RTCC provides a reliable, plug-and-play solution.
Key Features
- Reliable Timekeeping: Integrated real-time clock/calendar with lithium coin cell backup for continuous operation.
- Flexible Storage: Includes 128 bytes of non-volatile EEPROM and 64 bytes of SRAM for your data.
- Advanced Functionality: Features two independent alarms and a multi-function pin capable of generating a configurable square wave.
- Easy Connectivity: Uses a standard 2×4-pin connector with an I²C interface; fully compliant with Digilent Pmod specifications.
- Compact Footprint: Small PCB size (3.3 cm × 2.0 cm) makes it perfect for space-constrained designs.
- Developer Friendly: Comprehensive support provided via available libraries and example code in the Digilent resource center.
Application
- IoT Applications: Ideal for time-stamping sensor data and coordinating time-based events.
- Embedded Systems: Provides a robust, off-the-shelf clock reference for microcontroller projects.
- Prototyping & Education: Excellent tool for students and hobbyists learning to interface with I²C peripherals and external timing modules.
Package Includes
- 1 x Digilent Pmod RTCC (Real-time Clock/Calendar Module)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device | Digilent Pmod RTCC |
| Interface | I²C (2×4-pin connector) |
| Non-Volatile Storage | 128 bytes EEPROM |
| Volatile Storage | 64 bytes SRAM |
| PCB Dimensions | 3.3 cm × 2.0 cm |
| Shipping Weight | 0.007 kg |
| Shipping Dimensions | 10 × 8 × 1 cm |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete technical parameters and coding examples, please refer to the official Digilent resource center.
