Description

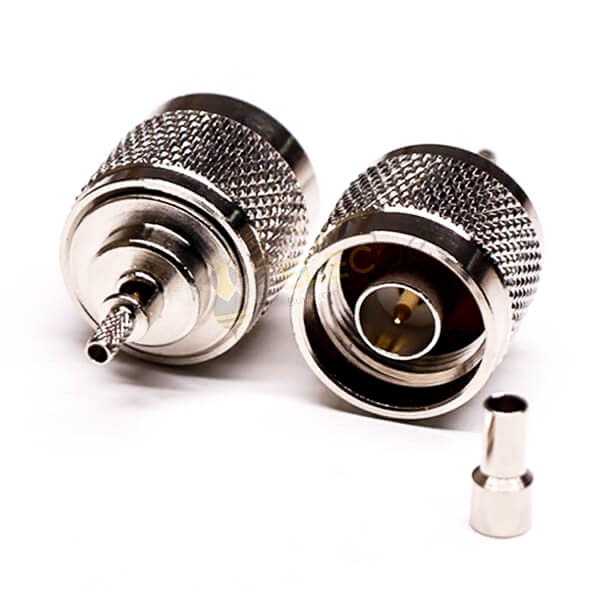

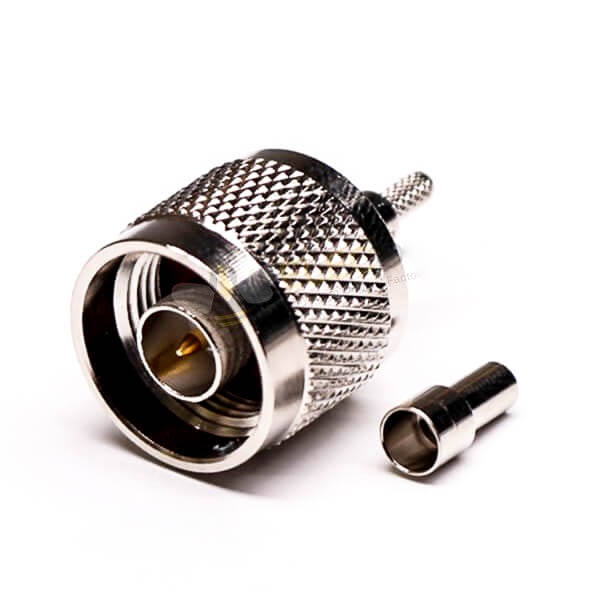

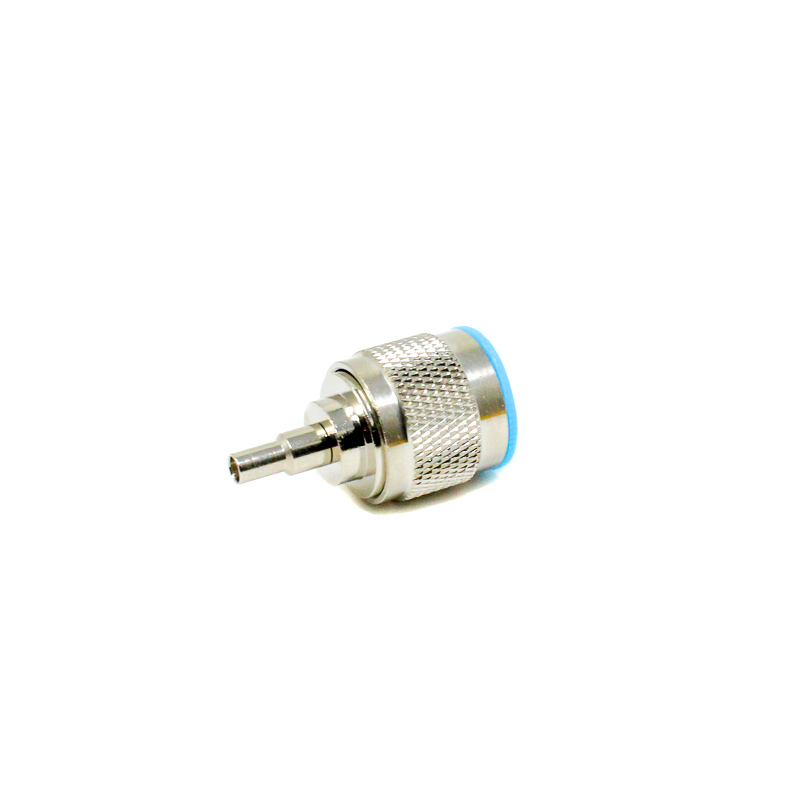

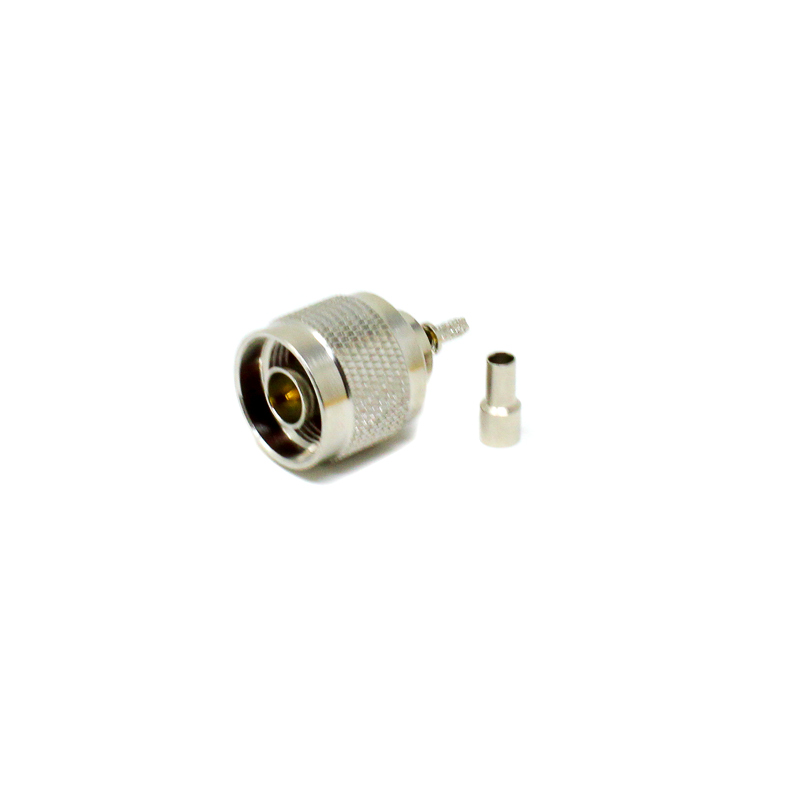

The N-Type Male RF Coaxial Connector is a high-performance cable-mount connector designed for reliable RF signal transmission in demanding industrial, telecommunications, wireless, and test applications. Featuring a 50Ω impedance and a durable threaded coupling mechanism, it provides secure connections with excellent electrical performance even under vibration and harsh environmental conditions.
This straight (180°) connector uses a crimp shield termination with solder center contact termination, ensuring low signal loss, excellent conductivity, and dependable long-term performance. Designed to operate at frequencies up to 13GHz, it is suitable for high-frequency RF systems requiring stable impedance and minimal insertion loss.
Manufactured with a nickel-plated copper body, the connector offers excellent corrosion resistance, mechanical durability, and long service life. It is widely used in antennas, RF communication equipment, Wi-Fi systems, GPS devices, base stations, broadcast electronics, industrial automation, military equipment, and laboratory instrumentation.

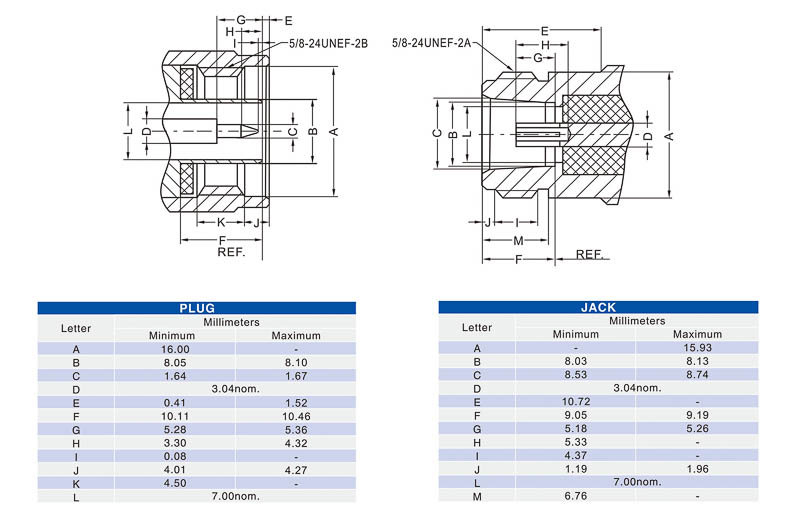

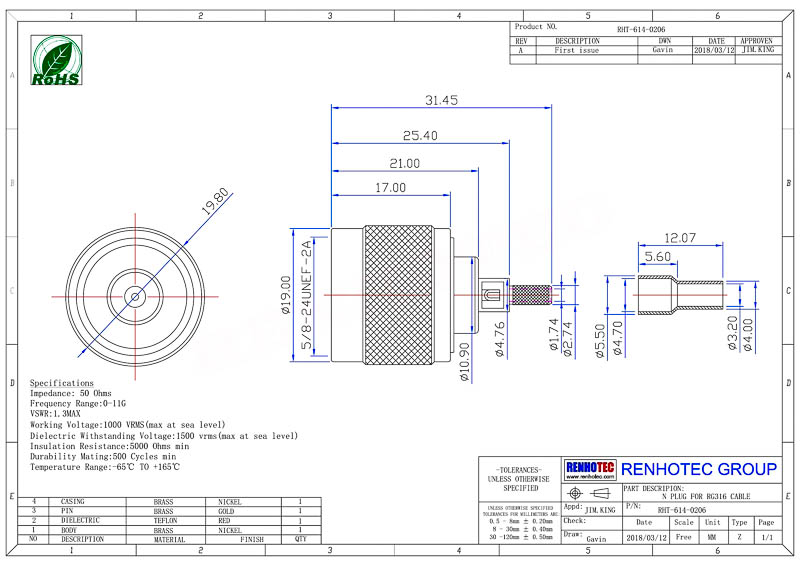

Note: Please refer to the schematic drawing for dimensional details before installation. Product appearance may vary slightly depending on the manufacturing batch.
Features
- N-Type male straight (180°) RF connector
- 50Ω impedance for RF communication systems
- Cable mount design with crimp shield termination
- Solder center contact for reliable electrical connection
- Supports frequencies up to 13GHz
- Threaded coupling for secure and vibration-resistant connection
- Nickel-plated copper body for corrosion resistance
- Low contact resistance for superior signal transmission
- High dielectric withstand voltage
- Designed for industrial and professional RF applications
Benefits
- Ensures stable high-frequency RF signal transmission
- Minimizes signal loss and reflection
- Provides secure connections in high-vibration environments
- Offers excellent mechanical strength and durability
- Supports demanding industrial and outdoor installations
- Delivers reliable long-term performance
- Compatible with standard 50Ω RF cable systems
- Ideal for professional communication equipment
Applications
- RF Communication Systems
- Wireless Communication Equipment
- Cellular Base Stations
- RF Antennas
- Wi-Fi Equipment
- GPS Systems
- Broadcast Electronics
- Radar Equipment
- Military Communication Systems
- Aerospace Electronics
- Industrial Automation
- Machine-to-Machine Communication
- Medical RF Equipment
- RF Test & Measurement Instruments
- Laboratory Equipment
- Network Infrastructure
- Passive RF Components
- Active RF Modules
- Coaxial Cable Assemblies
- General High-Frequency RF Applications
Package Includes
- 1 x N-Type Male Straight (180°) Crimp Type RF Coaxial Connector
Specifications
| Parameter | Specification |
|---|---|
| Product Name | N-Type Male RF Coaxial Connector |
| Brand | ElecBee |
| Connector Type | N-Type Male |
| Orientation | Straight (180°) |
| Gender | Male |
| Mounting Type | Cable Mount |
| Termination Type | Solder Center Contact / Crimp Shield |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Nickel Plated |
| Impedance | 50 Ω |
| Frequency Range | DC to 13 GHz |
| VSWR | ≤ 1.3 (Straight Type) |
| Working Voltage | 1000 V RMS |
| Dielectric Withstanding Voltage | 2500 V RMS |
| Center Contact Resistance | ≤ 1.0 mΩ |
| Outer Contact Resistance | ≤ 0.2 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Coupling Thread | 5/8-24 Thread |
| Minimum Contact Retention | 6 lbs |
| Coupling Nut Torque | 30 in-lbs (Minimum) |
| Mechanical Life | ≥ 500 Mating Cycles |
| Operating Temperature | -65°C to +125°C |
| Shipping Weight | 0.01 kg |
