Description

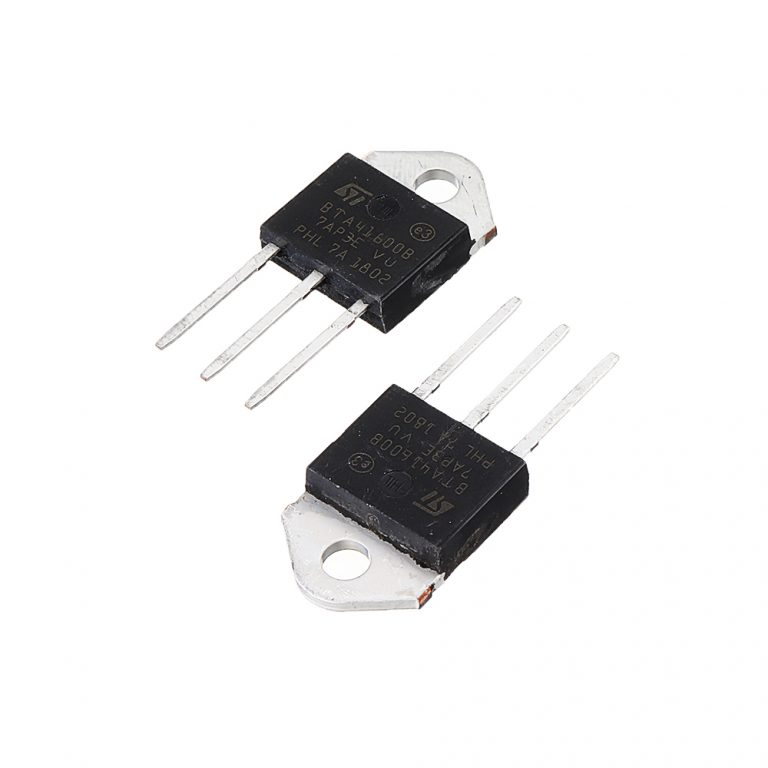

The BTA41-600B is a high-power 40A Triac engineered for demanding mains power AC switching. Designed for heavy-duty industrial and domestic applications, this device is ideal for high-current ON/OFF switching, including static relays, robust heating regulation, and induction motor starting circuits.
Beyond high-current switching, the BTA41-600B is expertly suited for phase control operations, such as high-load light dimmers and motor speed controllers for major appliances. With a 600V peak repetitive off-state voltage and an operating junction temperature range of -40°C to +125°C, it provides the reliability and performance required for high-capacity power control systems. Please note that the manufacturer and model type may vary based on stock availability to ensure you receive the best quality component for your needs.
Key Features
- High Current Capacity: 40A RMS on-state current for heavy-duty power switching
- Versatile Control: Excellent for both ON/OFF functions and precision phase control
- Robust Design: 600V peak repetitive off-state voltage for industrial reliability
- Wide Thermal Range: Consistent operation from -40°C to +125°C
- Reliable Performance: Engineered for high-load applications and power regulation
Applications
- Industrial static relays and power contactors
- High-capacity heating and temperature regulation
- Induction motor starting and control
- Appliance motor speed controllers
- Phase-controlled high-load light dimming
Package Includes
- 1 x BTA41-600B Triac
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BTA41-600B |
| On-State RMS Current | 40 A |
| Peak Repetitive Off-State Voltage | 600 V |
| Operating Temp. Range | -40°C to +125°C |
| Peak Gate Current | 8 A |
Note: Product model, manufacturer, and appearance may vary slightly based on current stock availability.
