Description

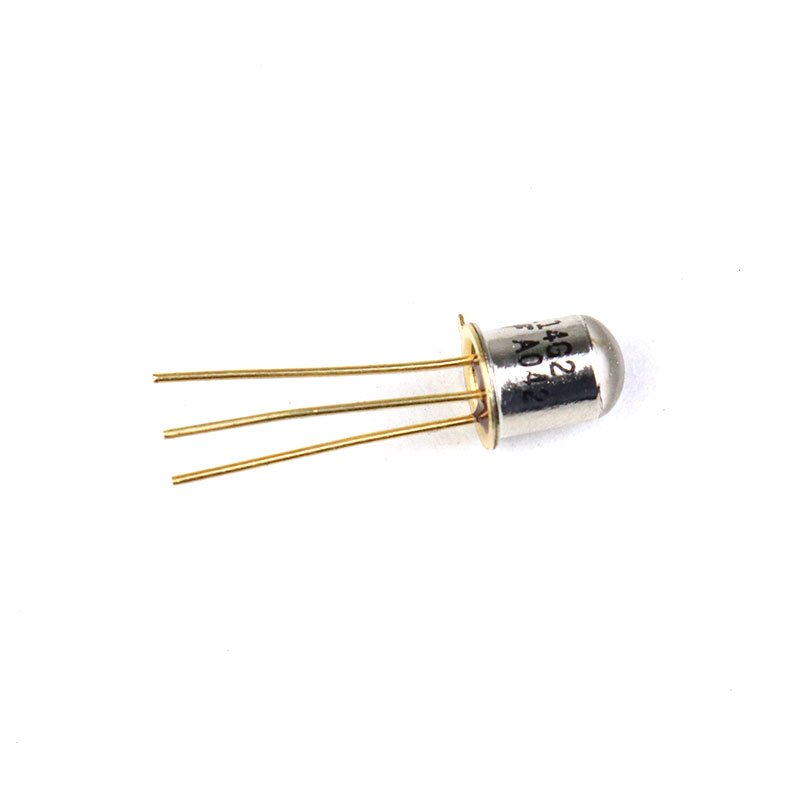

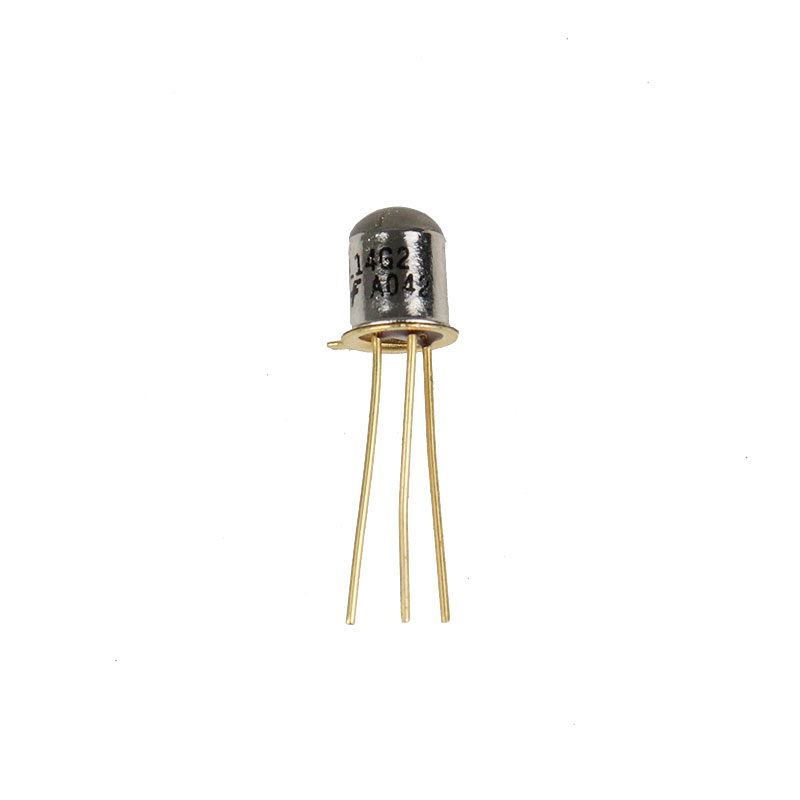

The L14G2 is a high-performance silicon phototransistor designed for precision optical sensing applications. Featuring a narrow-angle, hermetically sealed package, this device offers excellent directional sensitivity and superior protection against harsh environmental conditions. Its robust construction ensures reliable light detection even in demanding industrial settings.
With a wide operating temperature range of -65°C to +125°C, the L14G2 is built for stability and longevity. The ±10° reception angle allows for focused detection, significantly reducing interference from stray ambient light. As a through-hole component, it is highly suitable for professional-grade optical alignment, light-beam detection, and high-precision sensing modules where consistent, repeatable performance is critical.
Key Features
- Precision Sensing: Designed for high-accuracy light-to-current conversion
- Narrow Reception Angle: Focused ±10° reception for superior directional control
- Industrial Durability: Hermetically sealed to ensure resistance against moisture and environmental contaminants
- Wide Temperature Range: Reliable operation from -65°C to +125°C
- Ease of Integration: Through-hole design for secure, standard PCB mounting
Applications
- Optical beam sensing and light-gate systems
- Industrial automation and process control
- Precision infrared detection
- Remote control and light-switching modules
- High-precision optical alignment hardware
Package Includes
- 1 x L14G2 Phototransistor
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | L14G2 |
| Mounting Type | Through Hole |
| Breakdown Voltage (VCEO) | 45 V |
| Reception Angle | ±10° |
| Operating Temp. Range | -65°C to +125°C |
| Collector Current | 0.5 mA |
| Dimensions (Body) | 6.4 mm (L) x 4.6 mm (Diameter) |
