Description

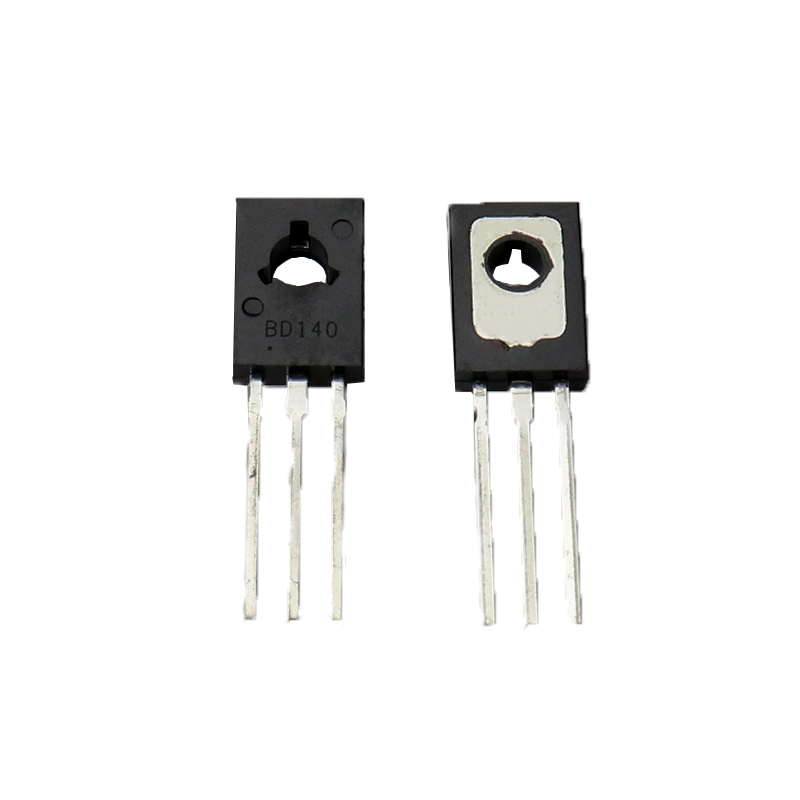

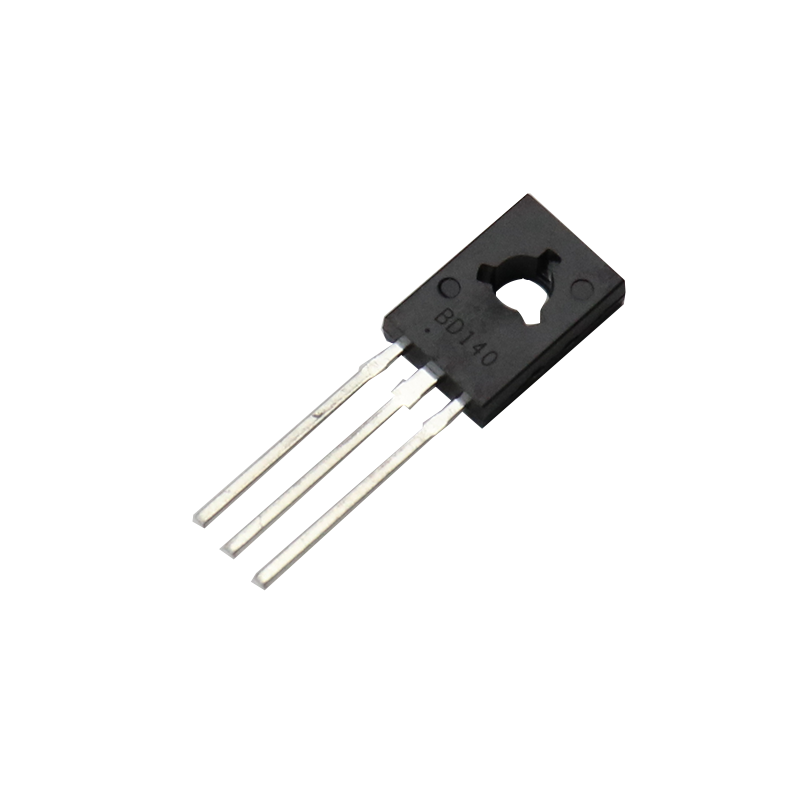

The BD140 is a popular and reliable PNP power transistor designed for medium-power switching and amplification applications. Capable of handling a continuous collector current of 1.5A, this transistor is an excellent choice for driving heavier loads, such as small motors, relays, and power-hungry indicator systems that exceed the capacity of standard small-signal transistors.
With a DC current gain (hFE) range of 40 to 250, the BD140 provides consistent performance across various circuit configurations. Its robust design, featuring an 80V Collector-Emitter voltage rating and a maximum junction temperature of 150°C, ensures stable operation under challenging conditions. This pack of 10 units provides a cost-effective, high-value solution for your prototyping, R&D, or professional repair and maintenance inventory.
Key Features
- High Current Handling: 1.5A collector current ideal for controlling medium-power loads
- Reliable Voltage Ratings: 80V Vce and Vcb for safe operation in diverse power circuits
- Flexible Gain: hFE of 40-250 for versatile amplification and switching
- Thermal Robustness: Junction temperature rating of 150°C for demanding environments
- Value Bundle: Convenient 10-pack for stock management and multi-project needs
Applications
- Medium-power switching and load control
- Relay and solenoid drivers
- Audio power amplifiers
- DC-to-DC converters and voltage regulation stages
- General-purpose power management in industrial circuits
Package Includes
- 10 x BD140 PNP Power Transistor
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BD140 |
| Polarity | PNP |
| Collector Current (Ic) | 1.5 A |
| Collector-Emitter Voltage (Vce) | 80 V |
| Gain (hFE) | 40 – 250 |
| Mounting Type | Through-Hole |
| Quantity | Pack of 10 |
