Description

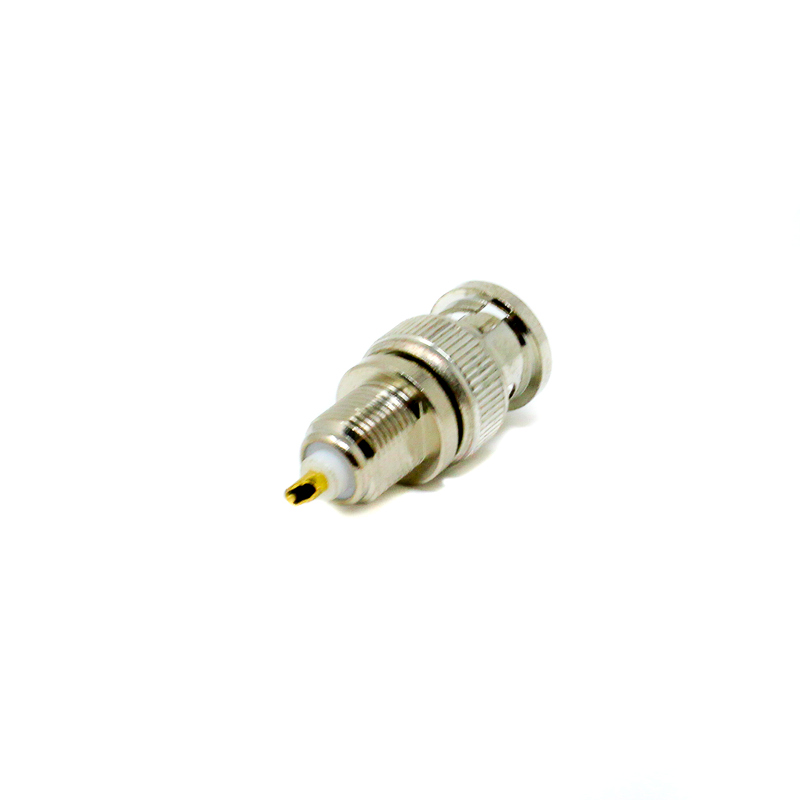

The BNC Bulkhead Plug Connector is a professional-grade RF interface designed for high-reliability signal transmission in coaxial cable systems. This connector features a bulkhead mounting design, allowing for secure panel installation in broadcasting, telecommunications, and CCTV hardware. Built to industry-standard specifications, it ensures superior electrical performance with low contact resistance and excellent insulation, making it perfect for both 50-ohm and 75-ohm applications.
Engineered for durability, the connector utilizes a robust zinc alloy body with nickel plating to resist corrosion and environmental stress. Its bayonet coupling mechanism allows for quick and secure connect/disconnect operations, while the solder-type termination ensures a permanent, low-loss connection. With a mechanical lifespan of over 500 mating cycles and compliance with military-grade vibration and corrosion standards (MIL-STD-202), this connector is an essential component for demanding instrumentation and broadcast environments.

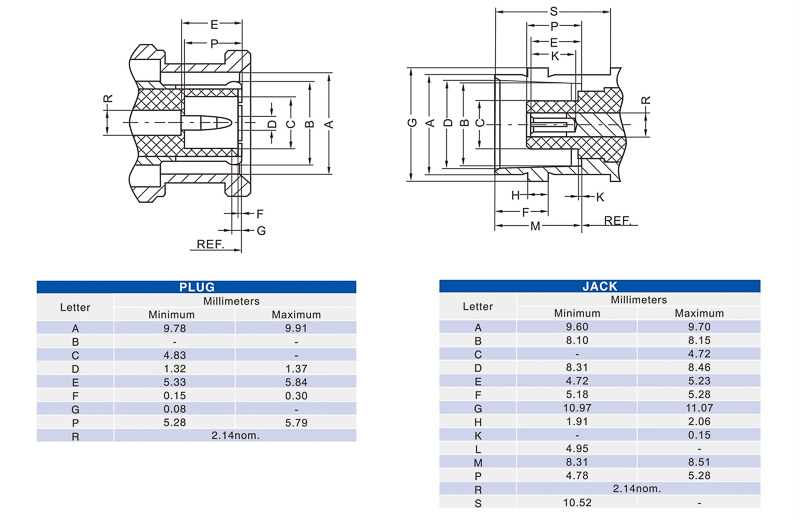

Note: Refer to the schematic image for detailed dimensions to ensure proper panel cutout and cable termination compatibility.
Features
- BNC Bulkhead Male Plug (Straight/180°)
- Solder-type termination for reliable electrical connectivity
- Compact design optimized for space-constrained panels
- Bayonet coupling mechanism for fast connect/disconnect
- High dielectric withstanding voltage (1500V rms)
- Durable nickel-plated zinc alloy construction
- Meets MIL-STD-202 standards for vibration and corrosion resistance
Benefits
- Provides a secure, vibration-resistant panel mount interface
- High-quality materials ensure minimal signal loss (≤1.5 mΩ contact resistance)
- Versatile use in professional broadcast and telecom infrastructure
- Designed for long-term reliability with ≥500 mating cycles
- Excellent performance in harsh industrial/environmental conditions
Applications
- CCTV, CATV, and HDTV Systems
- Antenna and Satellite Communication (Satcom)
- Broadcasting and Video Production Equipment
- Medical and Laboratory Instrumentation
- Automotive and Telecommunication Base Stations
- RF Cable Assemblies and Panel Integration
Package Includes
- 1 x BNC Bulkhead Male Plug Connector (Straight Solder Type)
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male |
| Mounting Type | Panel Mount / Cable |
| Termination Style | Solder Type |
| Mounting Feature | Bulkhead |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 75 Ω |
| Working Voltage | 500V rms |
| Operating Temperature | -55°C to +155°C (Teflon) |
