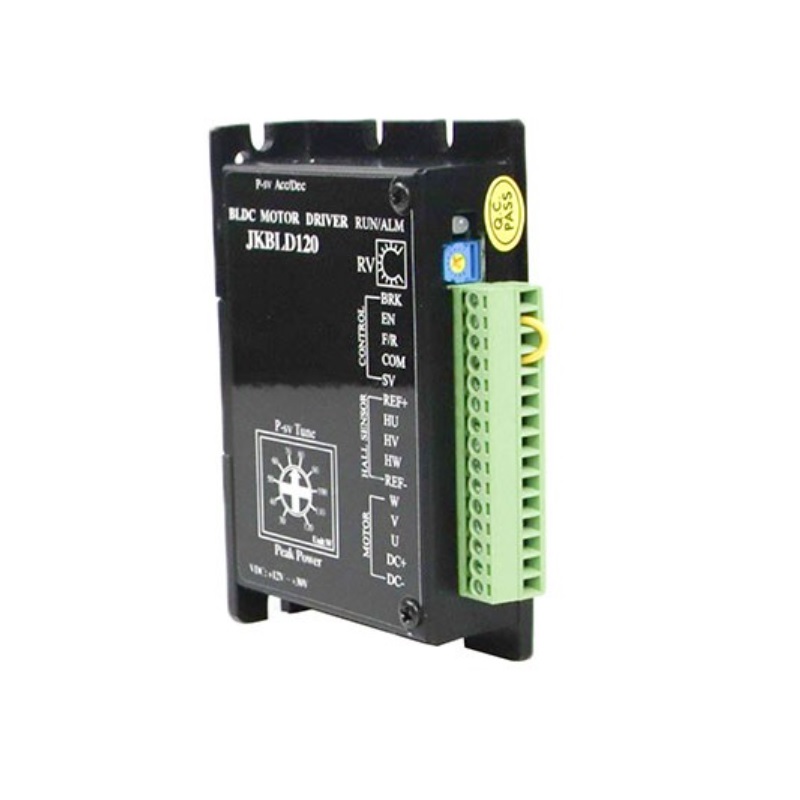

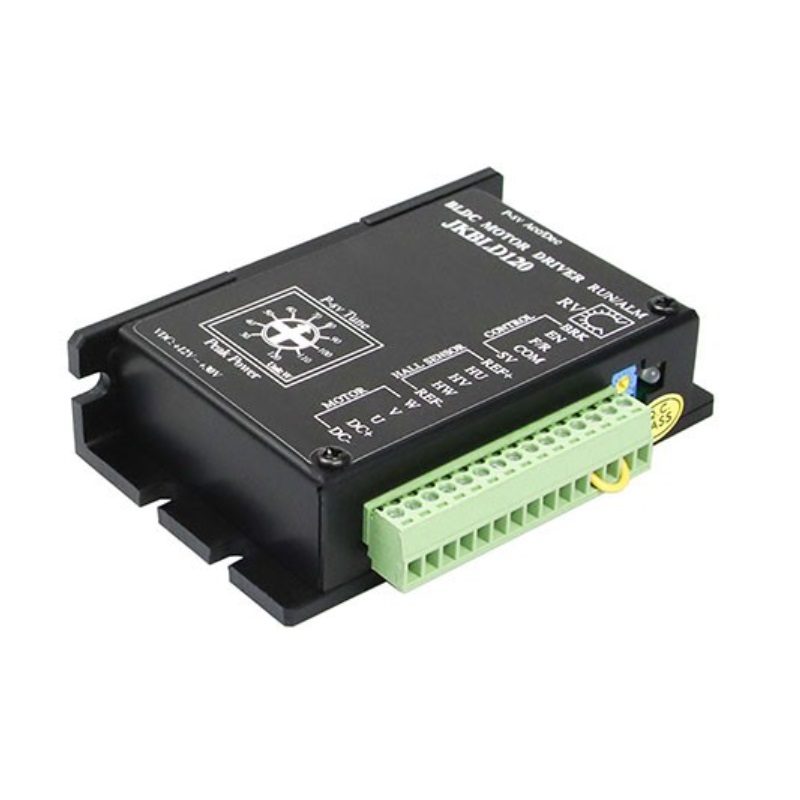

BLD120 Brushless DC Motor Driver (Compact BLDC Motor Controller)
Description
The BLD120 Brushless DC Motor Driver is a compact and efficient controller designed for low-voltage and low-power BLDC motor applications. Developed for reliable brushless motor operation, the driver provides precise speed regulation and stable motor performance across a wide range of industrial and automation systems.
This driver supports multiple speed control methods including built-in potentiometer adjustment, external potentiometer control, analog signal input, and PWM speed regulation. Its flexible control architecture makes it suitable for applications requiring accurate and responsive motor speed management.
The BLD120 features smooth acceleration and deceleration control with adjustable Acc/Dec timing settings, helping reduce mechanical stress and improving operational stability. Integrated protection and alarm functions help ensure safe operation during demanding motor control conditions.
Designed for compact installations, the module provides reliable brushless motor driving capability for robotics, automation systems, small machinery, electric tools, and motion control applications.
Note: Refer to the product documentation and datasheet before installation and operation.
Features
- Designed for low-voltage low-power BLDC motors
- Compact and efficient motor control design
- Adjustable acceleration and deceleration timing
- Maximum output current parameter setting
- Built-in restart function
- Integrated alarm signal support
- Built-in rotary speed adjustment control
- Supports external potentiometer speed control
- Supports external analog signal speed control
- PWM-based speed regulation support
- Stable and reliable brushless motor operation
Applications
- Brushless DC motor control systems
- Robotics and automation projects
- Industrial motor control applications
- Small electric machinery
- DIY motor control projects
- Motion control and embedded systems
- Automotive and aerospace subsystems
Package Includes
- 1 × BLD120 Brushless DC Motor Driver
Specifications
| Parameter | Value |
|---|---|
| Model Series | BLD Series |
| Model Number | BLD120 |
| Operating Voltage | 12V – 30V DC |
| Current Rating | 8A |
| Rated Speed | 0 – 20000 RPM |
| External Potentiometer | 10KΩ |
| Hall Signal Voltage | 5V |
| Hall Drive Current | 20 mA |
| Storage Temperature | 0°C to +50°C |
| Dimensions (L × W × H) | 96 × 70 × 24 mm |
| Weight | 144 g |
| Shipping Weight | 0.166 kg |
| Shipping Dimensions | 10.5 × 8 × 3 cm |
