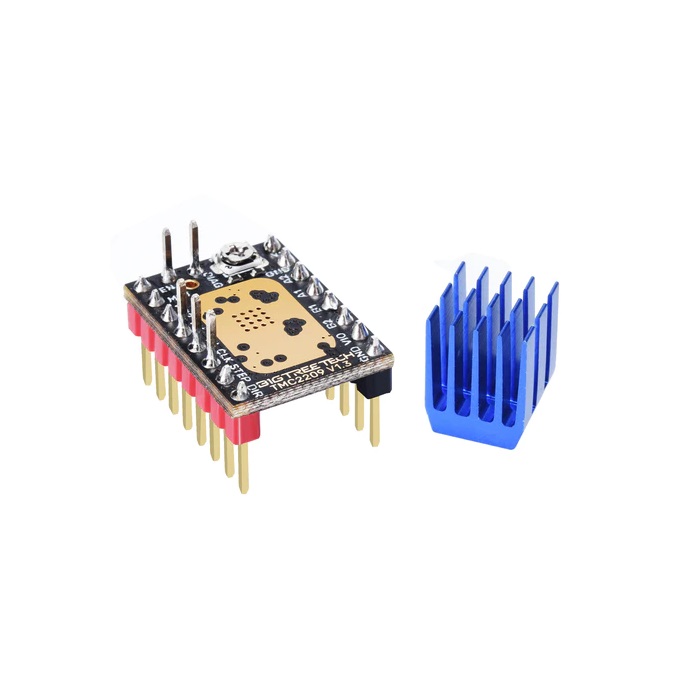

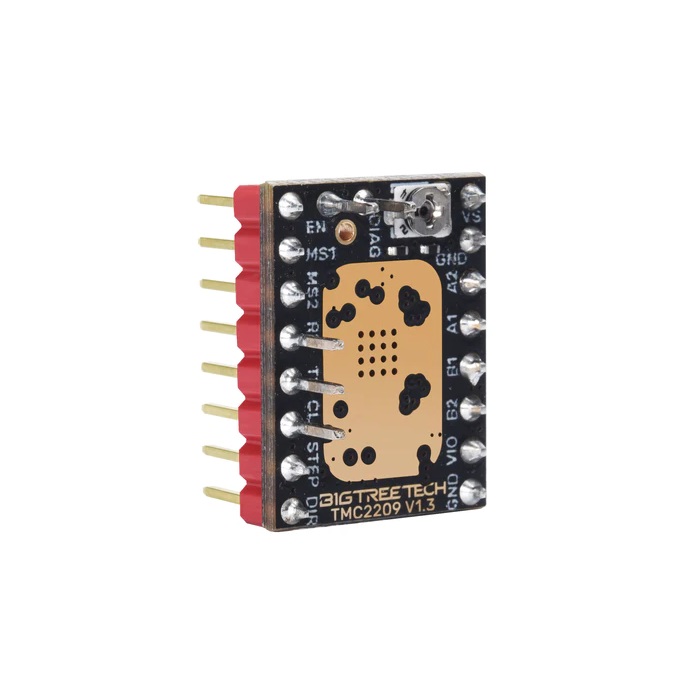

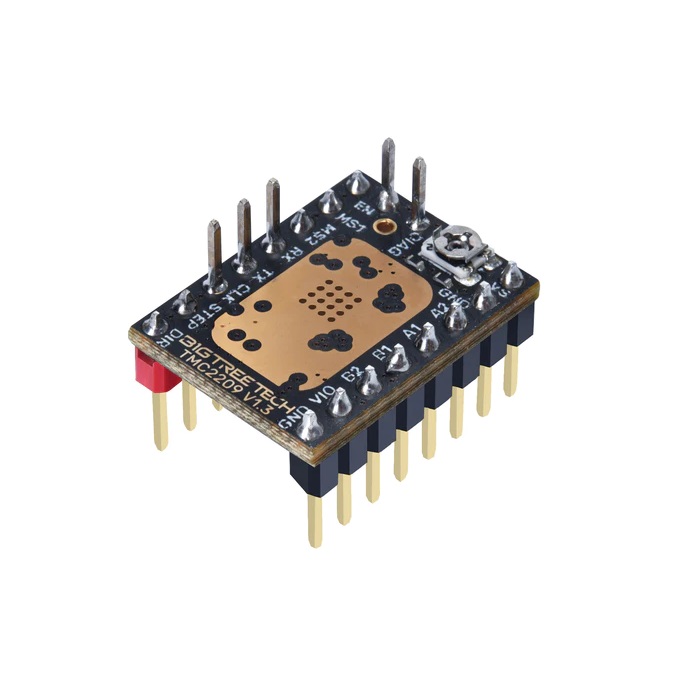

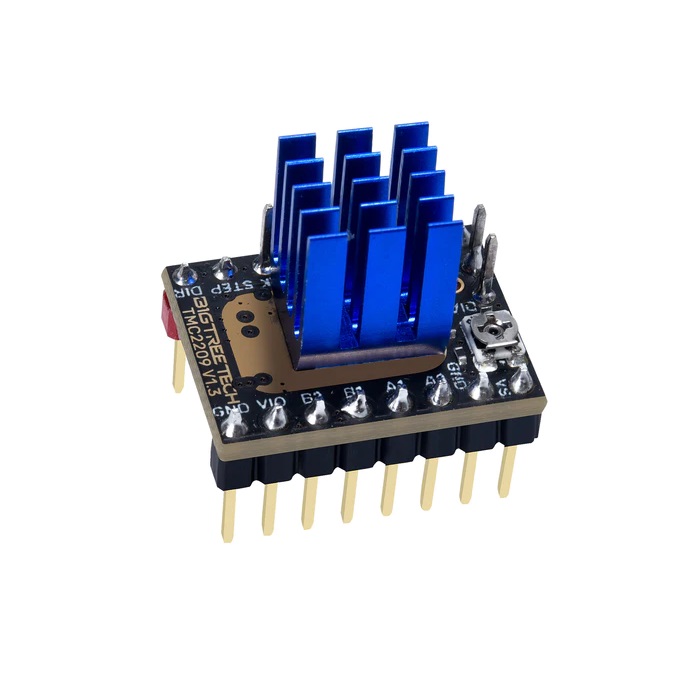

BIGTREETECH BTT TMC2209 V1.3 Stepper Motor Driver
Description
The BIGTREETECH BTT TMC2209 V1.3 is a high-performance ultra-quiet two-phase stepper motor driver designed for 3D printers, CNC machines, robotics systems, and precision motion control applications. Built around the advanced TMC2209 driver IC, the module delivers smooth, efficient, and highly accurate motor operation with reduced noise and vibration.
The driver supports continuous motor current up to 2.0A RMS and peak current up to 2.8A, making it suitable for a wide range of medium-power stepper motor applications. Its flexible MicroPlyer™ interpolation technology supports up to 1/256 microstepping resolution, enabling smooth sinusoidal motor control even in systems with limited pulse frequencies.
The integrated StealthChop2™ technology ensures near-silent motor operation, while SpreadCycle™ dynamic current control improves motion smoothness and motor performance during acceleration and deceleration. StallGuard™ technology enables sensorless homing by detecting motor load changes, eliminating the need for physical limit switches in compatible systems.
The driver supports both STEP/DIR and UART communication modes, allowing advanced software-based configuration of current, microstepping, and driver parameters. CoolStep™ intelligent current management dynamically adjusts motor current according to load conditions, improving thermal performance and reducing power consumption by up to 75%.
Designed in the standard StepStick form factor, the module is compatible with many popular controller boards and can directly replace drivers such as TMC2208, A4988, DRV8825, and LV8729.
Features
- Ultra-quiet motor operation using StealthChop2™ technology
- Supports up to 1/256 microstepping interpolation
- STEP/DIR and UART communication support
- StallGuard™ sensorless homing capability
- CoolStep™ intelligent current optimization
- SpreadCycle™ smooth dynamic motor control
- Good thermal dissipation performance
- Immersion gold PCB process for improved durability
- Reduced motor vibration and step loss
- Software-adjustable current and microstepping
- Compatible with standard StepStick sockets
- Can replace TMC2208, A4988, DRV8825, and LV8729 drivers
Applications
- 3D printers
- CNC machines
- Robotics systems
- DIY automation projects
- Precision motion control systems
- Embedded motor control applications
Package Includes
- 1 × BIGTREETECH BTT TMC2209 V1.3 Stepper Motor Driver
Specifications
| Parameter | Value |
|---|---|
| Model Series | BTT Series, TMC Series |
| Operating Voltage | 4.47V – 28V DC |
| Current Rating | 2A – 2.8A |
| Maximum Current | 2.8A |
| RMS Current | 2A |
| Operating Modes | STEP/DIR, UART |
| Maximum Microstepping | 1/256 |
| Microstep Settings | 2, 4, 8, 16 (interpolated to 256) |
| Dimensions (L × W × H) | 20 × 15 × 15 mm |
| Weight | 6 g |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 5.5 × 4.5 × 3 cm |
