Description
The ADS1110A0IDBVT from Texas Instruments is a high-precision, continuously self-calibrating 16-bit Delta-Sigma Analog-to-Digital Converter (ADC) built for demanding measurement applications. Featuring an integrated 2.048V precision voltage reference, it provides a stable differential input range of ±2.048V. With an onboard Programmable Gain Amplifier (PGA) offering gains up to x8, the ADS1110 excels at capturing even the smallest input signals with exceptional resolution.
Engineered for power-sensitive environments, the device operates on a single supply (2.7V to 5.5V) and supports user-selectable conversion rates of 15, 30, 60, or 240 samples per second. Its smart “single-conversion” mode automatically powers down the ADC after each reading, significantly reducing power consumption during idle times. Housed in a compact 6-pin package, the ADS1110 is the ideal choice for high-accuracy sensor interfacing where board space and low power draw are critical.
Key Features
- 16-Bit Resolution: Guaranteed no missing codes for accurate, reliable data conversion.
- High Accuracy Reference: Integrated 2.048V reference with ±0.05% accuracy and ultra-low 5ppm/°C drift.
- Integrated PGA: Selectable gain settings for measuring low-amplitude signals with high sensitivity.
- Self-Calibration: Continuous internal calibration of offset and gain ensures long-term measurement stability.
- Flexible Sampling: Programmable data rates (15 to 240 SPS) to balance speed and resolution.
- Power Efficient: Low 240µA current consumption with an automatic power-down feature for idle periods.
- I²C Connectivity: Compatible with I²C serial interfaces, supporting up to 8 unique device addresses.
- Excellent Linearity: Features an impressive 0.01% FSR Maximum Integral Non-Linearity (INL).
Applications
- Industrial Instrumentation: Precision monitoring for automated control and sensor networks.
- Portable Medical Devices: High-resolution data acquisition for health diagnostic equipment.
- Environmental Sensing: Accurate, low-power measurement for remote environmental data loggers.
- Battery-Operated Systems: Energy-efficient design maximizes battery life in portable electronics.
Package Includes

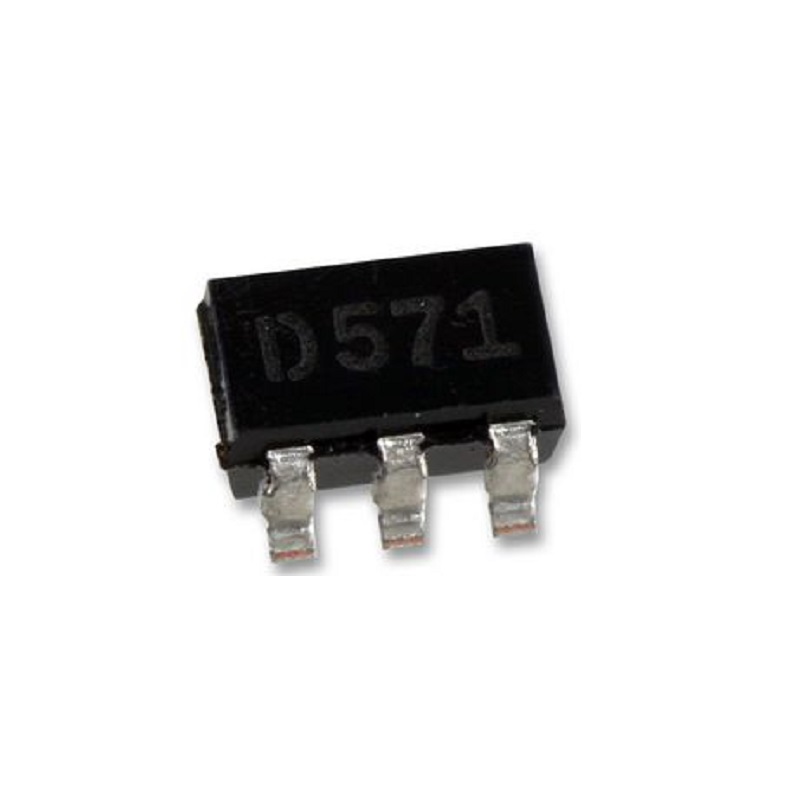

- 1 x ADS1110A0IDBVT 16-bit Delta-Sigma ADC (6-Pin)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device Model | ADS1110A0IDBVT |
| Resolution | 16-bit |
| Sampling Rate | Up to 240 SPS |
| Data Interface | I²C |
| Supply Voltage | 2.7V to 5.5V |
| Number of Pins | 6 Pins |
| Operating Temp | -40°C to +85°C |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete electrical characteristics, timing diagrams, and register maps, please refer to the official Texas Instruments ADS1110 datasheet.
