Description
The TXB0104D is a high-performance, 4-bit non-inverting voltage level translator designed for seamless communication between devices operating at different voltage domains. Utilizing two separate, configurable power-supply rails (VCCA and VCCB), this device facilitates universal, bidirectional voltage translation. The A-port tracks VCCA (1.2V to 3.6V), while the B-port tracks VCCB (1.65V to 5.5V), enabling compatibility across a wide variety of logic levels including 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V systems.
Equipped with an Output Enable (OE) pin, the device allows for high-impedance control, making it ideal for bus-sharing applications. Furthermore, the TXB0104D includes advanced IOFF circuitry, which prevents damaging back-flow current during partial power-down scenarios, ensuring superior reliability in power-sensitive designs. Its compact SOIC-14 package makes it an excellent choice for space-constrained applications like portable electronics and communication interfaces.
Key Features
- Bidirectional Translation: Provides universal level shifting between diverse voltage nodes.
- Dual Power Rails: Independent supply rails for VCCA (1.2V to 3.6V) and VCCB (1.65V to 5.5V).
- High-Impedance Control: OE pin provides simple output isolation.
- Partial Power-Down Protection: IOFF circuitry prevents current back-flow when the device is unpowered.
- Low Power Consumption: Optimized for energy-efficient operation.
- Compact Design: Lightweight and small form factor in an SOIC-14 package.
Applications
- Portable Electronics: Ideal for level translation in Smartphones, Tablets, and Headsets.
- Computing: Essential for Desktop PC peripheral interfacing and communication buses.
- Embedded Systems: Bridging logic levels between low-voltage sensors and higher-voltage controllers.
Package Includes

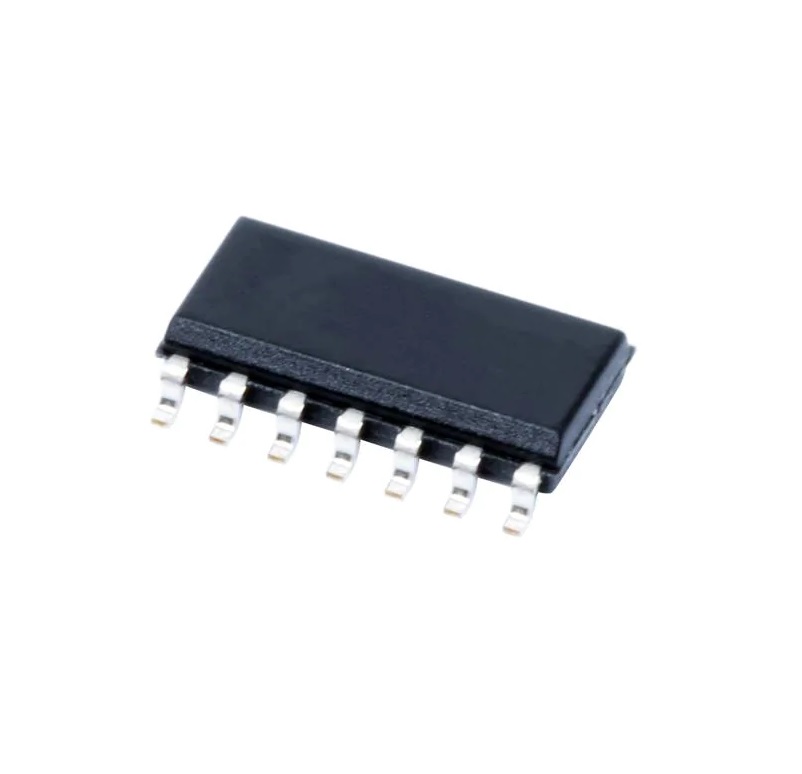

- 1 x TXB0104D 4-bit Bidirectional Voltage Level Translator (SOIC-14)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device Model | TXB0104D |
| Bit Width | 4-bit |
| VCCA Supply | 1.2V to 3.6V |
| VCCB Supply | 1.65V to 5.5V |
| Package/Case | SOIC-14 |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete timing diagrams, operational requirements, and detailed electrical characteristics, please refer to the official Texas Instruments TXB0104D datasheet.
