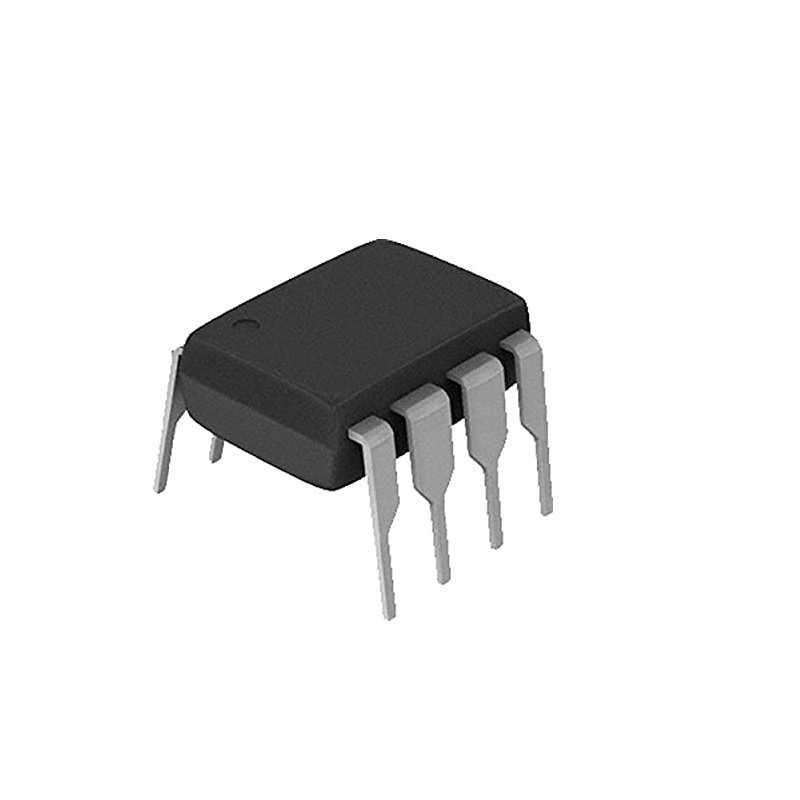

MCP4921 12-Bit Single-Channel Voltage Output Digital-to-Analog Converter (DAC) with High-Speed SPI Interface – DIP-8 Package

Description

The MCP4921 from Microchip is a high-precision, 12-bit single-channel Digital-to-Analog Converter (DAC) featuring a buffered rail-to-rail voltage output. Designed for applications where accuracy and space-efficiency are vital, the MCP4921 delivers stable analog voltage outputs based on a digital input provided through an industry-standard 3-wire SPI™ serial interface. Its robust design includes an integrated Power-On Reset (POR) circuit, ensuring the device remains in a known state upon power-up, which is critical for safety and initialization in automated control systems.

This DAC is highly optimized for performance, offering a low-power design that includes an integrated shutdown mode, making it an excellent candidate for battery-operated devices and portable instruments. The chip’s ability to maintain high linearity and low noise makes it a preferred choice for digitally-controlled calibration, waveform generation, and programmable bias voltage applications. Housed in a standard 8-pin DIP package, the MCP4921 is perfectly suited for rapid breadboard prototyping, educational training modules, and straightforward through-hole PCB assembly.

Key Features

• 12-Bit Resolution: Provides 4096 discrete voltage steps, ensuring high-fidelity analog output for precise control.
• Rail-to-Rail Output: The output voltage can swing from ground to the supply voltage, maximizing the usable dynamic range of your system.
• SPI Serial Interface: High-speed 3-wire digital communication interface compatible with most microcontrollers and DSPs.
• Power Management: Includes a dedicated shutdown mode to reduce power consumption during idle periods, ideal for portable electronics.
• Power-On Reset (POR): Ensures the device initializes reliably, preventing erratic outputs during system startup.
• DIP-8 Package: Robust through-hole format that simplifies assembly, maintenance, and educational lab use.

Applications

• Waveform Generation: Ideal for creating precise control signals, function generators, and audio synthesis.
• Digitally-Controlled Calibration: Perfect for software-based adjustment of gain, offset, or bias levels in instrumentation.
• Embedded Control: Adds versatile analog voltage generation capabilities to microcontroller-based automation projects.
• Sensor Simulation: Useful for testing circuits by simulating analog sensor voltage inputs during the development phase.

Package Includes

• 1 x MCP4921 12-Bit Single-Channel Voltage Output DAC (DIP-8)

Technical Specifications

Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete timing diagrams, electrical characteristics, and detailed application circuit schematics, please refer to the official Microchip MCP4921 datasheet.
