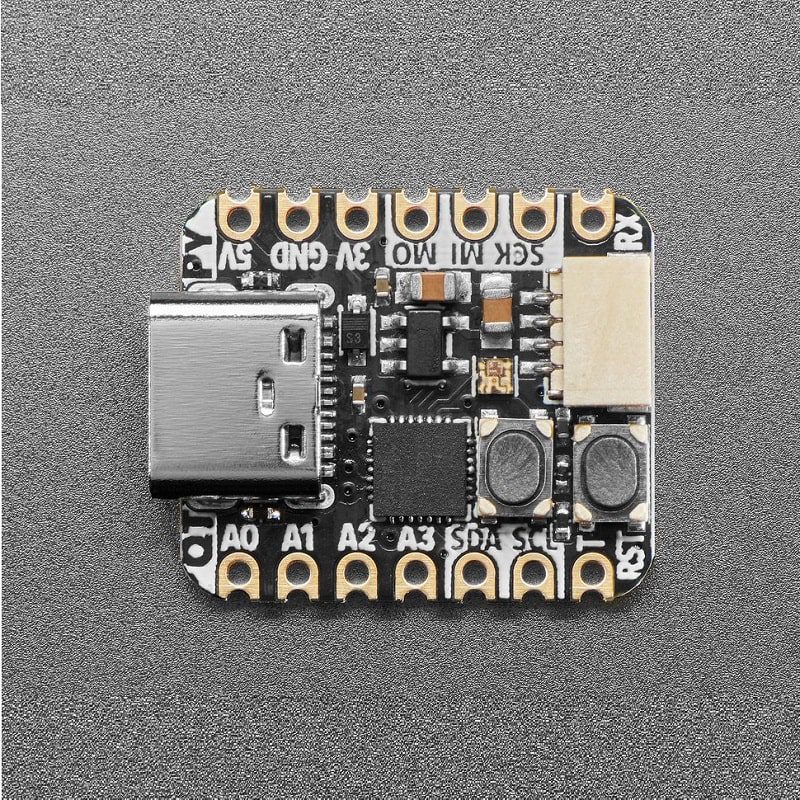

(SPIDER Automation) Adafruit QT Py CH32V203 Dev Board | 32-bit RISC-V MCU with STEMMA QT
Description
The (SPIDER Automation) Adafruit QT Py CH32V203 Dev Board is a pocket-sized, highly capable microcontroller board that brings the open-standard 32-bit RISC-V architecture to Adafruit’s popular QT Py form factor. Driven by the CH32V203 microcontroller, this tiny board packs a powerful punch, operating at clock speeds up to 144 MHz while maintaining a remarkably small physical footprint.
Equipped with an integrated STEMMA QT connector, the board lets you easily connect a wide array of plug-and-play I2C sensors, displays, and actuators without needing a breadboard or soldering iron. It features 10KB of SRAM and a flexible memory layout comprising 32KB of ultra-fast single-cycle internal flash alongside an additional 224KB of external XIP flash for expanded program and data storage.
Key Features
- 32-Bit RISC-V Core: Modern, open-standard RISC-V architecture running at speeds up to 144 MHz.
- Flexible Memory Configuration: 10KB SRAM, 32KB fast single-cycle internal flash, and 224KB external XIP flash memory.
- STEMMA QT / Qwiic Port: Dedicated 4-pin JST-SH connector for instant, solderless I2C peripheral integration.
- USB Type-C Connector: Modern reversible interface for power delivery and data communication.
- Rich Peripheral Set: Supports hardware GPIOs, timers, UART, SPI, I2C, and more.
- Castellated Edge Pads: Allows surface-mount reflow soldering directly onto custom carrier printed circuit boards.
Benefits
- Rapid Solderless Prototyping: Plug-and-play STEMMA QT ecosystem drastically cuts down wiring time for sensors and modules.
- Tiny & Lightweight Footprint: Ideal for wearable electronics, miniature robotics, and space-constrained enclosures.
- Cost-Effective RISC-V Entry: Excellent platform for developers looking to experiment with open-source instruction set architectures.
- Versatile Power & Connectivity: Powered directly via USB Type-C operating at a standard 3.3V logic level.
Applications
- IoT & Sensor Node Prototyping: Compact data logging and environmental monitoring hubs using I2C sensors.
- Wearable Technology: Small-scale electronics integrated into garments, badges, or accessories.
- RISC-V Software Development: Learning, testing, and debugging 32-bit RISC-V embedded code and firmware.
- Custom PCB Integration: Acting as a smart module soldered onto larger industrial or hobbyist controller boards via castellated pins.
Package Includes
- 1 x (SPIDER Automation) Adafruit QT Py CH32V203 Dev Board with STEMMA QT
Technical Specifications
| Parameter | Specification |
|---|---|
| Item Type | RISC-V Development Board |
| Brand | SPIDER Automation |
| Manufacturer / Model | Adafruit QT Py CH32V203 |
| Architecture | 32-bit RISC-V |
| Max Clock Frequency | Up to 144 MHz |
| SRAM | 10 KB |
| Flash Memory | 32 KB single-cycle Flash (fast) + 224 KB external XIP Flash (program/data storage) |
| Operating Voltage | 3.3 V |
| Power Source / Interface | USB Type-C Connector |
| Expansion Interface | STEMMA QT / Qwiic I2C Connector, GPIOs, UART, SPI |
| Net Product Weight | 2 g (0.002 kg) |
| Package Shipping Dimensions | 14 cm × 8 cm × 1 cm |
