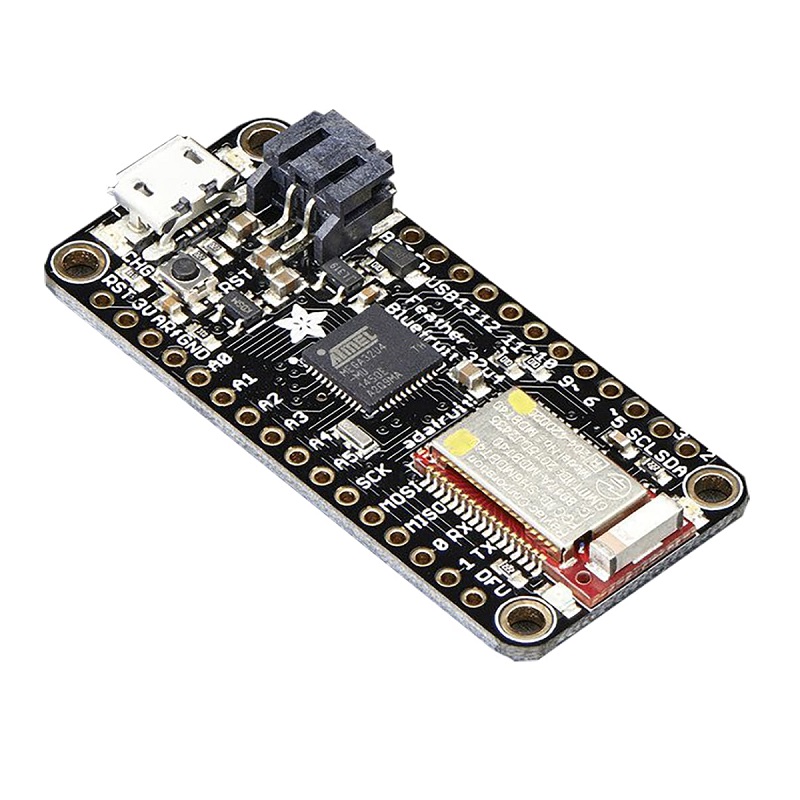

SPIDER Automation Adafruit Feather M0 Bluefruit LE Development Board | ATSAMD21 ARM Cortex-M0
Description
SPIDER Automation Adafruit Feather M0 Bluefruit LE Development Board is an all-in-one, Arduino-compatible microcontroller platform combining powerful 32-bit ARM processing with Bluetooth Low Energy (BLE) wireless connectivity, native USB, and onboard battery charging. Built around the popular Adafruit Feather form factor, it is pre-integrated with a high-performance Bluefruit LE module, making it completely ready to rock right out of the box for portable wireless applications.
Bluetooth Low Energy is an ultra-low-power 2.4GHz wireless protocol that stands out as the ideal solution for mobile connectivity because it interfaces seamlessly with iOS devices without requiring special MFi certification, alongside full support across modern Android, Mac OS X, and Windows 8+ environments. At the core of the Feather M0 is the ATSAMD21G18 32-bit ARM Cortex-M0 processor running at 48 MHz with 3.3V logic—providing 256KB of Flash memory and 32KB of RAM. Featuring native USB support for serial programming and debugging, plus an integrated LiPo battery charger with automatic power switching, it delivers an unmatched workstation for untethered IoT prototypes.
Key Features
- ATSAMD21G18 ARM Cortex-M0 Processor: 32-bit RISC core clocked at 48 MHz with 3.3V logic, delivering high-speed execution and massive memory capacity.
- Generous Onboard Memory: Outfitted with 256KB of Flash memory (8x more than Atmega328/32u4) and 32KB of RAM for complex sketches.
- Integrated Bluefruit BTLE Module: Reliable 2.4GHz Bluetooth Low Energy wireless transceiver paired with two status indicator LEDs for connection monitoring.
- Native USB Support: Built-in USB bootloader and serial port debugging capabilities eliminating the need for an external FTDI chip.
- Built-In LiPo Battery Management: Integrated 100mA Lithium-polymer battery charger with charging status indicator and automatic power switching between USB and battery.
- Battery Voltage Monitoring: Internal analog pin tied through a voltage divider to track battery levels and detect when a recharge is needed.
- Abundant Peripheral Pins: Offers 20 GPIO pins, hardware serial, hardware I2C, hardware SPI, 8 PWM pins, 10 analog inputs, and 1 analog output.
- Power Regulator & Controls: Features a 3.3V voltage regulator delivering up to 500mA peak current output, a red general-purpose LED on Pin 13, and a power/enable pin.
Benefits
- Untethered Mobile Integration: Native BLE compatibility lets you easily build smartphone-controlled gadgets and telemetry displays for iOS and Android.
- Seamless Dual-Power Operation: Run off micro-USB or plug in a 3.7V LiPo battery for portable use while keeping it automatically charged when connected to power.
- Compact Feather Ecosystem: Lightweight, space-saving design that works seamlessly with hundreds of modular Feather wings and shields.
- Zero External Programmer Required: Native USB bootloader makes code uploading and serial monitoring instant and hassle-free.
Applications
- Wearable Tech & Fitness Gadgets: Portable health monitors, smart wristbands, and motion-tracking accessories communicating with mobile apps.
- Smart Home Wireless Control: Smartphone-linked lighting controllers, remote automated switches, and environmental sensor nodes.
- IoT Prototyping & Data Logging: Remote data acquisition hubs transmitting live sensor readings over Bluetooth Low Energy to tablets or PCs.
- Robotics & RC Vehicle Telemetry: Wireless remote controls for small robots, drones, and automated wheeled platforms.
- Educational STEM Projects: Learning wireless communication, smartphone app integration, and 32-bit ARM microcontroller programming.
Package Includes
- 1 x Adafruit Feather M0 Bluefruit LE Development Board
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Adafruit Feather Series |
| Item Type | ARM Microcontroller Board with Built-In Bluetooth Low Energy (Kit) |
| Microcontroller Silicon | ATSAMD21G18 (32-bit ARM Cortex-M0) |
| Clock Speed & Logic | 48 MHz Clock Speed with 3.3V Operating Logic & Power |
| Memory (Flash & RAM) | 256KB Flash Memory & 32KB RAM (No EEPROM) |
| Wireless Connectivity | Integrated Bluefruit BTLE Module (2.4GHz Bluetooth Low Energy) |
| Power & Charging | 3.3V Regulator (500mA Peak Output), Built-in 100mA LiPo Charger |
| GPIO & Interfaces | 20 GPIO Pins, Hardware Serial, I2C, SPI, 8x PWM, 10x Analog Inputs, 1x Analog Output |
| Board Physical Dimensions | 51 mm Length × 23 mm Width × 8 mm Height |
| Board Net Weight | 5.7 g |
| Package Shipping Weight | 0.01 kg (10 g) |
| Package Shipping Dimensions | 5 cm × 3 cm × 1 cm |
