Description

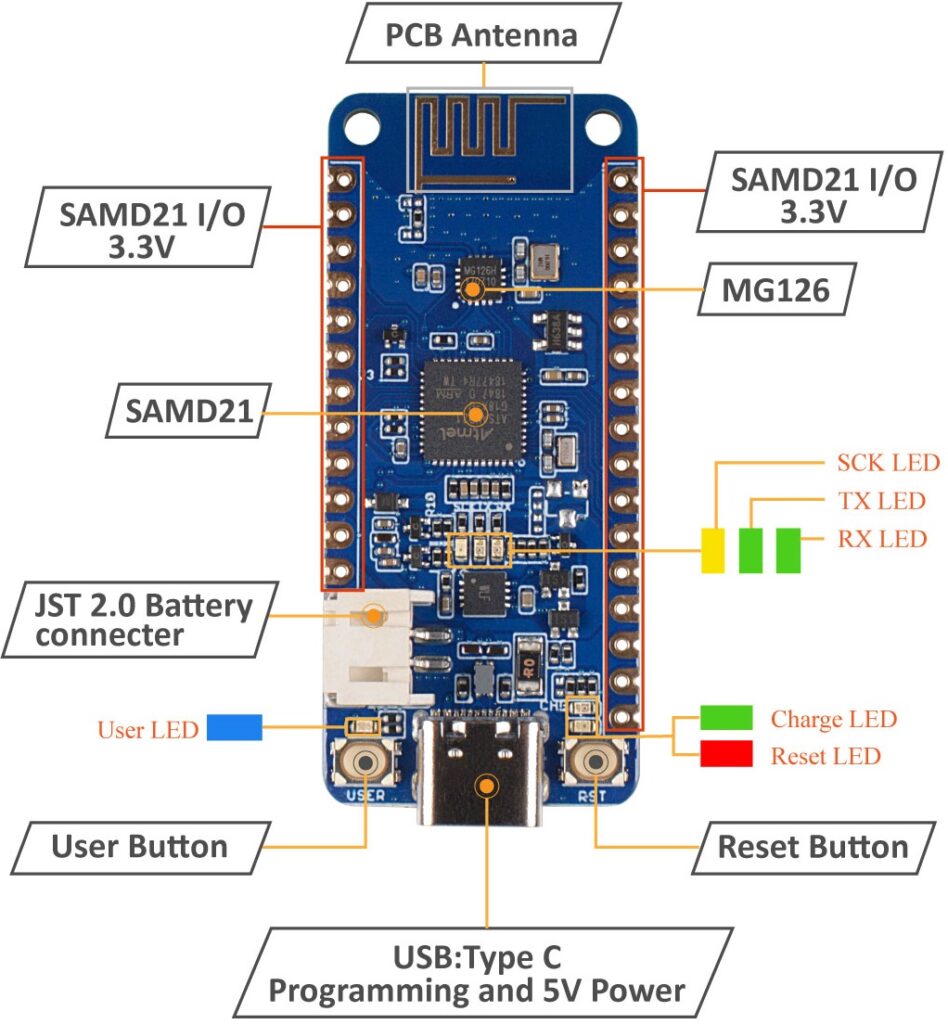

SPIDER Automation Seeed Studio Wio Lite MG126 is a cost-effective, feather-compatible development board built around the SAMD21 microcontroller and equipped with an onboard MG126 Bluetooth module. The core SAM D21 is a high-performance 32-bit ARM® Cortex®-M0+ microcontroller operating at 48 MHz, while the MG126 functions as a dedicated 2.4GHz single-mode Bluetooth low energy transceiver. Sharing the same core architecture as the Arduino Zero and matching the widely adopted Adafruit Feather form factor, this board offers exceptional expandability and direct compatibility with existing Arduino libraries and shields.

Engineered for portable and low-power IoT applications, the board breaks out the 3.3V I/O resources of the SAM D21, providing 14 digital pins, 6 analog input channels, 1 UART port, 1 I2C port, and an ICSP header. Modernizing connectivity, it features a reversible USB Type-C interface for data transmission and power, alongside a JST2.0 Li-Po battery connector supporting 3.7V to 4.2V rechargeable cells. The MG126 Bluetooth core communicates with the SAMD21 via high-speed SPI (up to 4Mbps) and features configurable packet-handling engines, adjustable TX power, and integrated channel filtering for reliable wireless operation up to a 10-meter range.

Key Features

• SAMD21 ARM® Cortex®-M0+ MCU: 32-bit processor operating at 48 MHz with 256 KB Flash memory and 32 KB SRAM.
• MG126 2.4GHz Bluetooth Core: Ultra-low-power BLE transceiver supporting 1Mbps air data rate and programmable output power (-28 to +4 dBm).
• Arduino Zero & Adafruit Feather Compatibility: Standardized pinout and core architecture for effortless integration with existing shields and sensors.
• Modern USB Type-C Interface: Reversible connector utilized for power supply, sketch uploading, and serial debugging.
• Li-Po Battery Management: Onboard JST2.0 power port for 3.7V / 4.2V rechargeable lithium-polymer batteries for portable deployments.
• High-Speed SPI Communication: Direct connection between the MG126 Bluetooth core and SAMD21 MCU operating at up to 4 Mbps.
• Comprehensive I/O Breakout: 14 digital I/O pins, 6 analog input channels, UART, I2C, and ICSP programming header.

Benefits

• Feather Ecosystem Integration: Leverage hundreds of existing Adafruit Feather wings and modular sensor shields out of the box.
• Ultra-Low Power Efficiency: Designed for battery-operated wireless sensor nodes requiring extended field deployment times.
• Compact & Lightweight Footprint: Weighing just 8 grams, it fits easily into miniature wearable enclosures and mobile prototypes.
• Plug-and-Play USB-C Convenience: Modern reversible connection eliminates plug orientation hassle during development and field programming.

Applications

• Wearable Health & Fitness Trackers: Compact wireless telemetry devices communicating data to smartphones via Bluetooth.
• Smart Home IoT Sensor Nodes: Battery-powered environmental monitors, temperature loggers, and motion detectors.
• Portable Wireless Gadgets: Handheld remote controls, BLE beacons, and localized automation controllers.
• Embedded Systems Education: University and maker labs teaching ARM Cortex-M0+ programming and wireless IoT prototyping.
• Robotics Telemetry: Wireless command and status feedback links for small mobile robots and rovers.

Package Includes

• 1 x Seeed Studio Wio Lite MG126 Development Board (SAMD21 ARM Cortex-M0+ with MG126 2.4GHz Bluetooth Module)

Technical Specifications
