Description
The GX12-3 3-Pin Aviation Audio Cable Connector Kit is engineered to provide secure, robust, and dependable connections for professional audio, instrumentation, aviation, navigation, and electronic data systems. Featuring a compact 12mm threaded mounting hole diameter, this circular connector offers exceptional mechanical stability in demanding cabling environments.
Rated for 5A continuous current at 125V AC with a maximum voltage handling capacity of up to 400V, this 3-pin female jack ensures reliable signal and low-power transmission. Built with rugged coupling hardware, it is an ideal choice for custom electronics, sensor wiring, communication setups, and low-voltage power distribution.
Note: This package includes a 3-pin female aviation jack connector. Ensure proper wire stripping, pin soldering, and cable strain relief are applied during assembly to maintain secure mechanical and electrical integrity.
Key Features
- Secure Threaded Coupling: Features a robust screw-locking mechanism that prevents accidental disconnection from vibrations or pulling forces.
- 3-Pin Configuration: Ideal for multi-conductor signal, data, or low-voltage power lines in electronic equipment.
- Compact 12mm Diameter: Standard panel cutout and plug housing size optimized for space-constrained installations.
- High Voltage Rating: Designed to safely handle maximum working voltages up to 400V AC/DC.
- Reliable Current Capacity: Rated for continuous current loads up to 5A for standard electronic and audio devices.
- Durable Build Quality: Precision-manufactured housing ensures long-lasting mechanical durability and wear resistance.
- Versatile Cable Interface: Designed for seamless integration into custom wiring harnesses, cables, and panel mounts.
Benefits
- Prevent Accidental Disconnections: Threaded locking ring design locks the plug securely in place, even under severe mechanical vibration.
- Ensure Clean Signal Transfer: Low-resistance pin contacts maintain stable electrical continuity for sensitive audio and instrumentation signals.
- Protect Wiring Installations: Robust metal and insulated housing protects internal solder joints from environmental wear.
- Space-Saving Footprint: Compact 12mm form factor fits easily into tight control panels and portable equipment housings.
Applications
- Professional Audio & Lighting: Signal lines, microphone cables, and low-voltage stage equipment hookups.
- Aviation & Navigation Instruments: Secure data and control signal routing for specialized electronics.
- CNC & Industrial Machinery: Low-current sensor wiring, encoder lines, and modular control panel connections.
- DIY Electronics & Robotics: Custom control pendants, telemetry links, and modular power/data distribution harnesses.
Package Includes

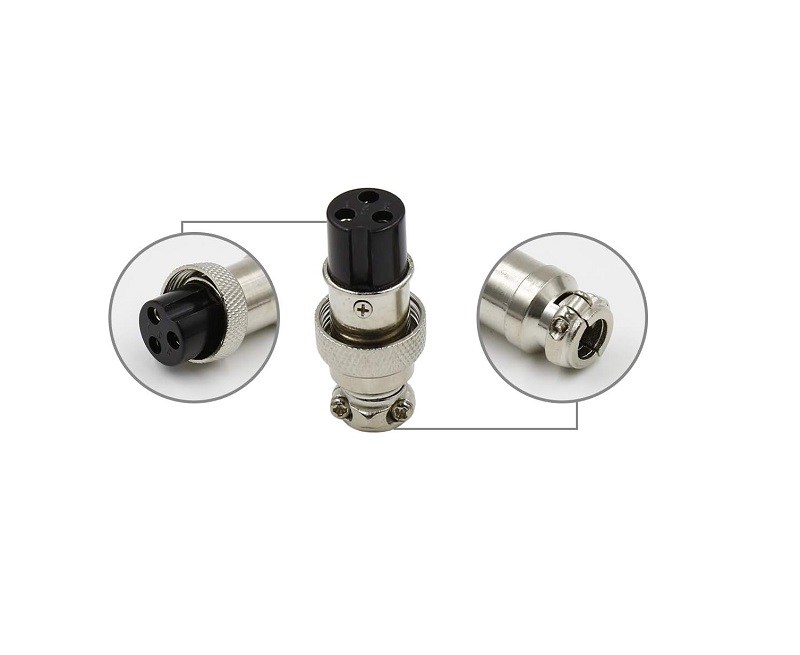

- 1 x 3 Pins 12mm XLR Aviation Audio Female Jack Cable Connector (Model: GX12-3P.S.F)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Circular Aviation Audio & Signal Connector |
| Manufacturer | QS |
| Model Number | GX12-3P.S.F |
| Connector Type | Female Jack / Cable Connector |
| Gender | Female |
| Number of Pins | 3 Pins |
| Panel / Hole Diameter | 12 mm |
| Rated Current | 5 Amps |
| Max Voltage Capacity | 400 Volts (AC/DC) |
| Net Weight / Shipping Weight | ~8 g / 0.01 kg |
| Shipping Dimensions | 12 cm × 8 cm × 2 cm |
