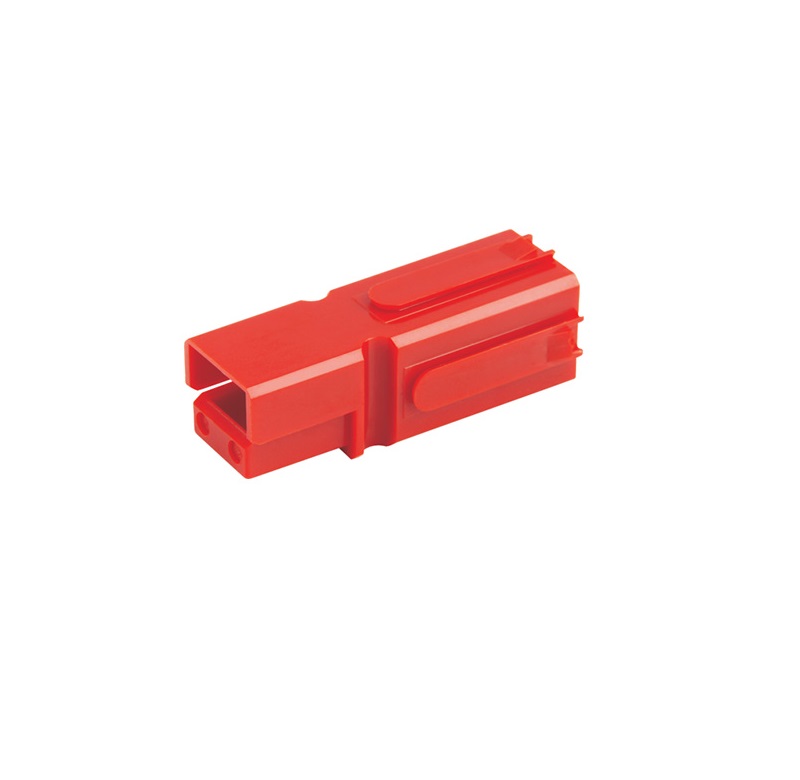

PA45H Red Multipole High-Current Power Plug Connector (<75A, 2200V AC, 6AWG-12AWG)

Description

The PA45H Red Multipole Power Plug Connector is engineered for heavy-duty electrical applications, high-capacity energy storage systems, and industrial power distribution. Built with rugged, flame-retardant polycarbonate (PC) insulation featuring a UL94 V-0 rating, this connector is designed to withstand extreme environmental stress while providing exceptional electrical safety and thermal stability.

Withstanding voltages up to 2200V AC and supporting continuous current loads up to 75A, this multipole power plug accommodates versatile wire gauges from 6AWG to 12AWG. Operating reliably across a temperature range of -20°C to 105°C with minimal electrical resistance, it ensures secure, low-loss power transmission for demanding high-power setups in RC vehicles, batteries, and energy systems.

Note: This package includes the multipole power connector housing and contacts. Ensure proper wire stripping, crimping, and insulation methods are used to match the 6AWG-12AWG wire gauge range securely.

Key Features

• QS Connector Design: Engineered to provide a secure, snug, and efficient fit for high-performance power transfer.
• Low Electrical Resistance: Minimizes voltage drop and energy loss for stable, highly efficient power delivery.
• Versatile Applications: Highly adaptable for RC vehicles, energy storage systems, batteries, and industrial power setups.
• High-Current Capacity: Handles continuous current loads up to 75A for demanding power environments.
• Superior Voltage Withstanding: Certified to handle up to 2200V AC withstanding voltage for extreme electrical safety.
• UL94 V-0 Flame Retardant PC Housing: High-grade polycarbonate insulation material offers exceptional fire resistance and physical durability.
• Wide Wire Compatibility: Designed to accommodate wire gauges ranging from 6AWG to 12AWG for flexible cabling.
• Reliable Temperature Range: Stable operational performance across a wide thermal range from -20°C to 105°C.

Benefits

• Protect Sensitive Electronics: Prevents high-amp connection anomalies and maintains stable voltage distribution across power systems.
• Minimize Contact Wear: Durable housing and robust contact design prevent terminal pitting over frequent connection cycles.
• Prevent Thermal Runaway: Low-resistance design minimizes internal heat generation during peak power draws.
• Ensure Safe Handling: Built-in flame-retardant safety features reduce the risk of electrical hazards in high-voltage setups.
• Long-Lasting Durability: Heavy-duty materials resist mechanical fatigue, vibrations, and harsh environmental conditions.

Applications

• Energy Storage Systems (ESS): Safe power routing for lithium battery storage banks and modular power walls.
• Electric Vehicles & Mobility: Power connections for electric commercial vehicles, scooters, and custom builds.
• RC & Hobby Vehicles: Reliable high-current main battery disconnections for large-scale RC models and applications.
• Renewable Solar Generators: Reliable high-current interfaces for solar inverter and charge controller setups.
• Backup Power Systems: Secure main power disconnections for UPS and backup generator systems.

Package Includes

• 1 x Power Pole Connector PA75 Power plug Red (Model: PA45H-R.T)
