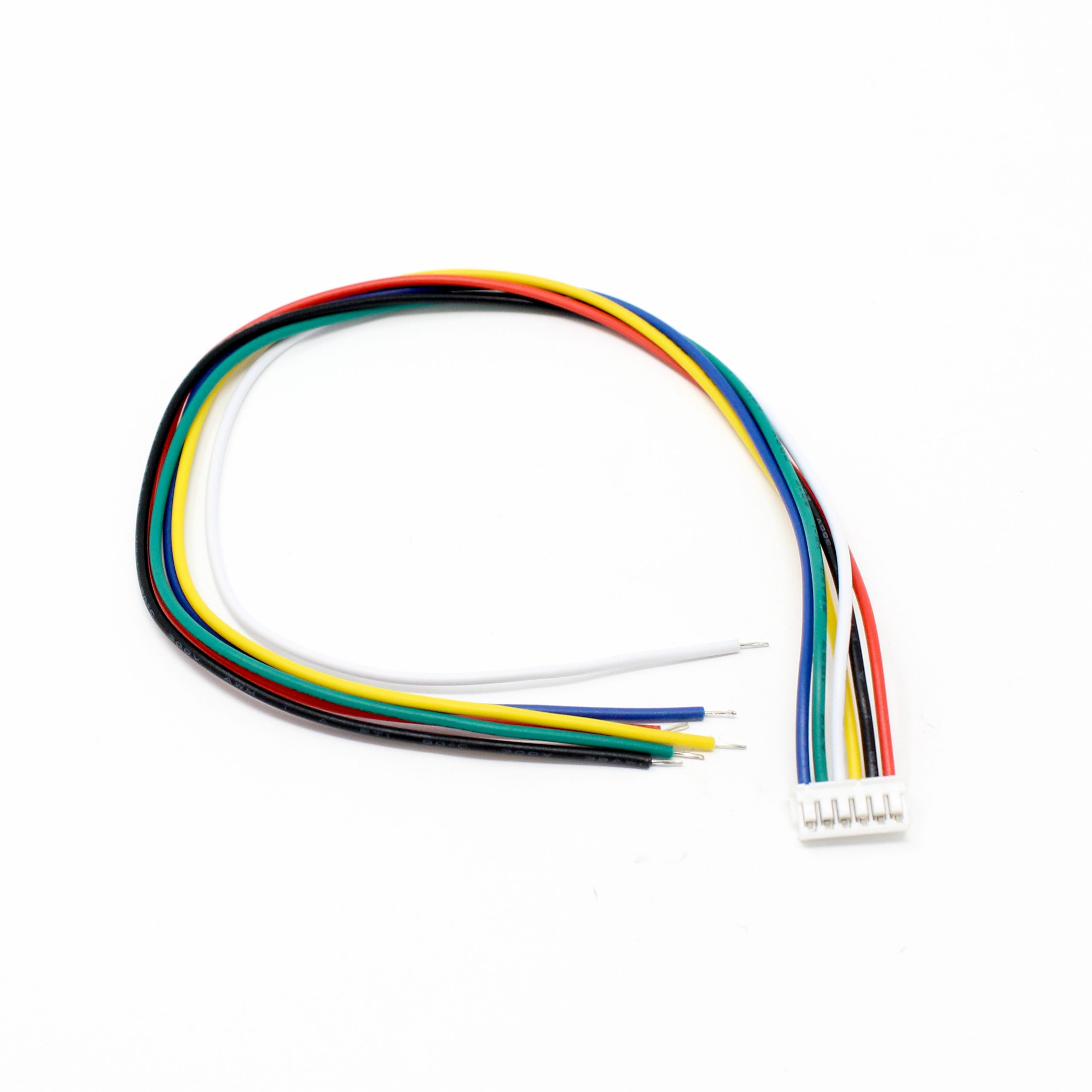

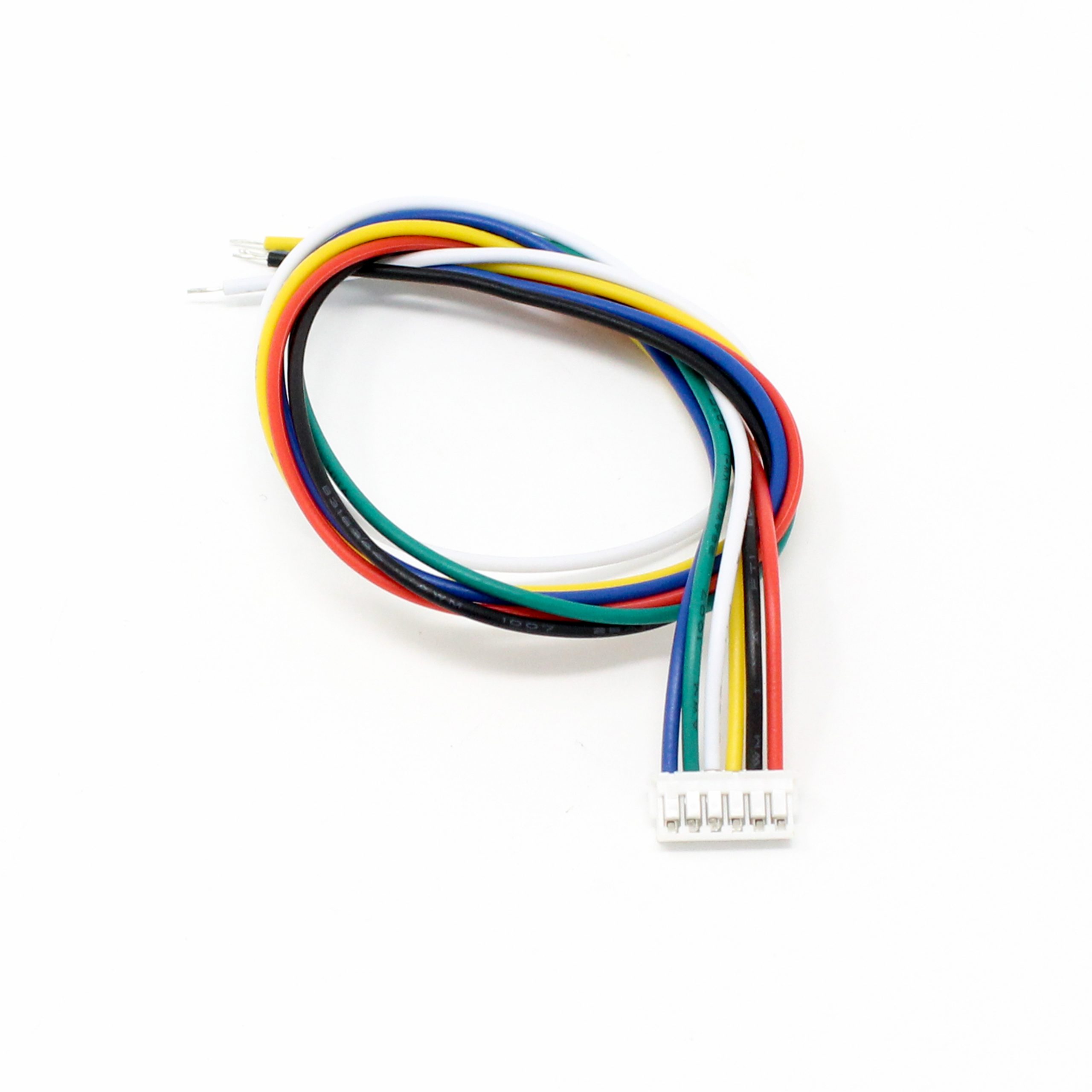

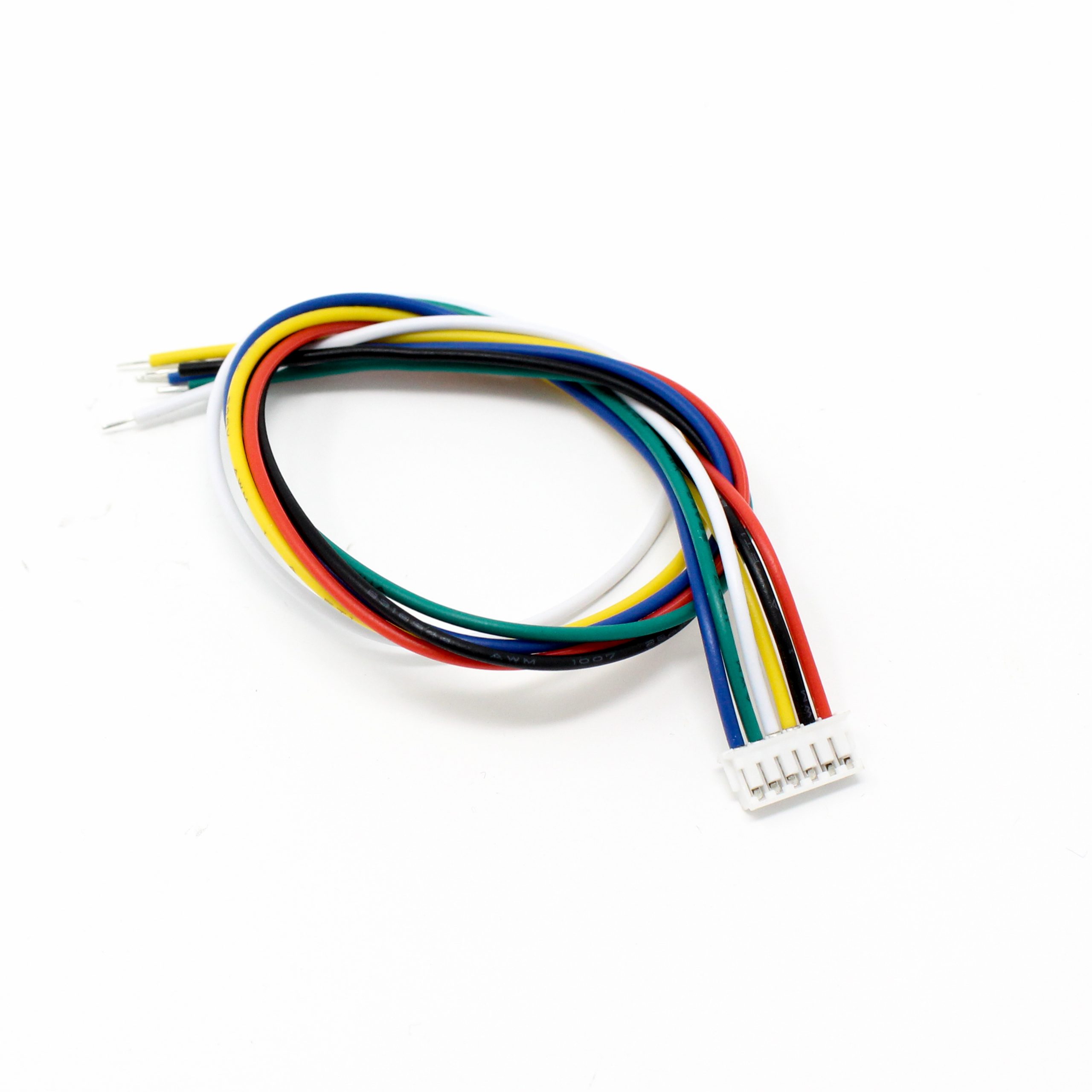

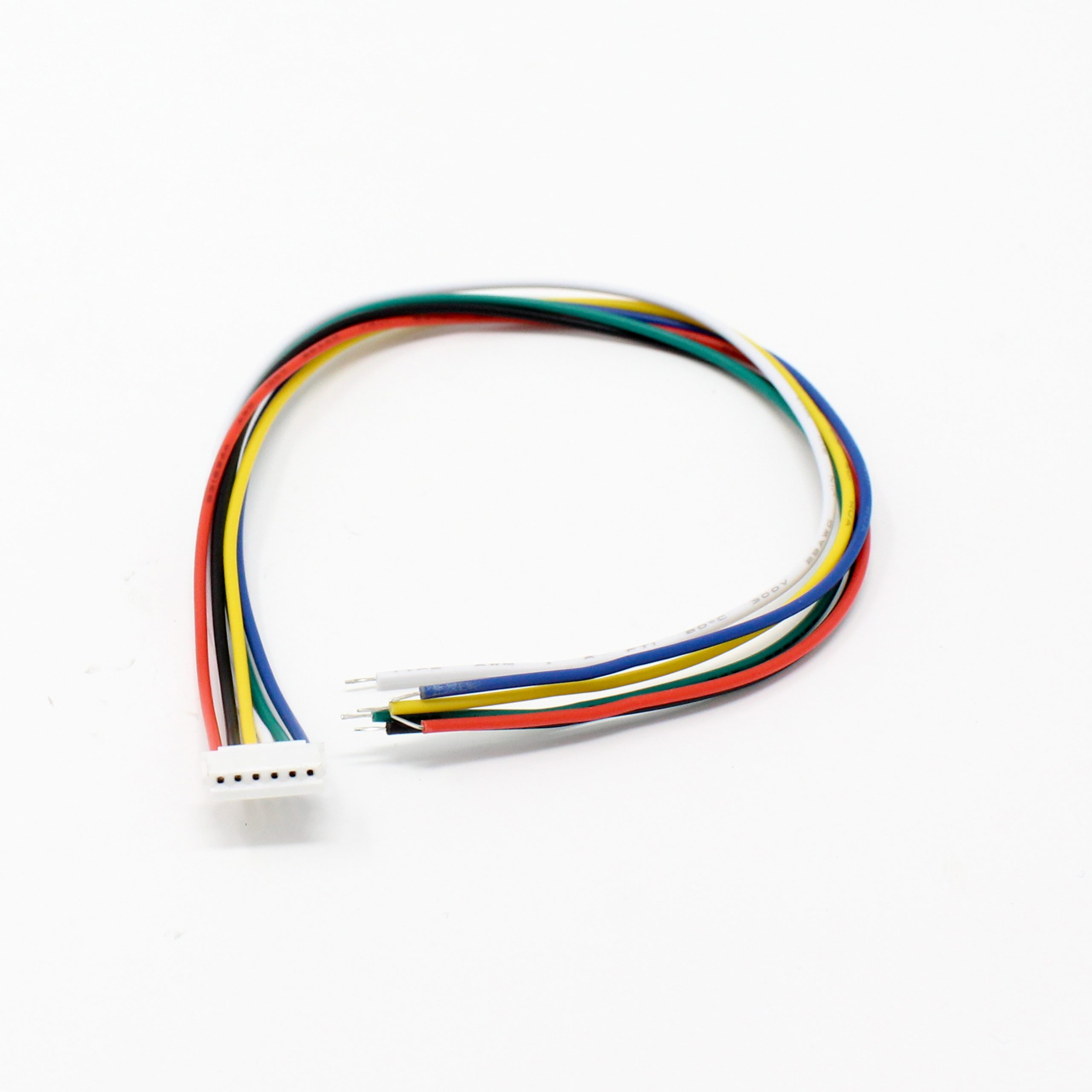

JST SH 6-Pin Micro Connector with 200mm Multicolored Wires (1.15mm Pitch, 24AWG)

Description

The JST SH 6-Pin Connector with 200mm wires is a micro-scale, high-precision cabling assembly designed for compact electronics, multi-rotor drones, and flight controller peripherals. Featuring an ultra-fine 1.15mm pin spacing (pitch), this female connector comes pre-attached to 200mm multicolored 24AWG wires that terminate to bare stripped ends for easy soldering or custom pin insertion.

This cable assembly is a staple for hobbyists and engineers working with advanced flight controllers, GPS modules, telemetry units, and micro-robotics. Its compact form factor and reliable micro-pins ensure secure data and signal transmission in space-constrained installations.

Note: This package includes one JST SH 6-pin female connector with a 200mm multi-wire harness. Ensure correct pinout alignment and color-coding match your target device before soldering or plugging into ports.

Key Features

• Ultra-Compact 1.15mm Pitch: Micro-spacing design tailored for modern miniaturized electronics and tight board layouts.
• 6-Pin Multi-Wire Harness: Integrates six distinct lines for multi-signal data, communication protocols, or sensor hookups.
• Pre-Attached 200mm Leads: Saves assembly time with factory-crimped pins and flexible multicolored wires terminating to bare ends.
• 24AWG Wire Gauge: Robust individual wire thickness ensures stable electrical continuity and mechanical durability.
• Drone & GPS Essential: Highly popular among multi-rotor hobbyists for wiring GPS units, compasses, and drone telemetry modules.

Benefits

• Simplify Micro-Wiring: Eliminates the tedious process of crimping micro JST pins by hand, providing a ready-to-use plug-and-wire solution.
• Ensure Secure Data Transfer: Precision-molded micro housing and clean contact points maintain stable signal integrity for sensitive sensors.
• Save Space in Builds: Low-profile connector housing fits easily into cramped drone frames, enclosures, and small robotics chassis.

Applications

• Multi-Rotor Drones & UAVs: Connection harnesses for GPS modules, telemetry transmitters, and flight controllers (e.g., Pixhawk/Betaflight peripherals).
• Micro-Robotics & Sensors: Compact data and communication lines for smart sensors, LIDAR units, and I2C/UART bus devices.
• DIY Electronics & Prototyping: Custom interface cabling for miniature development boards and peripheral modules.

Package Includes

• 1 x JST SH 6-Pin Female Connector with 200mm Multicolored Wires

Specifications
