Description

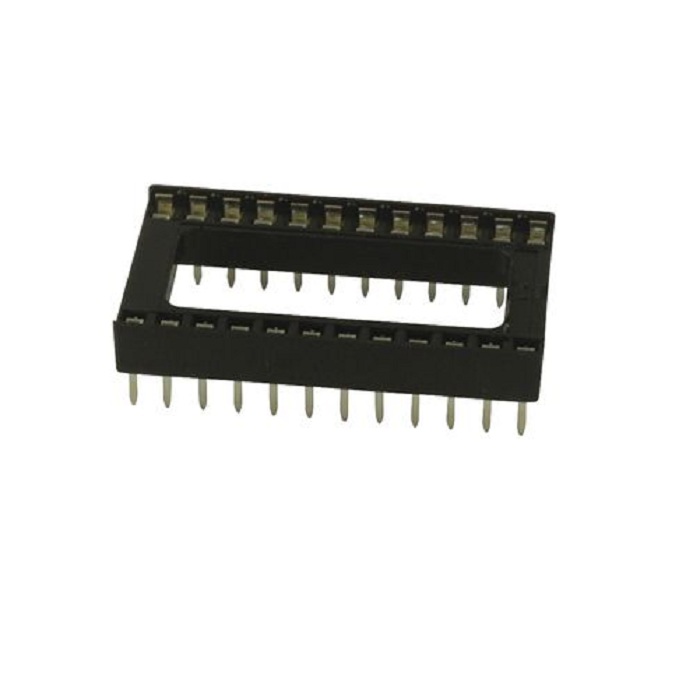

The 24 Pin Wide DIP IC Socket Base Adaptor (Pack of 5) is a high-quality PCB mount IC socket designed for securely mounting and replacing 24-pin wide Dual In-line Package (DIP) integrated circuits without directly soldering the IC onto the PCB. By using an IC socket, temperature-sensitive and high-value ICs can be safely installed, removed, replaced, or reprogrammed without exposing them to excessive soldering heat, helping extend component life and simplifying maintenance.
Manufactured with phosphor bronze contacts and tin-plated terminals, this JDEC-compliant wide DIP socket offers reliable electrical conductivity, excellent mechanical strength, and long service life. The molded orientation notch ensures proper IC alignment during installation, while the precision contact design provides secure retention with smooth insertion and extraction. It is an ideal solution for embedded systems, industrial electronics, microcontroller programming, PCB prototyping, laboratory testing, electronic repair, and OEM manufacturing.
Features
- High-quality 24-pin wide DIP IC socket adaptor.
- Designed for direct through-hole PCB mounting.
- Compatible with standard 24-pin wide DIP integrated circuits.
- JDEC compliant for excellent compatibility.
- Molded orientation notch for correct IC installation.
- Protects temperature-sensitive ICs during soldering.
- Allows quick IC replacement without PCB rework.
- Phosphor bronze contacts provide stable electrical conductivity.
- Tin-plated contacts improve corrosion resistance and durability.
- Secure IC retention with low insertion and extraction force.
- Suitable for repeated IC insertion and removal.
- Compact, lightweight, and durable construction.
Benefits
- Prevents expensive ICs from heat damage during soldering.
- Simplifies programming, testing, and IC replacement.
- Reduces maintenance time and repair costs.
- Improves PCB serviceability and long-term reliability.
- Provides stable electrical contact for dependable circuit performance.
- Ideal for prototype development as well as production applications.
Applications
- Microcontroller development boards
- Embedded system design
- Industrial automation equipment
- PLC and control systems
- EPROM and EEPROM programming
- PCB prototyping
- Electronic product development
- OEM PCB manufacturing
- Engineering laboratories
- Electronics repair and servicing
- Instrumentation equipment
- Communication devices
- Consumer electronics
- Educational electronics laboratories
- DIY electronics projects
- Circuit testing and debugging
- Research and development projects
- Removable IC mounting applications
Package Includes
- 5 × 24 Pin Wide DIP IC Socket Base Adaptors
Specifications
| Parameter | Value |
|---|---|
| Product Type | 24 Pin Wide DIP IC Socket Base Adaptor |
| Package Type | Wide DIP (Dual In-line Package) |
| Number of Pins | 24 |
| Mounting Type | Through Hole PCB Mount |
| PCB Mounting | Direct PCB Mount |
| Standard Compliance | JDEC Compliant |
| Current Handling Capacity | 1A |
| Number of Contact Points | 24 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Operating Temperature | -25°C to +85°C |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Maximum Insertion Force | 340g per Contact |
| Maximum Extraction Force | 80g per Contact |
| Length | 30mm |
| Width | 17mm |
| Height | 4mm |
| Weight | 1g (Approx. Each) |
| Package Quantity | 5 Pieces |
| Shipping Weight | 0.005kg |
| Shipping Dimensions | 6 × 4 × 2cm |
