Description

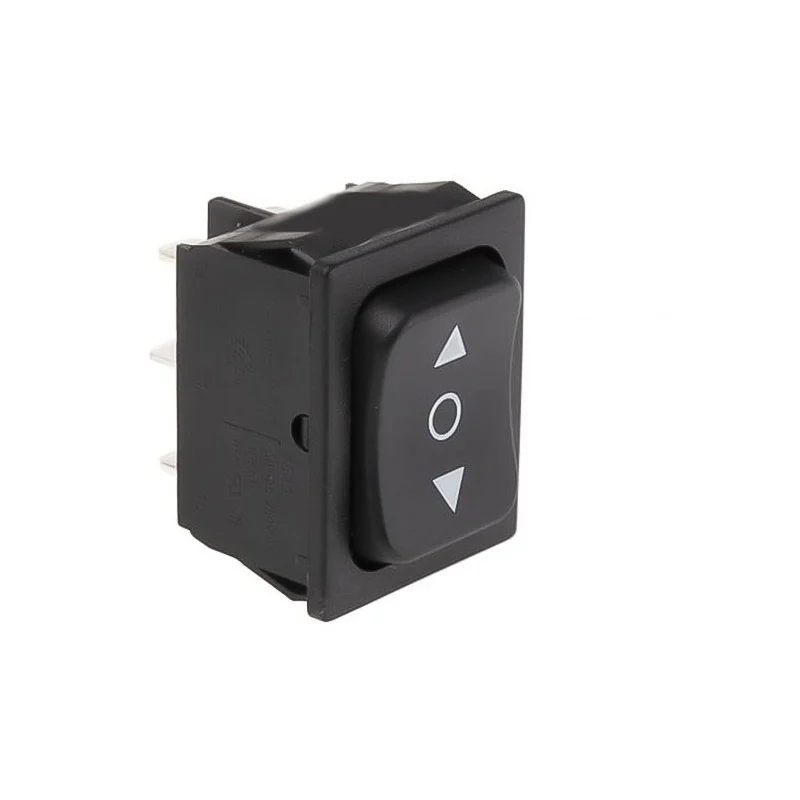

The 16A 250V AC DPDT Momentary Rocker Switch is a heavy-duty, high-capacity control component designed for demanding electronics, automotive systems, and industrial machinery. Featuring a DPDT (Double-Pole, Double-Throw) structure, this switch offers robust performance for applications requiring precise control. Its momentary ON-OFF-ON action makes it an ideal choice for tasks like motor direction control (forward/reverse), horn activation, or other operations where a temporary, spring-returned state is required.
Designed for professional-grade power management, this switch is rated for 16A at 250VAC, ensuring reliability in high-current environments. It features an integrated snap-in tab design, allowing for a secure, screwless installation directly into your project enclosure. With a durable build rated for up to 100,000 cycles, this switch provides the longevity and tactile precision needed for robotics, custom control panels, and portable electronic equipment.
Key Features
- Design: DPDT (Double-Pole, Double-Throw) configuration
- Action: Momentary ON-OFF-ON (spring-return) for precise operational control
- Mounting: Snap-in “tab” design for fast, tool-free panel installation
- Capacity: Heavy-duty rating of 16A at 250VAC for high-load projects
- Durability: Engineered for an extensive lifespan of 50,000–100,000 cycles
- Versatility: Compact body fits standardized panel cut-outs efficiently
Technical Benefits
- Momentary action is essential for applications requiring temporary contact, such as motor reversing or signal activation
- DPDT structure allows for the simultaneous control of two independent circuits or polarity switching
- Snap-in tabs significantly reduce assembly time and eliminate the need for extra mounting hardware
- Wide operating temperature range (-20°C to +85°C) ensures stable performance in diverse conditions
- Robust plastic housing provides excellent heat resistance and structural integrity
Applications
- Robotics & Automation: Forward/reverse motor control and temporary signal triggers
- Automotive & Marine: Horn buttons, winches, and auxiliary equipment control
- Industrial: Control interfaces for heavy-duty machinery and water dispensers
- DIY Projects: Custom control boxes, test benches, and industrial-grade prototypes
- Electronics: General-purpose momentary power management and circuit routing
Package Includes
- 1 x 16A 250V AC DPDT Momentary ON-OFF-ON Rocker Switch
Specifications
| Parameter | Specification |
|---|---|
| Switch Type | Rocker Switch (DPDT) |
| Switching Mode | ON-OFF-ON (Momentary) |
| Max Rating | 16A @ 250V AC |
| Panel Cut-Out | 25.2 x 21 x 16 mm |
| Dimensions | 30 x 25 x 18 mm |
| Switching Life | 50,000 – 100,000 Cycles |
| Operating Temp | -20°C to +85°C |
