Description

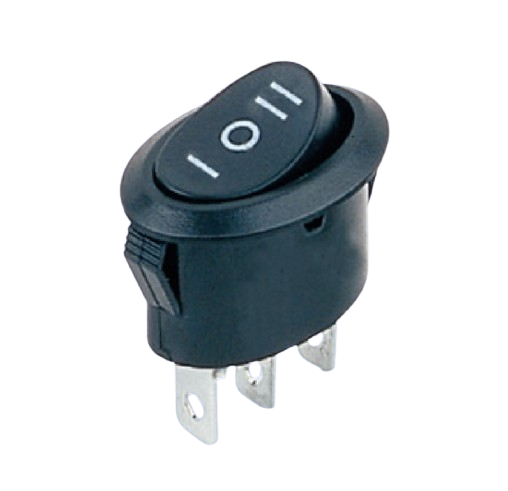

The KCD105-026 Rocker Switch (MPN: KCD105-026) is a versatile three-position (third gear) switch engineered for flexible circuit control. Designed to handle moderate power loads, this switch is rated for 125V AC at 10A, making it an excellent choice for switching modes, direction, or multi-stage power control in various electronic devices and industrial systems.
Constructed for reliability, the KCD105-026 operates effectively in environmental temperatures ranging from -25°C to 70°C. It ensures efficient power transmission with low contact resistance (≤0.05Ω) and maintains high safety standards with an insulation resistance of ≥100MΩ and a withstand voltage rating of 500V AC. With a tested mechanical lifespan of over 10,000 cycles, this switch provides the durability needed for consistent long-term performance.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Three-Position Switching: Features a versatile 3-gear configuration, ideal for ON-OFF-ON or multi-stage control applications.
- Reliable Power Rating: Rated for 125V AC at 10A, suitable for a wide variety of electronic appliances and control circuits.
- Durable Thermal Range: Reliable operation maintained in environmental conditions from -25°C to 70°C.
- High Electrical Safety: Built with robust insulation (≥100MΩ) and a 500V AC withstand voltage for secure circuit isolation.
- Efficient Connectivity: Minimal contact resistance (≤0.05Ω) ensures clean signal transmission and reduces heat generation.
- Long-Lasting Performance: Engineered for a minimum of 10,000 operational cycles, providing consistent reliability over the life of your equipment.
Benefits
- Control Flexibility: The third-gear (three-position) design allows for complex switching logic, such as reversing motor direction or selecting between two different power sources.
- Safety and Durability: High withstand voltage and insulation ratings provide an essential safety buffer for your electrical systems.
- Maintenance Efficiency: The 10,000-cycle lifespan ensures that your equipment remains operational for extended periods without needing component replacement.
- Compact Integration: Designed for easy installation into existing control panels or custom hardware enclosures.
- Stable Power Flow: Low contact resistance supports efficient energy transfer, contributing to the overall stability of your device’s electronics.
Applications
- Electronic Control Panels: Ideal for mode selection or power-stage toggling in professional audio and home automation gear.
- Motor Control: Suitable for reversing or speed-stage switching in small industrial motors or fans.
- Custom Prototyping: A fundamental three-position component for hardware engineers building specialized diagnostic or control equipment.
- Portable Instrumentation: Reliable interface for power management and mode selection in test equipment.
- Custom Electronics: Perfect for DIY projects requiring versatile ON-OFF-ON switching logic.
Package Includes
- 1 x ROCKER SWITCH-KCD105-026 (Third gear/3-Position)
Specifications
| Parameter | Specification |
|---|---|
| Model | KCD105-026 |
| Switch Type | 3-Position (Third Gear) |
| Rated Voltage | 125V AC |
| Rated Current | 10A |
| Contact Resistance | ≤ 0.05Ω |
| Insulation Resistance | ≥ 100MΩ |
| Withstand Voltage | 500V AC (50Hz)/min |
| Mechanical Lifespan | 10,000 Cycles |
| Operating Temperature | -25°C to 70°C |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 5 × 2 cm |
