Description
The Illuminated Rocker Switch is a durable and high-performance power control switch designed for electrical, automotive, industrial, and DIY electronic applications. It features an inbuilt indicator light that provides clear visibility of the switch status during operation.
This switch uses a Double Pole Single Throw (DPST) configuration with four terminals, allowing simultaneous control of two separate circuits in a simple ON/OFF operation. The snap-in mounting design with locking tabs enables quick and secure installation without requiring screws or additional hardware.
Built for heavy-duty performance, the KCD4 rocker switch offers reliable switching operation with a long service life of up to 50,000 cycles. Its compact design, easy operation, and illuminated functionality make it suitable for a wide range of power control applications.
The switch is widely used in home appliances, automotive systems, industrial control panels, power supplies, DIY electronics projects, audio systems, medical equipment, and various electronic devices.
Features
- DPST (Double Pole Single Throw) ON/OFF switch configuration
- Inbuilt illumination indicator for status visibility
- Heavy-duty switch design for reliable performance
- Long operational life up to 50,000 cycles
- Snap-in mounting for easy installation
- No screws or nuts required
- Compact and durable construction
- Easy and smooth operation
- Suitable for AC and DC power control applications
- Widely used in industrial, automotive, and DIY electronics projects
Applications
- HVAC equipment
- Home appliances
- Security systems
- Vacuum cleaners and floor care equipment
- Dehumidifiers and medical systems
- Audio amplifiers and power supply units
- Industrial control panels
- Horn button switch applications
- PC power switch and kill switch systems
- Car, boat, and vehicle electrical circuits
- Electronic DIY equipment
Package Includes

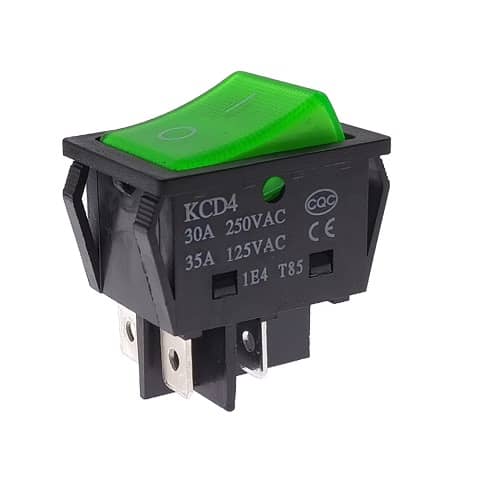

- 1 × 4 Pins 250V 12V UL Illuminated 30A Rocker Switch – Green
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Illuminated Rocker Switch |
| Switch Configuration | DPST (Double Pole Single Throw) |
| Rated Voltage | 250V AC / 12V DC |
| Rated Current | 30A |
| Number of Pins | 4 Pins |
| Indicator Light | Yes (Green) |
| Mounting Type | Snap-in Panel Mount |
| Operating Life | Up to 50,000 cycles |
| Body Material | High-Quality Plastic |
| Application Type | Power Control Switching |
